Generac Power Systems Guardian 004188-1 Owner's Manual page 42

2
12
7
ITEM PART NO.
1 020689
2 060366
3 059933
4 080761
5 059939
6 075546A
7 036434
8 022259
9 022129
10 036449
11 076032
12 039253
13 045771
14 0C3683
15 0A7215
40 Generac Power Systems, Inc.
®
Section 8 - Exploded Views and Parts
Guardian Liquid-cooled 15 kW, 20 kW and 25 kW Generators

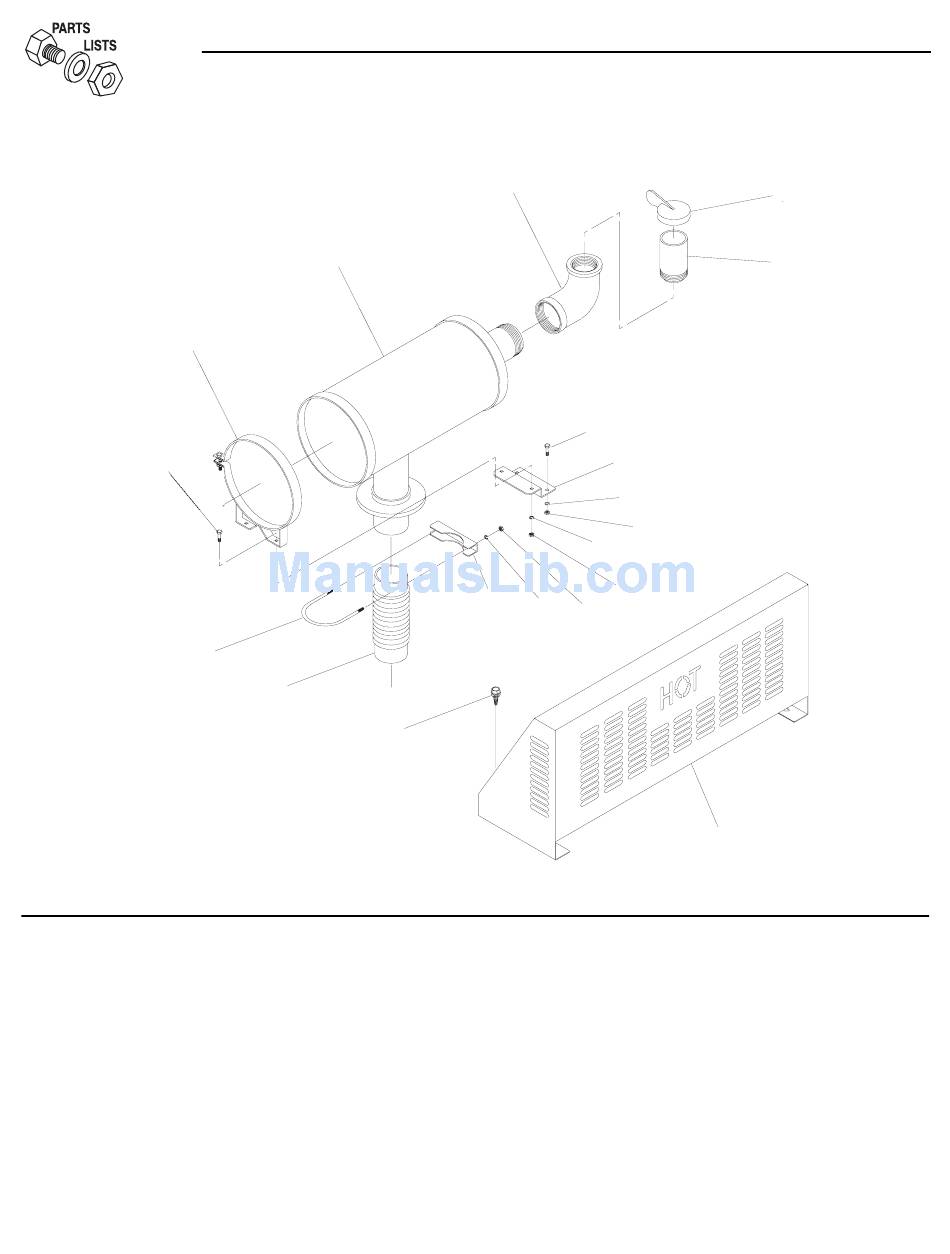

Exploded View – Muffler (15 & 20 kW) — Drawing No. A7618-B
1
6
15
QTY. DESCRIPTION
1 MUFFLER W/RAIN SHLD
1 MUFFLR STRAP 6IN DIA
1 ELBOW 90 DEG 2 NPT
1 NIPPLE TOE 2 NPT X 4.5 BLK IRON
1 RAIN CAP 2.37 I.D.
1 PIPE FLEX EXHAUST
1 BOLT U 5/16-18 X 2.09
2 NUT HEX 5/16-18 STEEL
6 WASHER LOCK M8-5/16
1 SADDLE 2 INCH
1 CHANNEL MUFFLER SUPPORT
4 SCREW HHC M8-1.25 X 20 G8.8
4 NUT HEX M8-1.25 G8 YEL CHR
1 GUARD MUFFLER (1.5L)
4 SCREW SW 1/4-20 X 5/8 N WA JS500
3
12
11
9
13
9
13
10
9
8
5
4
14
