Generac Power Systems Guardian 004188-1 Owner's Manual page 46

ITEM PART NO.
1 077483
2 038804D
3 038805B
4 0742600131
5 022131
6 046526
7 052213
8 059567
9 078121
10 022145
11 022129
12 022259
13 050331A
14 050331
15 075763
44 Generac Power Systems, Inc.
®
Section 8 - Exploded Views and Parts
Guardian Liquid-cooled 15 kW, 20 kW and 25 kW Generators

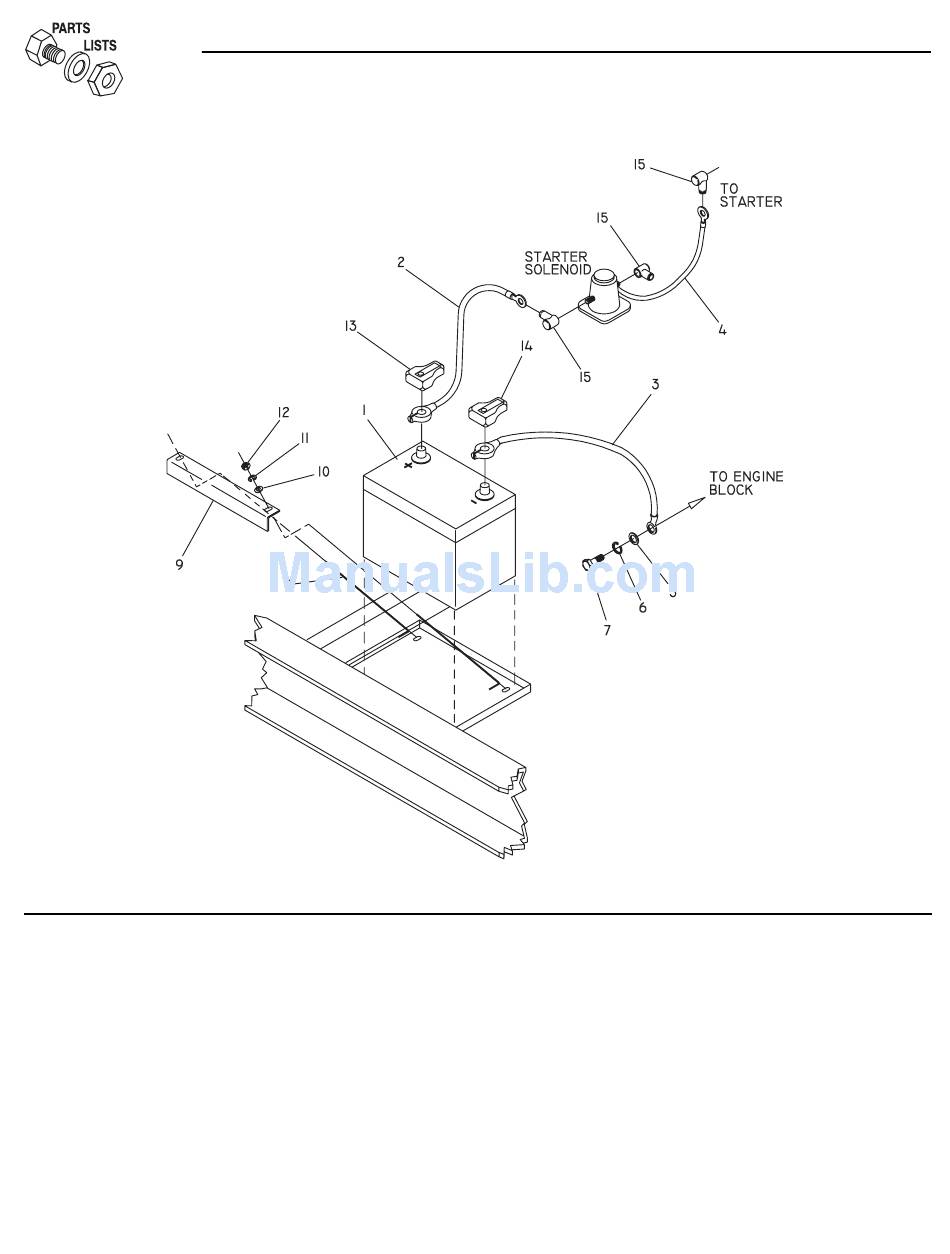

Exploded View – Battery — Drawing No. 098922-E
QTY. DESCRIPTION
1 BATT 12VDC 75-AH 26/26R
1 CABLE BATT RED #4 X 20.00
1 CABLE BATT BLK #4 X 23.00
1 ASSY,WIRE#16 RED 1.6
1 WASHER FLAT 3/8 ZINC
1 WASHER LOCK M10
1 SCREW HHC M10-1.25 X 20 G8.8
2 BOLT BATTERY HOLD DOWN
1 BAR BATTERY HOLDDOWN
2 WASHER FLAT M8-5/16 ZINC
2 WASHER LOCK 5/16
2 NUT HEX 5/16-18 STEEL
1 BATTERY POST COVER (RED+)
1 BATTERY POSTCOVER (BLACK-)
3 BOOT, BATTERY CABLE
