ITEM PART NO.
1 C2632
3 70936
4 70936C
5 39253
6 22145
7 22129
8 45771
9 71956
10 51730
12 57821
13 21991
14 27482
15 A2308
38 Generac Power Systems, Inc.
®
Section 8 - Exploded Views and Parts
Guardian Liquid-cooled 15 kW, 20 kW and 25 kW Generators

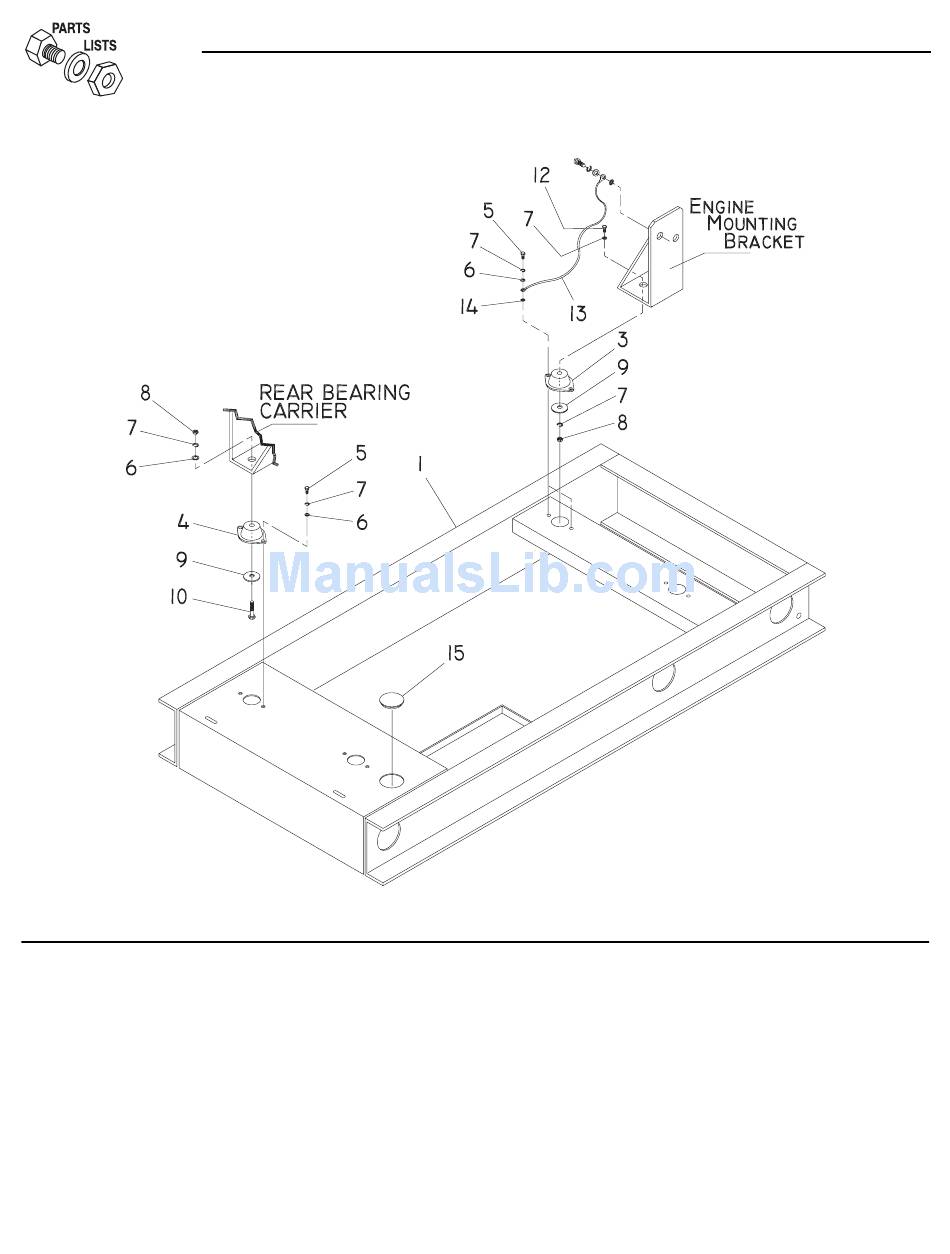

Exploded View – Mounting Base (15 & 20 kW) — Drawing No. A7187-A
QTY. DESCRIPTION
1 BASE, MOUNTING
2 ISOLATOR-VIBRATION
2 ISOLATOR, VIBRATION
8 CAPSCREW, HEX HEAD-M8-1.25 x 20MM
12 FLAT WASHER-M8
12 LOCK WASHER-M8
12 NUT, HEX-M8-1.25
4 WASHER, VIBRATION ISOLATOR
2 CAPSCREW, HEX HEAD-M8-1.25 x 60MM
2 CAPSCREW, HEX HEAD-M8-1.25 x 40MM
1 STRAP, GROUNDING
1 WASHER-STAR 5/16"
1 PLUG-BUTTON
