RAID Tower IX
Technical Support
If you need any assistance to get your unit functioning properly, please have your
product information ready and contact Addonics Technical Support at:
Hours: 8:30 am - 6:00 pm PST
Phone: 408-453-6212
Email: http://www.addonics.com/support/query/
T E C H N O L O G I E S
User Guide
(
RT93SNDHMS
www.addonics.com
)
v5.1.11
Advertisement
Table of Contents
Related Manuals for Addonics Technologies RT93SNDHMS
Summary of Contents for Addonics Technologies RT93SNDHMS

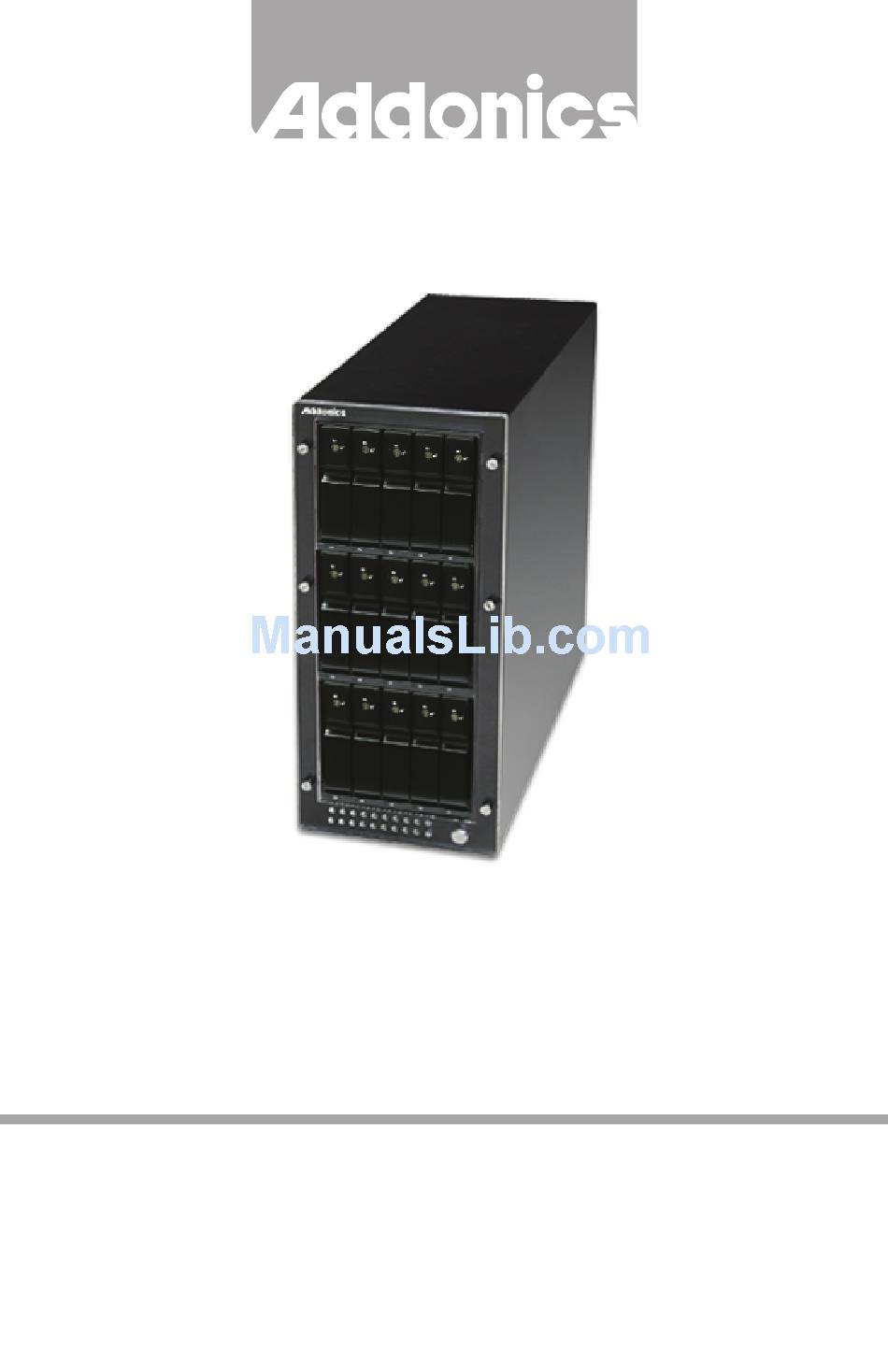

- Page 1 T E C H N O L O G I E S User Guide RAID Tower IX RT93SNDHMS www.addonics.com v5.1.11 Technical Support If you need any assistance to get your unit functioning properly, please have your product information ready and contact Addonics Technical Support at:...
- Page 2 Removing Cover of RAID Tower Back Loosen the 5 screws at the back of the tower for the cover using a Philips screwdriver. Lift the cover and pull slightly toward the rear of the tower to disengage and remove. Mini SAS Connector Array 1 Array 2...
- Page 3 Installing drives into the RAID Tower XIII Be sure the lock on each drive doors is in an unlock position. If not use the key that comes with the Disk Array to unlock the drive door. Pull on the door lever to swing open the drive door all the way.
- Page 4 Setting or Modifying the RAID Mode NOTE: Setting or modifying the RAID mode destroys all data. Follow the procedure for resetting the RAID Mode. Power down the unit and set the dip switch to the desired RAID Mode. While holding the SET button with a ballpoint pen, turn the unit on. A long beep will sound from the Port Multiplier.
- Page 5 RAID Mode Switches M2, M1, M0 (SW1:3 – SW1-5) The RAID Mode switches define what type of RAID will be initialized when the unit is powered up while the RAID Mode button is held down. Each type of RAID has different properties and requirements, as follows: Dipswitch Position Raid Mode JBOD (Individual...
- Page 6 RAID 1 or 10 (Mirror set, Stripe of mirror sets) Number of drives: 2 (RAID 1) or 4 (RAID 10). Unit capacity: size of one member (RAID 1) or size of two members (RAID 10). Spares: yes – if EZ mode is not disabled and 3 (RAID 1) or 5 (RAID 10) drives are present, the array will be initialized with a spare.
- Page 7 CLONE mode works the same way as RAID 1, by maintaining a complete copy of the entire set of data on each drive. LARGE (Spanned set) Number of drives: at least 2 Unit capacity: 100% of all drives together regardless of differences in size Spares: no Fault tolerance: cannot withstand the loss of any drives without losing data.
- Page 8 CONTACT US www.addonics.com Phone: 408-573-8580 Fax: 408-573-8588 Email: http://www.addonics.com/sales/query/...
