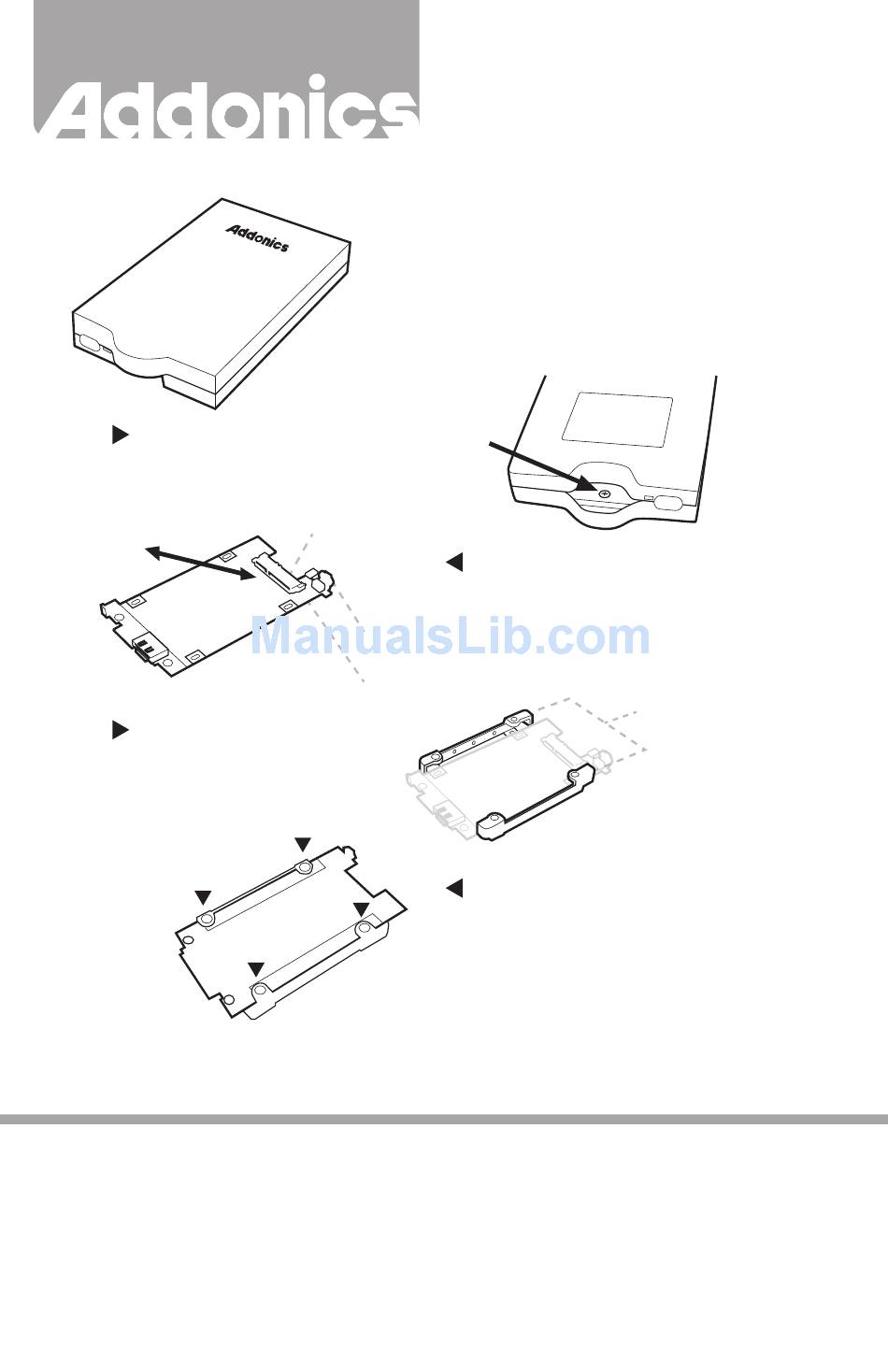

Step 1
Separate the top from the bottom cover of
the drive enclosure by loosening the screw.
HD
Step 3
Wrap the shock absorbers around
the hard drive and PCB.
Bottom of PCB
Technical Support
If you need any assistance to get your unit functioning properly, please have your
product information ready and contact Addonics Technical Support at:
Hours: 8:30 am - 6:00 pm PST
Phone: 408-453-6212
Email: http://www.addonics.com/support/query/
User Guide
Ruby eSATAp ExDrive
(REDESP , REDESPU3)
Installing your HD to the
SATA Connector
Step 2
Align the SATA connector in the
2.5" hard drive with the SATA
Switch
connector on the PCB.
PCB
Step 4
Turn over the PCB and secure the hard
drive to the PCB with the mounting
screws that come with the kit.
www.addonics.com
Ruby eSATAp ExDrive
Shock Absorbers
v3.1.11
