Ruby Cipher AES 256-bit Combo Hard Drive
RCHD256ES & RCHD256EU
User's Guide
FCC Warning Statement
This equipment has been tested and found to comply with the limits for a class B digital
device pursuant to Part 15 of the FCC rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This
equipment generates, uses and can radiate radio frequency energy. If not installed and
used in accordance with the instructions, it may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a
particular installation. If the equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment on and off, the user
is encouraged to try and correct the interference by one or more of the following
suggestions.
Reorient or relocate the receiving antenna
Increase the distance between the equipment and the receiver
Connect the equipment to a different power outlet other than the one where receiver is
connected
Consult a certified television or radio technician

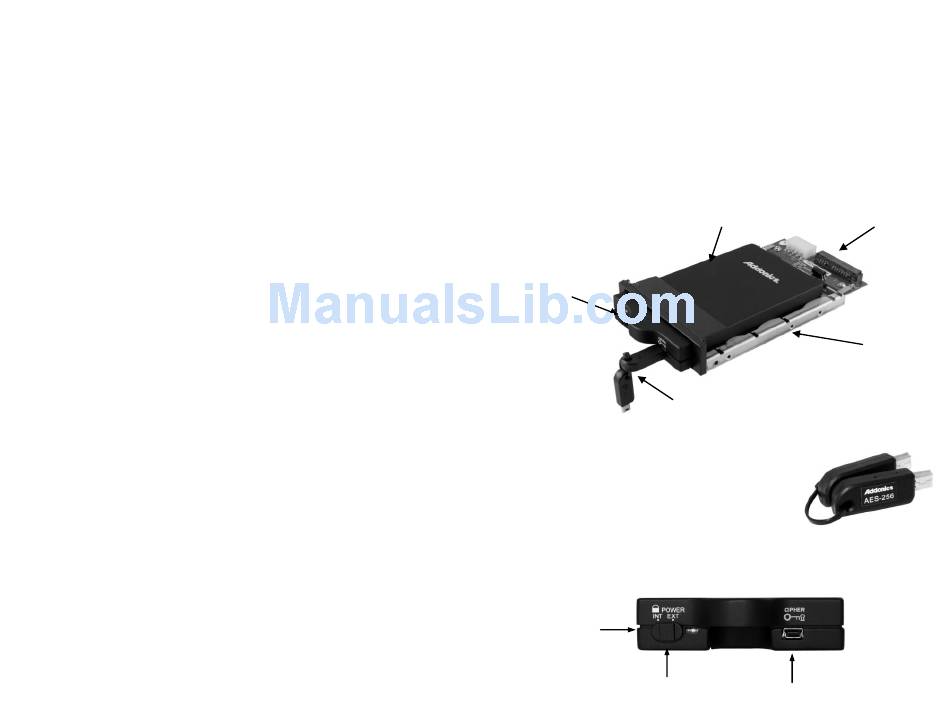

Enclosure and Drive Cradle Overview
The drive enclosure is the enclosure where a SATA hard drive is mounted and
secured by 4 screws.
Drive cradle, also known as fixed tray, is the frame that mounts inside the drive
bay of a desktop, server or any computing equipment. The drive cradle provides
both power and data connection between the computer and the drive enclosure.
The Ruby cipher drive cradle fits into any standard 3 1/4" drive bay and can
connect to the computer via SATA or USB 2.0. This interface allows hot
swapping the hard drive without restarting or rebooting the system. The Ruby
drive cradle is compatible with all Ruby drive enclosures and Ruby cipher drive
enclosures.
Cipher Key
Ruby Cipher key
Check to make sure you have the correct version
of the Ruby Cipher key. The key should match
the label at the back of the drive enclosure.
Black label AES-256 stands for Ruby Cipher 256-
bit key.
Ruby Enclosure
Switch
Power LED and
Drive Access LED
Top Cover
SATA Interface
Drive cradle
Cipher Slot
