Removing Cover of RAID Tower
IX
Back

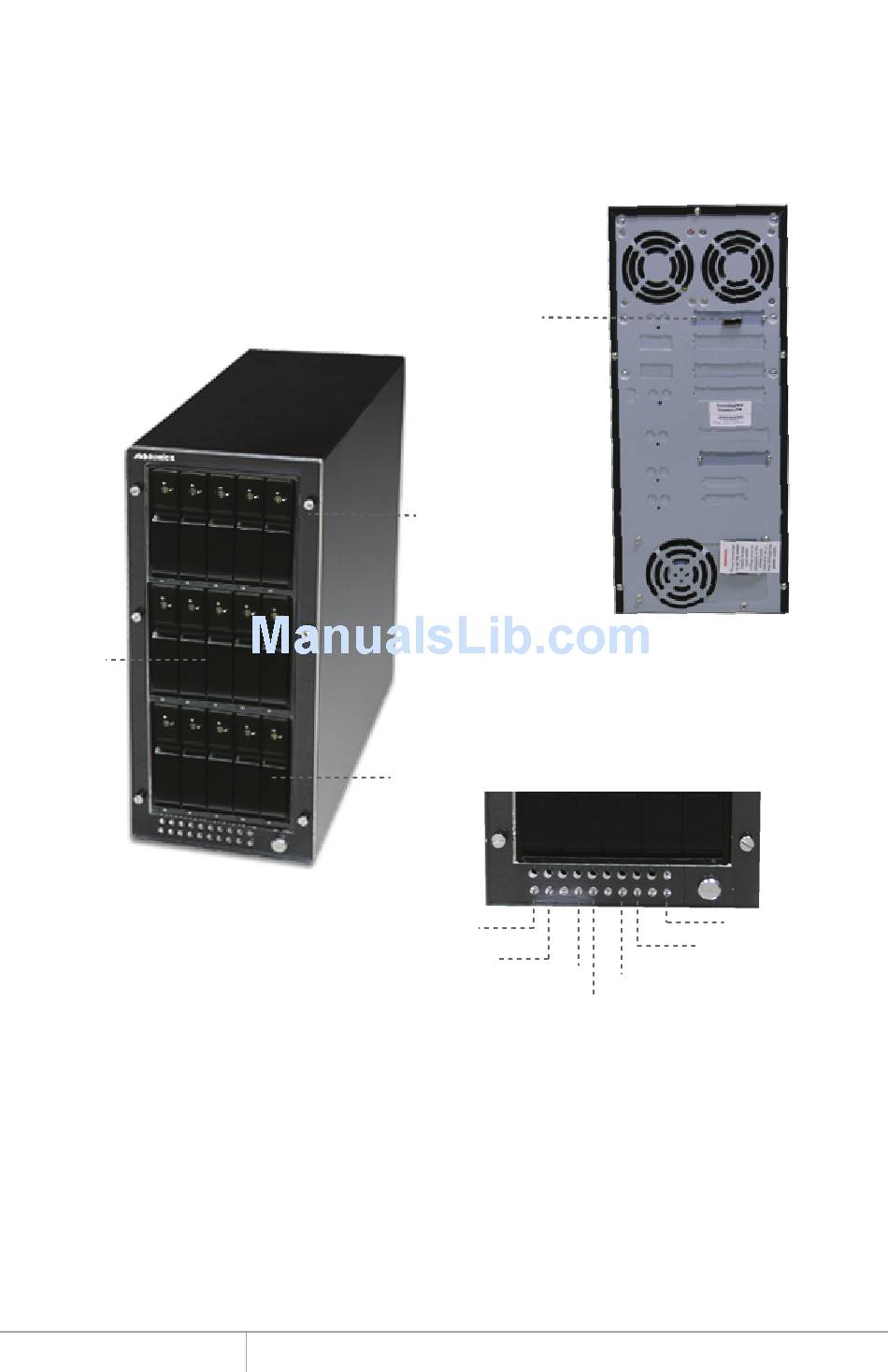

Loosen the 5 screws at the back of the tower for
the cover using a Philips screwdriver. Lift the
cover and pull slightly toward the rear of the tower
to disengage and remove.
Mini SAS
Connector
Array 1
Array 2
Array 3
Power LED
Array 1 Host
Array 3 Error
Array 1 Error
Array 2 Host
Array 3 Host
Array 2 Error
Power LED: lit when RAID Tower is on.
Host LED: lit when array group is connected, blinks
during array activity.
Error LED: lit when array group has a problem, blinks
if a redundant array is rebuilding.
