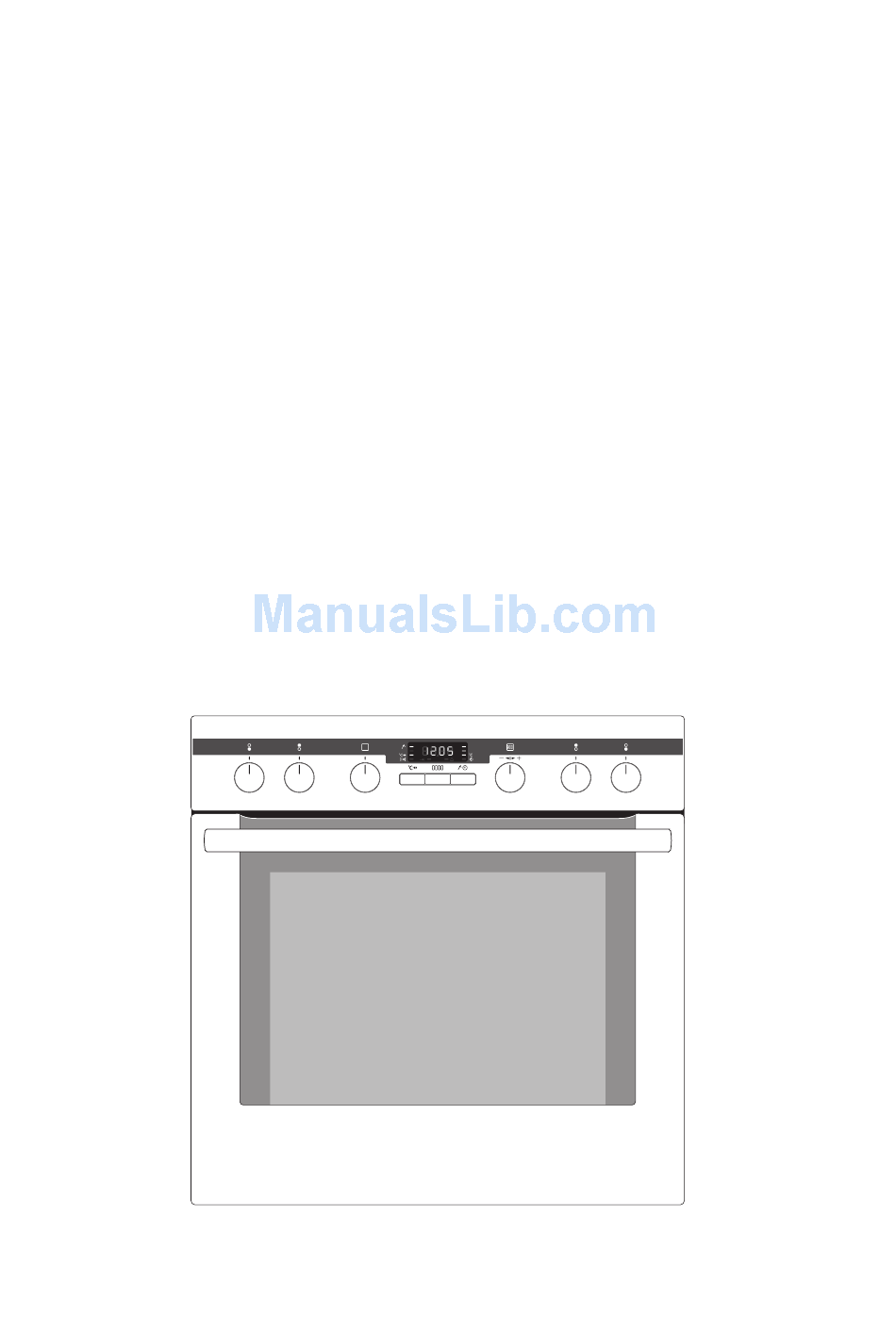

COMPETENCE E5731-4
Built-In Electric Oven
Operating Instructions

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the COMPETENCE E5731-4 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for AEG Electrolux COMPETENCE E5731-4

Summary of Contents for AEG Electrolux COMPETENCE E5731-4

  • Page 1 COMPETENCE E5731-4 Built-In Electric Oven Operating Instructions...

  • Page 2: Dear Customer

    Dear Customer, Please read these user instructions carefully and keep them to refer to later. Please pass the user instructions on to any future owner of the appli- ance. The following symbols are used in the text: Safety instructions Warning! Information that affects your personal safety. Important! Information that prevents damage to the appliance.

  • Page 3: Table Of Contents

    Contents Operating Instructions ........Safety instructions.
  • Page 4 Uses, Tables and Tips ..........33 Cooking table .

  • Page 5: Operating Instructions

    Operating Instructions 1 Safety instructions This appliance conforms with the following EU Directives: – 73/23/EEC dated 19.02.1973 Low Voltage Directive – 89/336/EEC dated 03.05.1989 EMC Directive inclusive of Amending Directive 92/31/EEC – 93/68/EEC dated 22.07.1993 CE Marking Directive Electrical safety •...

  • Page 6: How To Avoid Damage To The Appliance

    How to avoid damage to the appliance • Do not line the oven with aluminium foil and do not place baking trays, pots, etc. on the oven floor, as the heat that builds up will dam- age the oven enamel. •...

  • Page 7: Disposal

    Disposal Packaging material The packaging materials are environmentally friendly and can be recy- cled. The plastic components are identified by markings, e.g. >PE<, >PS<, etc. Please dispose of the packaging materials in the appropriate container at the community waste disposal facilities. Old appliance The symbol on the product or on its packaging indicates that this...

  • Page 8: Description Of The Appliance

    Description of the Appliance General Overview Control panel Door handle Full glass door Control Panel Temperature / Time Display Function buttons Oven Functions Temperature / Time Selection Hob Cooking Zone Control Knobs Hob Cooking Zone Control Knobs...

  • Page 9: Oven Features

    Oven Features Top heat and heating elements Oven lighting Shelf positions Meat probe socket Fat Filter Fan heating element Bottom Heat Oven shelf runners, removable Oven steam vent The steam from the oven is fed di- rectly upwards via the duct in the rear of the cooking surface.

  • Page 10: Oven Accessories

    Oven accessories Oven shelf For cookware, cake tins, roasts and grilled foods. Oven shelf for non-stick For cookware, cake tins, roasts and grilled foods. Baking tray For cakes and biscuits. Non-stick baking tray For cakes and biscuits. Non-stick roasting pan For roasting or for collecting fat.

  • Page 11: Before Using For The First Time

    Before Using for the first time Setting and changing the time The oven only operates when the time has been set. When the appliance has been con- nected to the electrical supply or when there has been a power cut, the function indicator Time flashes automatically.

  • Page 12: Initial Cleaning

    Initial cleaning Clean the oven before using it for the first time. Important: Do not use caustic or abrasive cleaning agents! These can damage the oven surfaces. For the metal surfaces, use commercially available cleaning agents. 1. Open the oven door. The oven light is lit.

  • Page 13: Using The Rings

    Using the Rings Also refer to the operating instructions for your built-in hob. It con- tains important information on ovenware, operation, cleaning and care. Heat settings • You may select the heat settings within the range of settings 1-9. • Intermediate positions may be selected between settings 2 and 7. 1 = lowest heat setting 9 = highest heat setting Switch the cooking zone off approx.

  • Page 14: Setting The Heat Setting

    Setting the heat setting 1. Select the heat setting. 2. To end the cooking process, turn back to the Off position. The corresponding ring pilot light is lit while the ring is operating.

  • Page 15: Using The Oven

    Using the Oven The oven is equipped with retractable buttons for “Oven functions” and “Temperature selection”. To use, press the relevant button. The button then sticks out. Switching the Oven On and Off Temperature / Time Display Speedcook Heat indicator Selector Button Button Speedcook Oven Functions...

  • Page 16: Switching The Oven Off

    Changing the oven temperature Use the control knob to raise or lower the temperature. The setting changes in steps of 5 °C. Switching the oven off To turn the oven off, turn the oven functions control knob to the OFF position.

  • Page 17: Heat Indicator

    Heat indicator Indicates warming up When the oven function has been switched on the bars that slowly light up one after the other indicate how far the oven has heated up. Fast heat indicator When the fast heat function has been switched on the bars that flash one after the other indi-...

  • Page 18: Speedcook

    Speedcook After an oven function is selected, using the additional function Speedcook the empty oven can be pre-heated in a relatively short time. Important: Do not put the food to be cooked into the oven, until Speedcook is completed and the oven is operating using the desired function.

  • Page 19: Oven Functions

    Oven Functions The oven has the following functions: Heating element/ Oven function Application Professional hot For baking on up to three oven Top heat, bottom levels at the same time. heat, rear wall Set the oven temperatures heating element, 20-40 °C lower than when using Conventional.

  • Page 20: Meat Probe

    Meat probe For switching off the oven when the temperature at the centre of a roast reaches a set temperature. There are two temperatures to be set: – The oven temperature: see Roasting Table – The core temperature: See Meat probe Table Important: Only the meat probe supplied may be used.
  • Page 21 6. Set the oven function and oven temperature. As soon as the core temperature set is reached, an audible signal sounds and the oven switches itself off au- tomatically. 7. To switch off the signal, press any button. Warning: The meat probe is hot. There is a risk of being burned when removing the plug and the tip of the meat probe.

  • Page 22: Inserting The Shelf And Tray

    Inserting the Shelf and Tray Anti-tip device All slide-in units have a small bulge on the left and right. This bulge is an anti-tip device and must always point to the rear of the oven. Inserting tray: The anti-tip device must point to- wards the rear of the oven.

  • Page 23: Non-Stick Accessories

    Non-stick accessories To ensure that this accessory remains stable and permanently easy to clean, you should follow these instructions: • Do not put accessories into the oven without any food. • Do not place accessories on hot cooking surfaces, as the non-stick properties can be damaged by overheating.

  • Page 24: Clock Functions

    Clock Functions Temperature / Time Display Clock function indicators Selector Button Change display Cook time To set how long the oven is to be in use. End time To set when the oven is to switch off again. Countdown To set a countdown. A signal sounds after the time has elapsed. This function does not affect the functioning of the oven.
  • Page 25 How to use the clock functions • After a clock function has been selected, the corresponding function indicator flashes for about 5 seconds. During this period, the desired times can be set or modified using the dial. • When the desired time has been set, the function indicator continues to flash for approx.
  • Page 26 Countdown 1. Press the Select button repeated- ly until the function indicator Countdown flashes. 2. Using the control knob set the desired countdown (max. 99.00minutes). The function indicator Countdown lights up. When 90% of the time set has elapsed, an audible signal sounds. When the time has elapsed, ”0.00“...
  • Page 27 Cook time 1. Select the oven function and tem- perature. 2. Press the Select button repeated- ly until the function indicator Cook time flashes. 3. Using the control knob set the desired cooking time (max. 09.59hours). The function indicator Cook time lights up and the oven comes on immediately.
  • Page 28 End time 1. Select the oven function and temperature. 2. Press the Select button repeated- ly until the End time function in- dicator flashes. 3. Using the control knob set the desired switch-off time. The function indicator End time lights up and the oven comes on immediately.
  • Page 29 Cook time and End time combined Cook time and End time can be used simultaneously, if the oven is to be switched on and off automatically at a later time. 1. Select the oven function and temperature. 2. Using the Cook time function, set the time that the dish needs to cook, In this example, 1 hour.

  • Page 30: Other Functions

    Other Functions Switching off the display You can save energy by switching off the clock display. Switching off the clock display 1. Turn the control knob to the right and hold it. 2. In addition press the Select but- ton until the display goes out. As soon as the appliance is switched on again, the display comes on au- tomatically.

  • Page 31: Oven Safety Cut-Out

    Deactivating the child safety device 1. Turn the dial to the left and hold it. 2. In addition press the Select button until “SAFE” disappears ”from“ the display. The child safety device is now deactivated and the oven is again ready for use.

  • Page 32: Mechanical Door Lock

    Mechanical Door Lock When the appliance is delivered, the door lock is deactivated. Activate the door lock Pull the safety catch forwards until it locks in place. Open the oven door: 1. Shut the door. 2. Press the safety catch and keep it depressed.

  • Page 33: Uses, Tables And Tips

    Uses, Tables and Tips Cooking table The information given in the following table is for guidance only. Heat Cooking- Cooking set- suitable for Tips/Hints process time ting Residual heat, Off posi- tion Keeping Keeping cooked foods food as required Cover warm warm Hollandaise sauce,...

  • Page 34: Baking

    We recommend when boiling or searing foods using the highest heat setting at first and then letting foods requiring a longer cooking time finish cooking on the desired heat setting. Overheated fats and oils can ignite quickly. If you are cooking foods in fat or oil (e.g.
  • Page 35 General Instructions • Insert the tray with the bevel at the front. • With Conventional or Professional hot air you can also bake with two tins next to one another on the oven shelf at the same time. This does not significantly increase baking time. When frozen foods are used the trays inserted may distort during cook- ing.

  • Page 36: Baking Table

    Baking table Baking on one oven level Type of Oven Temperature Time Oven function baking level °C Hr: Mins. Baking in tins Ring cake or brioche Professional hot 150-160 0:50-1:10 Madeira cake/fruit cakes Professional hot 140-160 1:10-1:30 Sponge cake Professional hot 0:25-0:40 Sponge cake Conventional...
  • Page 37 Type of Oven Temperature Time Oven function baking level °C Hr: Mins. Fruit flans Professional hot 0:35-0:50 (made with yeast dough/ sponge mixture) Fruit flans Conventional 0:35-0:50 (made with yeast dough/ sponge mixture) Fruit flans made with Professional hot 160-170 0:40-1:20 short pastry Yeast cakes with delicate...
  • Page 38 Type of Oven Temperature Time Oven function baking level °C Hr: Mins. Small cakes (20per tray) Professional hot 0:20-0:30 Small cakes (20per tray) Conventional 0:20-0:30 1) Pre-heat the oven 2) Use the drip tray or roasting tray Baking on more than one oven level Professional Professional hot air...

  • Page 39: Tips On Baking

    Tips on Baking Baking results Possible cause Remedy The cake is not Wrong oven level Place cake lower browned enough un- derneath The cake sinks (be- Oven temperature too high Use a slightly lower setting comes soggy, lumpy, Baking time too short Set a longer baking time streaky) Baking times cannot be re-...

  • Page 40: Table For Bakes And Gratins

    Table for Bakes and Gratins Tempera- Time Shelf Dish Oven function ture Hours position °C mins. Pasta bake Conventional 180-200 0:45-1:00 Lasagne Conventional 180-200 0:25-0:40 Vegetables au gratin Rotitherm 160-170 0:15-0:30 Baguettes topped with Rotitherm 160-170 0:15-0:30 melted cheese Sweet bakes Conventional 180-200 0:40-0:60...

  • Page 41: Roasting

    Roasting Oven function: Conventional or Rotitherm Roasting dishes • Any heat-resistant ovenware is suitable to use for roasting (please read the manufacturer's instructions). • Large roasting joints can be roasted directly in the roasting tray or on the oven shelf with the roasting tray placed below it. •...

  • Page 42: Roasting Table

    Roasting table Temper- Time Shelf Type of meat Quantity Ovenfunction ature Hours position °C mins. Beef Conven- Pot roast 1-1.5 kg 200-250 2:00-2:30 tional per cm. of Roast beef or fillet thickness per cm. 190- - rare Rotitherm 0:05-0:06 of thickness per cm.
  • Page 43 Temper- Time Shelf Type of meat Quantity Ovenfunction ature Hours position °C mins. Poultry 200-250g Poultry portions Rotitherm 200-220 0:35-0:50 each 400-500g Half chicken Rotitherm 190-210 0:35-0:50 each Chicken, poulard 1-1.5 kg Rotitherm 190-210 0:45-1:15 Duck 1.5-2 kg Rotitherm 180-200 1:15-1:45 Goose 3.5-5 kg Rotitherm...

  • Page 44: Meat Probe Table

    Meat probe Table Food to be Cooked Meat Core Temperature Beef Rib steak or fillet steak rare 45 - 50 °C medium 60 - 65 °C well done 75 - 80 °C Pork Shoulder of pork, ham joint, neck 80 - 82 °C Chop (saddle), smoked pork loin 75 - 80 °C Meat loaf...

  • Page 45: Grill Sizes

    Grill Sizes Oven function: Grill or Dual grill with maximum temperature setting Important: Always grill with the oven door closed. The empty oven should always be pre-heated with the grill functions for 5 minutes. • For grilling, use both the oven shelf and the roasting tray together. •...

  • Page 46: Defrosting

    Defrosting Oven function: Defrost (no temperature setting) • Unwrap the food and place it on a plate on the oven shelf. • Do not cover with a plate or bowl, as these can substantially lengthen the defrosting time. • For defrosting, place the shelf in the 1st oven level from the bot- tom.

  • Page 47: Making Preserves

    Making Preserves Oven function: Bottom heat • For preserving, use only commercially available preserve jars of the same size. • Jars with twist-off or bayonet type lids and metal tins are not suitable. • When making preserves, the first shelf position from the bottom is the one most used.

  • Page 48: Preserves Table

    Preserves table The times and temperatures for making preserves are for guidance only. Cooking time Continue to Temperature Preserve until simmering cook at 100°C in°C in mins. in mins. Soft fruit Strawberries, blueberries, 160-170 35-45 raspberries, ripe gooseberries Unripe gooseberries 160-170 35-45 10-15...

  • Page 49: Cleaning And Care

    Cleaning and Care Warning: For cleaning, the appliance must be switched off and cooled down. Warning: For safety reasons, do not clean the appliance with steam jet or high-pressure cleaning equipment. Attention: Do not use any scouring agents, sharp cleaning tools or scourers.

  • Page 50: Non-Stick Accessories

    Non-stick accessories Clean accessories with a soft sponge or cloth in hot water and wash- ing-up liquid. Bright spots in the coating do not mean that the surface is damaged. Important: Do not use any aggressive or scouring cleaning agents, spray oven cleaners, steel soap pads or hard objects such as knives or sharp-edged scrapers.

  • Page 51: Shelf Support Rails

    Shelf Support Rails The shelf support rails on the left and right hand sides of the oven can be removed for cleaning the side walls. Removing the shelf support rails First pull the front of the rail away from the oven wall (1) and then un- hitch at the back (2).

  • Page 52: Oven Lighting

    Oven Lighting Warning: There is a danger of electric shock! Prior to changing the oven light bulb: – Switch off the oven! – Remove the fuses in the fuse box or switch off the circuit breaker. Place a cloth on the oven floor to protect the oven light and glass cov- Replacing the oven light bulb/ cleaning the glass cover 1.

  • Page 53: Oven Ceiling

    Oven Ceiling The upper heating element can be folded down to make it easier to clean the oven ceiling. Folding down the heating ele- ment Warning: Only fold down the heat- ing element when the oven is switched off and there is no risk of being burnt! 1.

  • Page 54: Oven Door

    Oven Door The door of your appliance may be removed for cleaning. Removing the oven door 1. Open the oven door completely. 2. Completely fold back the clamp- ing levers on both door hinges. 3. Grip the oven door with both hands and close it about 3/4 going past the point of resistance.

  • Page 55: Oven Door Glass

    Oven Door Glass The oven door is fitted with three glass panels mounted one behind the other. The inner panels may be removed for cleaning. Warning: Carry out the following steps only when the oven door is un- hinged! When left on its hinges, the door could rise rapidly due to the lighter weight when the glass is removed and could cause injury.
  • Page 56 Inserting the middle door glass 1. Insert the middle glass panel at an angle from above into the section of the door in which the handle is á located ( 2. Lower the middle glass panel and slide it under the lower bracket to- wards the lower door edge as far as à...

  • Page 57: What To Do If

    What to do if … Problem Possible cause Remedy The cooking zones are not Consult the instruction manual for the built-in range working The oven is not heating up The oven has not been Switch on the oven switched on The clock has not been set Set the clock to the cur- rent time...
  • Page 58 Warning! Repairs to the appliance are only to be carried out by quali- fied service engineers. Considerable danger to the user may result from improper repairs. If the appliance has been wrongly operated, the visit from the customer service technician or dealer may not take place free of charge, even during the warranty period.

  • Page 59: Service

    Service In the event of technical faults, please first check whether you can remedy the problem yourself with the help of the operating instruc- tions (section “What to do if…”). If you were not able to remedy the problem yourself, please contact the Customer Care Department or one of our service partners.
  • Page 60 USD 14 billion in more than 150 countries around the world. AEG Hausgeräte GmbH Postfach 1036 D-90327 Nürnberg http://www.aeg-electrolux.de © Copyright by AEG 822 926 045-A-100505-02 Subject to change without notice...
