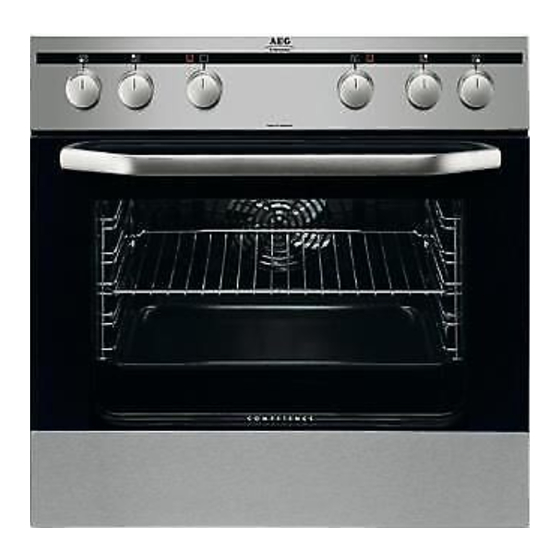

- Page 1 E30502-5 User manual Built-In Electric Oven...
-
Page 2: Table Of Contents
Contents Thank you for choosing one of our high-quality products. To ensure optimal and regular performance of your appliance please read this instruc- tion manual carefully. It will enable you to navigate all processes perfectly and most ef- ficiently. To refer to this manual any time you need to, we recommend you to keep it in a safe place. -
Page 3: Operating Instructions
Operating Instructions Operating Instructions Safety instructions Electrical safety • This appliance must be only connected by a registered electrician. • In the event of a fault or damage to the appliance: Take the fuses out or switch off. • Repairs to the appliance must only be carried out by qualified service engineers. Considerable danger may result from improper repairs. -
Page 4: Description Of The Appliance
Description of the Appliance • Do not store any moist foods inside the oven. This could damage the oven enamel. • After switching off the cooling fan, do not keep uncovered dishes in the oven. Mois- ture may condense in the oven interior or on the glass doors and may get into the units. -
Page 5: Control Panel
Description of the Appliance Control Panel Oven Power Indicator Temperature Pilot Light Oven Functions Temperature selector Hob Cooking Zone Control Hob Cooking Zone Control Oven Features Top heat and heating elements Oven lighting Shelf positions Fat Filter Fan heating element Bottom Heat Oven shelf runners, removable... -
Page 6: Oven Accessories
Before Using for the first time Inside of door On the inside of the oven door you will find the numbers of the different oven shelves. You will also find some brief information about the oven's functions, recommended shelves and temperatures for cooking the most popular dishes. -
Page 7: Using The Rings
Using the Rings Using the Rings Also refer to the operating instructions for your built-in hob. It contains important in- formation on ovenware, operation, cleaning and care. Heat settings • You may select the heat settings within the range of settings 1-9. •... -
Page 8: Using The Oven
Using the Oven 2. To end the cooking process, turn back to the Off position. The power indicator light is lit as long as a ring is Using the Oven Switching the Oven On and Off Temperature Pilot Light Oven Power Indicator Oven Functions Temperature selector 1. -
Page 9: Oven Functions
Using the Oven Oven Functions The oven has the following functions: Oven function Application Light Using this function you can light up the oven interior, e.g. for cleaning. True fan To bake on three oven levels maximum at the same time. Decrease the oven temperatures (20-40 °C) compared with Conventional. -
Page 10: Inserting/Removing The Fat Filter
Using the Oven Inserting the oven shelf: Insert the oven shelf so that the feet point downwards. Push the oven shelf between the guide bars of the selected oven level. The high rim around the oven shelf is an addi- tional device to prevent cookware from slip- ping. -
Page 11: Uses, Tables And Tips
Uses, Tables and Tips Uses, Tables and Tips Cooking table The information given in the following table is for guidance only. Heat Cooking- Cooking suitable for Tips/Hints setting process time Residual heat, Off position Keeping Keeping cooked foods warm as required Cover food warm Hollandaise sauce,... -
Page 12: Baking
Uses, Tables and Tips Baking Oven function: True fan or Conventional Baking tins • For Conventional dark metal and non-stick tins are suitable. • For True fan bright metal tins are also suitable. Oven levels • Baking with Conventional is possible on one oven level. •... -
Page 13: Baking Table
Uses, Tables and Tips How to use the baking tables The tables give the required temperature settings, baking times and oven shelf levels for a selection of typical dishes. • Temperatures and baking times are for guidance only, as these will depend on the consistency of pastry, dough or mixture, the amount and the type of baking tin. - Page 14 Uses, Tables and Tips Type of Oven Temperature Time Oven function baking level °C Hr: Mins. Cheesecake Conventional 170-190 1:00-1:30 Cakes/pastries/breads on baking trays Plaited bread/bread crown Conventional 170-190 0:30-0:40 Christmas stollen Conventional 160-180 0:40-1:00 Bread (rye bread) Conventional -first of all 0:25 -then 160-180...
- Page 15 Uses, Tables and Tips Type of Oven Temperature Time Oven function baking level °C Hr: Mins. Puff pastries True fan 170-180 0:20-0:30 Rolls True fan 0:20-0:35 Rolls Conventional 0:20-0:35 Small cakes (20per tray) True fan 0:20-0:30 Small cakes (20per tray) Conventional 0:20-0:30 1) Pre-heat the oven...
-
Page 16: Tips On Baking
Uses, Tables and Tips Tips on Baking Baking results Possible cause Remedy The cake is not browned Wrong oven level Place cake lower enough underneath The cake sinks (becomes Oven temperature too high Use a slightly lower setting soggy, lumpy, streaky) Baking time too short Set a longer baking time Baking times cannot be re-... -
Page 17: Table For Bakes And Gratins
Uses, Tables and Tips Temperature Time Type of baking Shelf position °C Hr: Mins. Flammekuchen (Pizza-like dish 250 - 270 12 - 20 from Alsace) Piroggen (Russian version of 180 - 200 15 - 25 calzone) 1) Pre-heat the oven Table for Bakes and Gratins Shelf Temperature... -
Page 18: Roasting
Uses, Tables and Tips Roasting Oven function: Conventional or Rotitherm Ovenware for roasting • Any heat-resistant ovenware is suitable to use for roasting. (Please read the manufac- turer's instructions.) • For all lean meats, we recommend roasting these in a roasting tin or dish with a lid. -
Page 19: Grill Sizes
Uses, Tables and Tips Tempera- Shelf Time Type of meat Quantity Ovenfunction ture position Hours mins. °C Veal Roast veal 1 kg Rotitherm 160-180 1:30-2:00 Knuckle of veal 1.5-2 kg Rotitherm 160-180 2:00-2:30 Lamb Leg of lamb, roast 1-1.5 kg Rotitherm 150-170 1:15-2:00... -
Page 20: Defrosting
Uses, Tables and Tips Grilling table Food to be grilled Oven level Grilling time 1st side 2nd side Burgers 8-10 mins. 6-8 mins. Pork fillet 10-12 mins. 6-10 mins. Sausages 8-10 mins. 6-8 mins. Fillet steaks, veal steaks 6-7 mins. 5-6 mins. -
Page 21: Drying
Uses, Tables and Tips Drying Oven function: True fan • Use oven shelves covered with greaseproof paper or baking parchment. • You get a better result if you switch the oven off halfway through the drying time, open the door and leave the oven to cool down overnight. •... -
Page 22: Cleaning And Care
Cleaning and Care Preserves table The times and temperatures for making preserves are for guidance only. Cooking time until Continue to cook Temperature Preserve simmering at 100°C in°C in mins. in mins. Soft fruit Strawberries, blueberries, rasp- 160-170 35-45 berries, ripe gooseberries Unripe gooseberries 160-170 35-45... -
Page 23: Oven Interior
Cleaning and Care Oven interior Clean the appliance after each use. In this way, dirt is easier to clean off and is not al- lowed to burn on. 1. For cleaning, turn the oven light on. 2. After every use, wipe the oven with a solution of washing-up liquid and allow to dry. Clean stubborn dirt with a special oven cleaner. -
Page 24: Oven Lighting
Cleaning and Care Fitting the shelf support rails Important! The rounded ends of the guide rails must be pointing forwards! To re-insert, first hook the rail into place at the back (1) and then insert the front and press into place (2). -
Page 25: Oven Ceiling
Cleaning and Care Oven Ceiling The upper heating element can be folded down to make it easier to clean the oven ceil- ing. Folding down the heating element Warning: Only fold down the heating element when the oven is switched off and there is no risk of being burnt! 1. -
Page 26: Oven Door
Cleaning and Care Oven door For easier cleaning of the oven interior the oven door of your appliance can be taken off its hinges. Removing the oven door from its hinges 1. Open the oven door as far as it will go. 2. - Page 27 Cleaning and Care Hanging the oven door back on its hinges 1. From the handle side take hold of the oven door with a hand on each side and hold at an angle of approx. 45°. Position the recesses on the bottom of the oven door on the hinges on the oven.
-
Page 28: Oven Door Glass
Cleaning and Care Oven door glass The oven door is fitted with two panels of glass mounted one behind the other. The in- ner panel can be removed for cleaning. Important Rough handling, especially around the edges of the front panel, can cause the glass to break. - Page 29 Cleaning and Care 5. Take hold of the door glass on its upper edge and take it out of the guide by pulling it up- wards. Cleaning the door glass Clean the door glass thoroughly with a solution of water and washing up liquid. Then dry it carefully.
- Page 30 Cleaning and Care On the open side of the door trim (B) there is a guide bar (C). This must be pushed between the outer door panel and the guide corner(D). The clip seal (E) must be snapped in. 3. Open the oven door as far as it will go. 4.
-
Page 31: What To Do If
What to do if … What to do if … Problem Possible cause Remedy The cooking zones are not Consult the operating instructions for the built-in cooking sur- functioning face The oven does not heat up The oven is not switched on Switch the oven on The required settings have not Check the settings... -
Page 32: Disposal
Disposal Disposal Packaging material The packaging materials are environmentally friendly and can be recycled. The plastic components are identified by markings, e.g. >PE<, >PS<, etc. Please dispose of the pack- aging materials in the appropriate container at the community waste disposal facilities. Old appliance The symbol on the product or on its packaging indicates that this product may not... -
Page 33: Service
Service Service In the event of technical faults, please first check whether you can remedy the problem yourself with the help of the operating instructions (section “What to do if…”). If you were not able to remedy the problem yourself, please contact the Customer Care Department or one of our service partners. - Page 36 www.electrolux.com...
