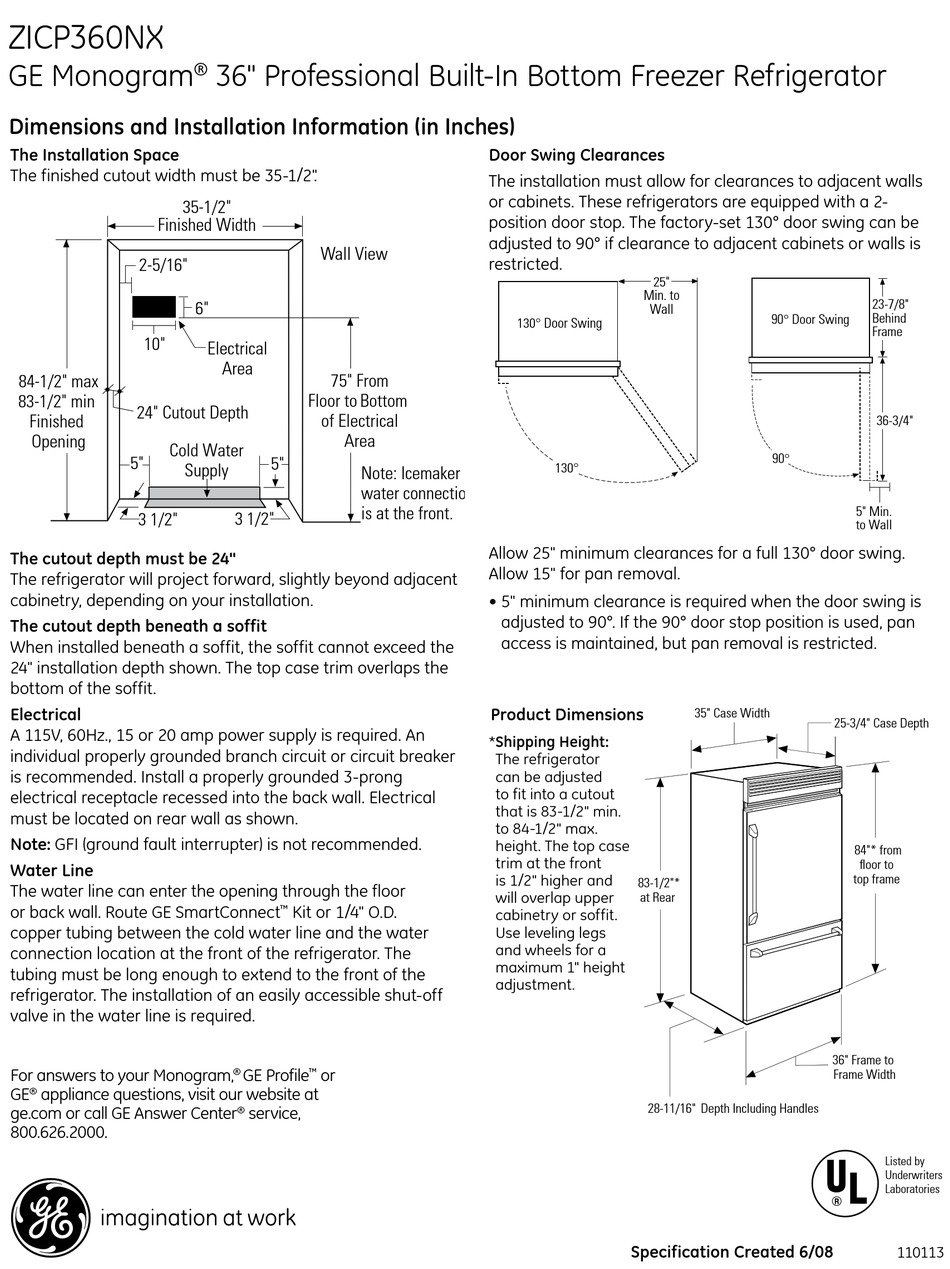

GE Monogram ZICP360NX Datasheet

ZICP360NX
GE Monogram
Dimensions and Installation Information (in Inches)
The Installation Space
The finished cutout width must be 35-1/2" .
35-1/2"
Finished Width
2-5/16"
10"
84-1/2" max
83-1/2" min
24" Cutout Depth
Finished
Opening
Cold Water
5"
Supply
3 1/2"
The cutout depth must be 24"
The refrigerator will project forward, slightly beyond adjacent
cabinetry, depending on your installation.
The cutout depth beneath a soffit
When installed beneath a soffit, the soffit cannot exceed the
24" installation depth shown. The top case trim overlaps the
bottom of the soffit.
Electrical
A 115V, 60Hz., 15 or 20 amp power supply is required. An
individual properly grounded branch circuit or circuit breaker
696Dia7
is recommended. Install a properly grounded 3-prong
electrical receptacle recessed into the back wall. Electrical
must be located on rear wall as shown.
Note: GFI (ground fault interrupter) is not recommended.
Water Line
The water line can enter the opening through the floor
or back wall. Route GE SmartConnect
copper tubing between the cold water line and the water
connection location at the front of the refrigerator. The
tubing must be long enough to extend to the front of the
refrigerator. The installation of an easily accessible shut-off
valve in the water line is required.
For answers to your Monogram,
GE appliance questions, visit our website at
®
ge.com or call GE Answer Center
800.626.2000.
36" Professional Built-In Bottom Freezer Refrigerator
®
Wall View
6"
Electrical
Area
75" From
Floor to Bottom
of Electrical
Area
5"
Note: Icemaker
water connection
is at the front.
3 1/2"
Kit or 1/4" O.D.
™
GE Profile or
® ™
service,
®
Door Swing Clearances
The installation must allow for clearances to adjacent walls
or cabinets. These refrigerators are equipped with a 2-
position door stop. The factory-set 130° door swing can be
adjusted to 90° if clearance to adjacent cabinets or walls is
restricted.
25"
Min. to
Wall
130° Door Swing
130°
Allow 25" minimum clearances for a full 130° door swing. 605Dia20
Allow 15" for pan removal.
• 5" minimum clearance is required when the door swing is
adjusted to 90°. If the 90° door stop position is used, pan
access is maintained, but pan removal is restricted.
Product Dimensions
* Shipping Height:
The refrigerator
can be adjusted
to fit into a cutout
that is 83-1/2" min.
to 84-1/2" max.
height. The top case
trim at the front
is 1/2" higher and
83-1/2"*
will overlap upper
at Rear
cabinetry or soffit.
Use leveling legs
and wheels for a
maximum 1" height
adjustment.
28-11/16"
Specification Created 6/08
23-7/8"
Behind
90° Door Swing
Frame
90°
5" Min.
to Wall
zicp_bf_ref_qs_a
35" Case Width
25-3/4" Case Depth
84"* from
floor to
top frame
36" Frame to
Frame Width
Depth Including Handles
36-3/4"
*Shipping height.
refrigerator can
to fit into a cutou
83-1/2" min. to 8
height. Note tha
trim at the front
and will overlap
or soffit. Use lev
and wheels for a
1" height adjustm
Listed by
Underwriters
Laboratories
110113
