Soundstream SDR-762 Owner's Manual

Flip-down/detachable 7” monitor mp3/mp4 player am/fm radio built-in tv tuner (only for sdr-762t model)
Hide thumbs
Table of Contents

Advertisement

Quick Links

SDR-762/SDR-762T
Flip-down/Detachable 7" Monitor
MP3/MP4 Player
AM/FM Radio
Built-in TV tuner (only for SDR-762T model)
Owner's Manual
Take the time to read through this owner's manual.
Familiarity with installation and operation procedures will help you obtain the best
Performance from your new device.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SDR-762 and is the answer not in the manual?

Questions and answers

Related Manuals for Soundstream SDR-762

Summary of Contents for Soundstream SDR-762

  • Page 1 SDR-762/SDR-762T Flip-down/Detachable 7” Monitor MP3/MP4 Player AM/FM Radio Built-in TV tuner (only for SDR-762T model) Owner’s Manual Take the time to read through this owner’s manual. Familiarity with installation and operation procedures will help you obtain the best Performance from your new device.

  • Page 2: Important Safeguards

    Important Safeguards Using the device at temperature below -10℃ may cause the breakage of the device. BEFORE USING PLEASE HEAT UP THE PASSENGER COMPARTMENT TO THE RECOMMENDED TEMPERATURE! Read carefully through this manual to familiarize you with this high-quality sound system. Disconnect the vehicle's negative battery terminal while mounting and connecting the unit.

  • Page 3: Table Of Contents

    Main Menu ..........................12 ◆Radio Player........................12 ◆USB/SD/MMC Interface ....................13 ◆TV Mode(only for SDR-762T)................... 14 ◆AV-IN Mode(only for SDR-762T) ..................15 ◆AUX-IN Mode(only for SDR-762) ..................15 Setting Control ......................... 15 ◆ Other Functions ......................... 17 Anti-theft System........................18 Troubleshooting guide........................

  • Page 4: Accessories

    Accessories Package contains the following accessories for installation and operation of the unit. (1) Washer, Spring 1 each Washer, M5 Nut (2) Mounting Strap (3) Bolt 5*20 (4) Screw 5*6 (5) Mounting Collar (6) Release Key (7) Screw 5*20 (8) Rubber Cushion Remote Control Warranty card ISO cable...

  • Page 5: Installation/Un-Installation

    Installation/Un-installation Note Before starting installation of the unit, make sure the wiring is connected properly. Use only the parts provided with the unit to ensure proper installation. The use of unauthorized parts may cause malfunction. Install the unit where it does not get in the driver’s way and will not injure the passenger in case there is a sudden stop, like an emergency stop.

  • Page 6: Wiring Connections

    Wiring Connections NOTE: Never connect cable to the system while it is connected to the battery power. Whenever the unit is disconnected from the battery, the preset memory will be erased and the unit will go back to its factory defaults. Note: To watch video the parking wire should be connected to break signal.
  • Page 7 Note: Only use groundless loudspeakers. Use only loudspeakers of minimal 40Watt, using fewer watts may result in damaging your loudspeakers at higher volumes. Use 4~8 Ω (Ohm impedance) loudspeakers only; using higher or lesser impedance may damage the unit. Do not use 3-cable loudspeakers and do not connect the loudspeakers minus to the car body (GND).

  • Page 8: Detachable Control Panel

    Detachable Control Panel Detaching the control panel Release the trim ring. Turn the Power off. Press REL button and pull out the panel towards yourself. Attaching the control panel Press the control panel into the main unit until the “click” sound is heard. Caution: The control panel can easily be damaged by shocks.

  • Page 9: Panel Control

    Panel Control...
  • Page 10 1. IR Sensor IR Remote control signal receiving window. Max distance is 6-8 meters, 45 angels. 2. BAND Button In Radio mode, press to change radio band in sequence of: FM1 → FM2 → FM3 → AM1 → AM2. 3. MODE Button Press it to select the mode: Radio, USB (if there is a USB device in the unit), CARD (if there is a SD/MMC card in the unit), TV (For SDR-762T) and AV IN.

  • Page 11: Remote Control

    Remote control 1: MENU 2: POWER 3: UP 4: BAND/M.SEL/RDM 5: ENTER 6: LEFT/SEEK-/FAST BACKWARD 7: DOWN 8: REPEAT/INT 9: AS/PS 10: MODE 11: DIGIT NUMBER 12: PLAY/PAUSE 13: MUTE 14: AUDIO 15: SUBTITLE 16: RIGHT/SEEK+/FAST FORWARD 17: VOLUME PLUS 18: SET 19: VOLUME MINUS 20: EQ/LOUD...

  • Page 12: Main Menu

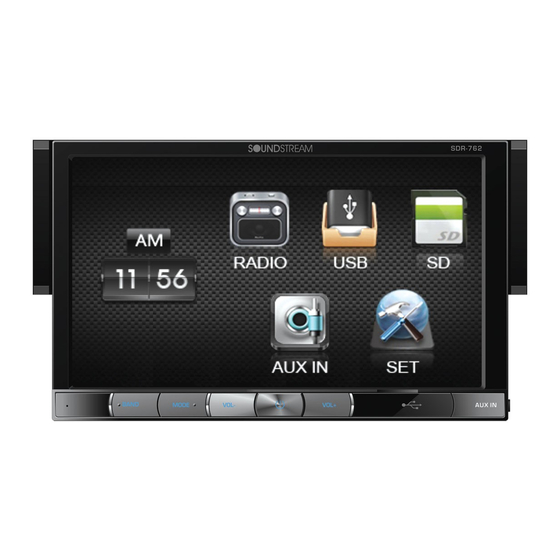

    Main Menu The best way to discover the program is to explore each screen in detail, and to find out how to move from one to another. Read this chapter for a guided tour. Unit starts by displaying the Main menu. This is the root of the screen hierarchy, and you can simply access all features by tapping on the touch screen buttons.

  • Page 13: Usb/Sd/Mmc Interface

    ◆USB/SD/MMC Interface To start USB /SD /MMC, tap the corresponding icon on main menu screen, or press the MODE button on the front panel or RC repeatedly. Touch it to turn to previous content Touch it to select music document folder Touch it to select photo document folder Touch it to select video document folder Touch it to pause the playback, touch again to resume.

  • Page 14: Tv Mode(Only For Sdr-762T)

    ◆TV Mode(only for SDR-762T) To start TV mode, tap on TV button from main menu screen. Connect a TV antenna to the TV antenna jack of the unit. Select TV mode; press on the center of the touch screen, and following interface will be display: 1.

  • Page 15: Av-In Mode(Only For Sdr-762T)

    Press the icon to be back to main menu. ◆ -IN Mode(only for SDR-762) To start AUX-IN Mode, tap on AUX-IN button from main menu screen. Connect the external audio signal source to this unit. Select AUX-IN mode in the main menu or by pressing Mode button repeatedly on the front panel.
  • Page 16 items and then press ENTER button on the RC to confirm the item. Press LEFT/RIGHT buttons on the RC to return to previous menu or enter the next menu. 2) Press the VOL+/- button on the front panel or press LEFT/RIGHT buttons on the RC to adjust the setting.

  • Page 17: Other Functions

    System information Product Info：You can view detail system information including serial number of the software Calibration：Adjust the touch screen Default Set： return to factory default setting or Calibration The calibration of the screen is useful when some malfunction occur with the touch screen and it needs adjustment.

  • Page 18: Anti-Theft System

    Anti-theft System Remove the panel 1. Press the PWR button to turn the power off. 2. Press REL button to detach the panel. 3. Pull the panel out. 4. Place the panel into the case and take it with you when you leave the car. Remove the unit 1.

  • Page 19: Specification

    Specification General Power supply: 12 V DC Current consumption: Max. 10 A Maximum power output: 30W x 4 channels (Max.) Compatible formats: MP3/MP4/WMA/ JPEG/RMVB Dimensions (W x D x H) / 178 x 175 x 50 mm / 1.8 kg weight: Working temperature...

This manual is also suitable for:

Sdr-762t
