Summary of Contents for Soundstream SDR-656T
- Page 1 SDR-656/SDR-656T 6.5” Monitor MP3/MP4 Player AM/FM Radio Built-in TV tuner (only for SDR-656T model) Owner’s Manual Take the time to read through this owner’s manual. Familiarity with installation and operation procedures will help you obtain the best Performance from your new device.
-
Page 2: Important Safeguards
Important Safeguards Using the device at temperature below -10℃ may cause the breakage of the device. BEFORE USING PLEASE HEAT UP THE PASSENGER COMPARTMENT TO THE RECOMMENDED TEMPERATURE! Read carefully through this manual to familiarize you with this high-quality sound system. Disconnect the vehicle's negative battery terminal while mounting and connecting the unit. -
Page 3: Table Of Contents
Remote control..........................9 Remove Battery ........................... 9 Main Menu ..........................10 ◆Radio Player........................10 ◆USB/SD/MMC Interface ....................11 ◆TV Mode(only for SDR-656T)................... 12 ◆AV-IN Mode ........................13 ◆Setting Control ......................... 13 Other Functions ......................... 15 Troubleshooting guide........................ 16 Specification..........................17... -
Page 4: Accessories
Accessories Package contains the following accessories for installation and operation of the unit. (1) Washer, Spring 1 each Washer, M5 Nut (2) Mounting Strap (3) Bolt 5*20 (4) Screw 5*6 (5) Mounting Collar (6) Release Key (7) Screw 5*20 (8) Rubber Cushion Remote Control Warranty card ISO cable... -
Page 5: Installation/Un-Installation
Installation/Un-installation Note Before starting installation of the unit, make sure the wiring is connected properly. Use only the parts provided with the unit to ensure proper installation. The use of unauthorized parts may cause malfunction. Install the unit where it does not get in the driver’s way and will not injure the passenger in case there is a sudden stop, like an emergency stop. -
Page 6: Wiring Connections
Wiring Connections NOTE: Never connect cable to the system while it is connected to the battery power. Whenever the unit is disconnected from the battery, the preset memory will be erased and the unit will go back to its factory defaults. Note: To watch video the parking wire should be connected to break signal. - Page 7 Note: Only use groundless loudspeakers. Use only loudspeakers of minimal 40Watt, using fewer watts may result in damaging your loudspeakers at higher volumes. Use 4~8 Ω (Ohm impedance) loudspeakers only; using higher or lesser impedance may damage the unit. Do not use 3-cable loudspeakers and do not connect the loudspeakers minus to the car body (GND).
-
Page 8: Panel Control
3. MODE Button Press it to select the mode: Radio, USB (if there is a USB device in the unit), CARD (if there is a SD/MMC card in the unit), TV (For SDR-656T) and AV IN. 4. IR Sensor IR Remote control signal receiving window. Max distance is 6-8 meters, 45 angels. -
Page 9: Remote Control
Remote control 1: MENU 2: POWER 3: UP 4: BAND/M.SEL/RDM 5: ENTER 6: LEFT/SEEK-/FAST BACKWARD 7: DOWN 8: REPEAT/INT 9: AS/PS 10: MODE 11: DIGIT NUMBER 12: PLAY/PAUSE 13: MUTE 14: AUDIO 15: SUBTITLE 16: RIGHT/SEEK+/FAST FORWARD 17: VOLUME PLUS 18: SET 19: VOLUME MINUS 20: EQ/LOUD... -
Page 10: Main Menu

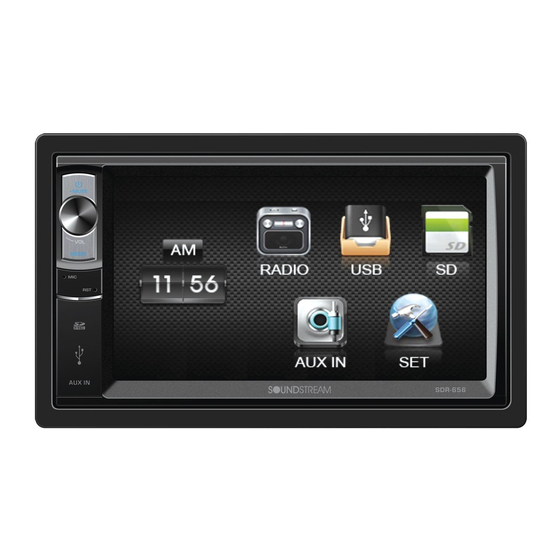

Main Menu The best way to discover the program is to explore each screen in detail, and to find out how to move from one to another. Read this chapter for a guided tour. Unit starts by displaying the Main menu. This is the root of the screen hierarchy, and you can simply access all features by tapping on the touch screen buttons. -
Page 11: Usb/Sd/Mmc Interface
◆USB/SD/MMC Interface To start USB /SD /MMC, tap the corresponding icon on main menu screen, or press the MODE button on the front panel or RC repeatedly. Touch it to turn to previous content Touch it to select music document folder Touch it to select photo document folder Touch it to select video document folder Touch it to pause the playback, touch again to resume. -
Page 12: Tv Mode(Only For Sdr-656T)
◆TV Model (only for SDR-656T) To start TV mode, tap on TV button from main menu screen. Connect a TV antenna to the TV antenna jack of the unit. Select TV mode; press on the center of the touch screen, and following interface will be display: 1. -
Page 13: Av-In Mode
System Select this menu item is to set TV system: SECAM => NTSC =>PAL, press NTER button on the remote or tap the screen to select. Audio Select this menu item is to set the TV sound system: When system setting PAL, press ENTER on remote or tap the screen button to select TV sound system: D/K=>M/N=>... - Page 14 LONDNESS: Selecting loudness ON will emphasize the low frequency output. BEEP: Keypad sound setting. Display Bright: set the LCD screen brightness up or down Contrast: set contrast up or down Saturation: set saturation up or down General Clock hour: select 12-hour or 24-hour clock display mode.
-
Page 15: Other Functions
When the car is stopped and the parking brake is working, the screen can display the video image, otherwise the screen can't display the video image Back View Camera (only for SDR-656T) This unit is equipped with back view camera output. The camera is used to observe the situation behind the vehicle when you are backing the car. -
Page 16: Troubleshooting Guide
Troubleshooting guide Symptom Cause Solution If the power supply is properly connected General The car ignition is not on. to the car accessory switch the ignition No power The fuse is blown. key to “ACC”. Replace the fuse. Volume is in minimum. Adjust volume to a desired level. -
Page 17: Specification
Audio specification Maximum output: 2 Vrms (+/- 3 dB) Frequency response: 20 Hz - 20 KHz TV Color System Color system NTSC/ PAL (only for SDR-656T) S/N ratio(A-vtd): 68 dB DSP sound effect: USER=> FLAT=> CLASSIC =>POP =>ROCK Line out...
