Pace MG1 Technical Specifications

Data Sheet
Versatile whole home hybrid QAM/IP headed media server
capable of supporting multiple IP clients.

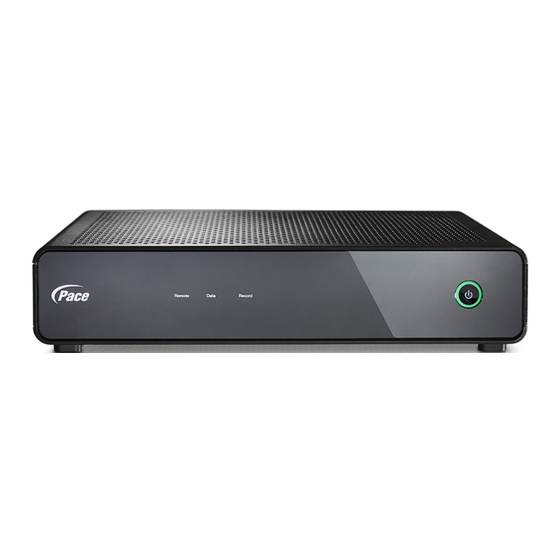

The Pace MG1 is a versatile whole home hybrid QAM/IP media
server capable of supporting local video decoding and multiple
connected IP clients. Content sharing and home networking are
supported by Ethernet and MoCA 2.0 interfaces. The product
also supports dual transcode for use with external devices as
well as a removable HDD for content storage.
The MG1 incorporates an industry leading 3000+ DMIPS processor
supported by 256MB of Flash and 1GB of SDRAM. A CableCARD
conditional access system provides for decryption of up to 6 QAM
streams. An additional 2 QAM demodulators are available for fast
channel change to enhance user experience.
The DOCSIS 3.0 cable modem supports 8 downstream and 4
upstream bonded channels for IP connectivity to the MG1 and
attached IP set-top boxes or other home devices. The MG1 also
includes a removable HDD that can be sized from 500GB to 2TB
to suit operator needs. In addition, an eSATA port allows for HDD
expansion.
The MG1 provides dual switched HDMI input ports to support source
devices such as Blu-ray players with the overlay of local graphics on
to content. CEC is implemented to allow control of devices connected
to the HDMI input and output ports.
MG1 Multi-tuner Video Gateway
Summary
• Video decode up to 1080p60
• CableCARD with support for decryption of 6 QAM streams
• 500GB to 2 TB removable HDD
• Support for external HDD via eSATA port
• 256MB of Flash memory
• 1GB of SDRAM
• Comprehensive and advanced device connectivity
• Front panel support for LED clock, channel display, record LED,
data LED, remote LED and power button
• IR and RF4CE remote support
• Power saving modes
• 3000+ Dhrystone MIPS Processor
• 5.1 Dolby Digital Plus
• MoCA 2.0
• SNMP and TR-069 support
• DOCSIS 3.0 8 x 4 cable modem
• Dual transcode
