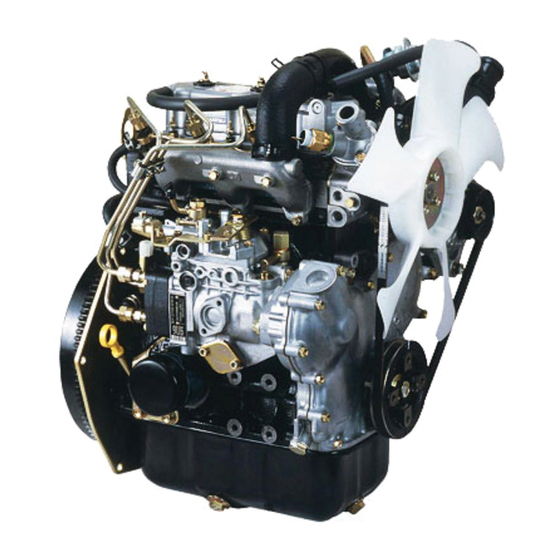

Briggs & Stratton Vanguard Diesel 432447 Operating & Maintenance Instructions
Diesel, turbocharged diesel
Hide thumbs
Also See for Vanguard Diesel 432447:
- Operating and maintenance instructions manual (77 pages) ,
- Operator's manual (20 pages)
Advertisement
Table of Contents
Diesel Model
Series
Covered in
432447
522447
582447
Turbocharged
Diesel Model
Series
Covered in
This Manual
588447
58A447
For future reference, write your Date of Purchase here.
TABLE OF CONTENTS
. . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Briggs & Stratton Daihatsu LLC
Milwaukee, Wisconsin 53201
www.briggsandstratton.com
. . . . . . . . . . . . . . . . .
10 - 11
. . . . . . . . . . . . . . . . . . . . .
Copyright 2001 by Briggs & Stratton Daihatsu LLC
Operating & Maintenance
4
Briggs & Stratton Daihatsu does not approve or authorize the
6
use of these engines on 3-wheel All Terrain Vehicles (ATVs),
7
motor bikes, aircraft products or vehicles intended for use in
competitive events. Use of these engines in such applications
8
could result in property damage, serious injury (including
9
paralysis), or even death.
For location of nearest Authorized B&S D Service Dealer
12
17
17
18
19
Instructions
WARNING
1-800-759-2744
Briggs & Stratton Daihatsu
Milwaukee, Wisconsin 53201
www.briggsandstratton.com
FORM NO. 820853-7/01
PRINTED IN U.S.A.
01999 - 87823
Advertisement
Table of Contents
Related Manuals for Briggs & Stratton Vanguard Diesel 432447
Summary of Contents for Briggs & Stratton Vanguard Diesel 432447
-
Page 1: Table Of Contents
Operating & Maintenance Instructions Diesel Model Series Covered in This Manual 432447 522447 582447 Turbocharged Diesel Model Series Covered in This Manual 588447 58A447 For future reference, write your Date of Purchase here. TABLE OF CONTENTS WARNING Safety Information ...... - Page 2 The Power That Works For You. Thank you for selecting a Briggs & Stratton engine to power your equipment. Briggs & Stratton is committed to producing a line of engines which will make your life’s chores easier to perform. We have, at the same time, improved the design of our engines so they are environmentally friendly.
-
Page 3: This Manual
820853 BEFORE OPERATING ENGINE Read entire Operating & Maintenance Instructions AND the instructions for the equipment this engine powers.* Failure to follow instructions could result in serious injury or death. THE OPERATING & MAINTENANCE INSTRUCTIONS CONTAIN SAFETY INFORMATION TO Make you aware of hazards associated with engines Inform you of the risk of injury associated with those hazards, and Tell you how to avoid or reduce the risk of injury. -
Page 4: Safety Information
SAFETY WARNING WARNING Fuel and its vapors are extremely flammable and Unintentional sparking can result in fire or electric explosive. shock. Fire or explosion can cause severe burns or death. Unintentional start-up can result in entanglement, traumatic amputation, or laceration. WHEN ADDING FUEL Turn engine OFF and let engine cool at least 2 BEFORE PERFORMING ADJUSTMENTS OR... - Page 5 SAFETY WARNING WARNING Engines give off carbon monoxide, an odorless, Rotating parts can contact or entangle hands, feet, colorless, poison gas. hair, clothing, or accessories. Breathing carbon monoxide can cause nausea, Traumatic amputation or severe laceration can fainting or death. result.
-
Page 6: Engine Information
GENERAL INFORMATION This is a three cylinder, liquid cooled engine. On mobile equipment, this engine will operate satisfactorily at any angle at which operator and equipment can function safely. MODEL SERIES 432447 MODEL SERIES 582447, 588447, 58A447 Bore ....... . -
Page 7: Oil
820853 OIL CAPACITY Oil capacity, including oil filter, is 3.5 quarts (3.3 liters). TYPE OF OIL TO USE SAE Viscosity Grades Use a high quality detergent oil classified “For Service CF, or CF-4”. Do not use special additives with recommended oils. Do not mix oil with fuel. -
Page 8: Fuel And Coolant
FUEL TYPE OF FUEL TO USE THIS ENGINE IS CERTIFIED TO OPERATE ON DIESEL FUEL. CAUTION: Do not use kerosene or Use clean, fresh, diesel fuel with a minimum of 40 cetane. gasoline instead of diesel fuel. Failure to Fresh fuel prevents gum from forming in the fuel system. observe this caution will damage the Purchase fuel in quantity that can be used within 30 days. -
Page 9: Gauges
GAUGES TYPICAL GAUGES (If Equipped) COOLANT TEMPERATURE GAUGE FUEL GAUGE To minimize condensation, keep fuel Indicates coolant temperature when the starter switch is ON. tank full. Normal range 80 -90 C (175 -195 F). Dangerous range above 105 C FUEL SHUT-OFF (220 F). -
Page 10: To Start Engine
STARTING STARTING IN COLD WEATHER: (below -10 C or 14 F) Use correct type of oil for expected starting Start with throttle control in FAST position. temperature. (See Oil.) Do not use fuel left over from summer. Use fresh fuel. Remove external equipment/engine loads. -
Page 11: Starting And Stopping
STARTING AND STOPPING CAUTION: To prolong starter life, use short starting cycles, not to exceed 30 secs./ min. Typical starter switch Typical starter switch Extended cranking can damage starter motor. [5]. When engine starts, release key, [4]. When GLOW light goes out, which will return to ON position. -
Page 12: Maintenance
MAINTENANCE MORE REGULAR MAINTENANCE WILL IMPROVE THE PERFORMANCE AND EXTEND THE LIFE OF THE ENGINE. FREQUENT SERVICE IS REQUIRED WHEN OPERATING IN ADVERSE CONDITIONS. See any Authorized Briggs & Stratton Dealer for service. Use only genuine Briggs & Stratton parts. Other parts may not perform as well, may damage the engine, and may result in injury. -
Page 13: Regular Maintenance
MAINTENANCE DAILY CHECKS continued CONTROL PARTS WARNING LIGHTS (Typical) To assure smooth operation, keep injector pump link- If fuel filter warning light comes on while en- age, springs and controls free of debris. Linkage should gine is running, stop engine and drain water move freely. - Page 14 MAINTENANCE REGULAR MAINTENANCE continued CHANGING OIL FILTER WARNING [1]. Perform this maintenance during oil change main- tenance. Drain engine oil as described for oil change, and remove oil filter. Disconnect battery at negative terminal. [2]. Before installing new filter, apply to filter gasket fresh, clean oil.
- Page 15 MAINTENANCE FUEL FILTER If the fuel filter warning light comes on while engine is running, stop engine and drain water from fuel filter. WARNING To drain water: [1]. Stop engine. [2]. Place a drain pan under fuel filter and loosen drain plug approximately 1 turn.
- Page 16 MAINTENANCE FAN BELT Check condition of fan belt. Replace if damaged or worn. BELT To check for correct fan belt tension When 22 lbs. (10 kg) of force is pressed at center of span between fan and alternator, there should be 3/8 – 1/2 in. (10 to 12 mm) of belt movement.
-
Page 17: Adjustments
ADJUSTMENTS LOCK NUT SPEED TO ADJUST THROTTLE CONTROL CONTROL LEVER IDLE [1]. Move equipment throttle control in SLOW or IDLE SPEED SCREW position. [2]. If lever does not contract idle speed screw, loosen casing clamp screw. [3]. Adjust casing clamp screw to allow speed control lever to contact idle speed screw. -
Page 18: Service
SERVICE PARTIAL LIST OF GENUINE BRIGGS & STRATTON PARTS Briggs & Stratton Daihatsu Part Numbers of some parts: Part Briggs & Stratton Daihatsu Part No. You may locate your nearest Authorized Briggs & Stratton Daihatsu Service Dealer in our dealer locator map on our web . -
Page 19: Warranty Information
For Model Series 432447, 522447 & 582447 Briggs & Stratton Daihatsu L.L.C. (B&S D), the California Air Resources Board (CARB) and the United States Environmental Protection Agency (U.S. EPA) Emission Control System Warranty Statement (Owner’s Defect Warranty Rights and Obligations) - Page 20 Briggs & Stratton Daihatsu Emission Control Defects Warranty Provisions The following are specific provisions relative to your Emission Control Defects Warranty Coverage. It is in addition to the B&S D engine warranty for non-regulated engines found in the Operating & Maintenance Instructions. 1.
- Page 21 For Model Series 588447 & 58A447 Briggs & Stratton Daihatsu L.L.C. (B&S D), the California Air Resources Board (CARB) and the United States Environmental Protection Agency (U.S. EPA) Emission Control System Warranty Statement (Owner’s Defect Warranty Rights and Obligations) EMISSION CONTROL WARRANTY COVERAGE IS APPLICABLE TO CERTIFIED MODEL YEAR 2001 AND LATER ENGINES, WHICH ARE PURCHASED AND USED IN CALIFORNIA, AND TO CERTIFIED MODEL YEAR 2001 AND LATER ENGINES, WHICH ARE PURCHASED AND USED ELSEWHERE IN THE UNITED STATES.
- Page 22 Briggs & Stratton Daihatsu Emission Control Defects Warranty Provisions The following are specific provisions relative to your Emission Control Defects Warranty Coverage. It is in addition to the B&S D engine warranty for non-regulated engines found in the Operating & Maintenance Instructions. 1.
- Page 23 ABOUT WARRANTY ON YOUR ENGINE: NOTE: See Next Page For Statement Of Limited Warranty. Briggs & Stratton Daihatsu welcomes warranty repair and THIS WARRANTY COVERS ENGINE RELATED DEFEC- apologizes to you for being inconvenienced. Any Authorized TIVE MATERIAL AND/OR WORKMANSHIP ONLY, AND Briggs &...
- Page 24 BRIGGS & STRATTON DAIHATSU ENGINE WARRANTY POLICY effective January 1, 1995 LIMITED WARRANTY “Briggs & Stratton Daihatsu LLC will repair or replace for the original purchasers, free of charge, any part, or parts of the engine that are defective in material or workmanship or both. Transportation charges on parts submitted for repair or replacement under this Warranty must be borne by purchaser.
