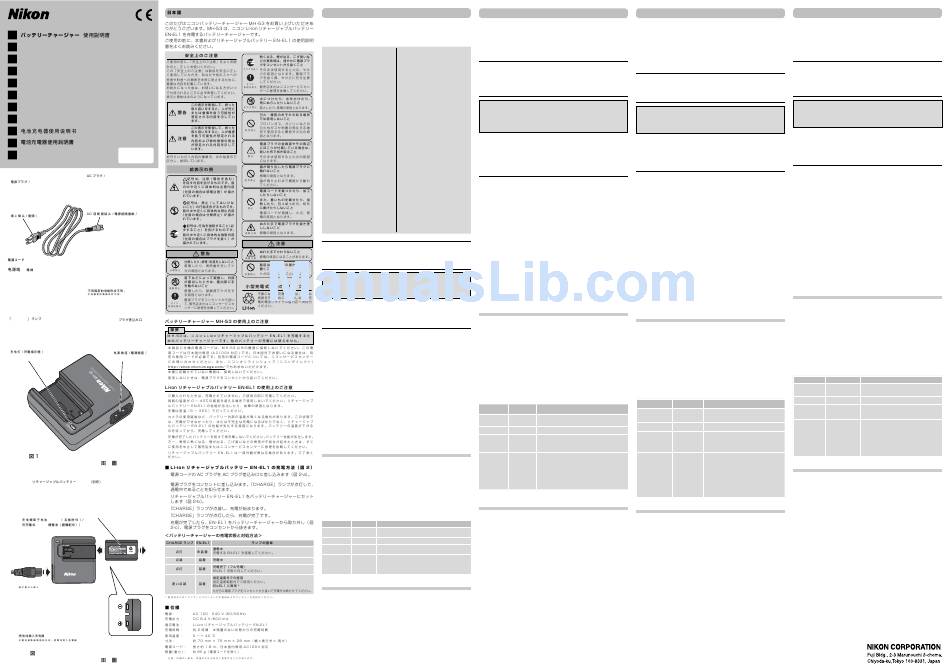

MH-53
Jp
Battery Charger Instruction Manual
En
Akkuladegerät Bedienungsanleitung
De
Chargeur d'accumulateur Fiche Technique
Fr
Cargador de baterías Manual de instrucciones
Es
Instruktionshandbok för batteriladdare
Se
Batterijlader Gebruikshandleiding
Nl
Caricabatterie Manuale di istruzioni
It
Ck
Ch
Printed in Japan
배터 배터리충전기 사용설명서
Kr
SB7B03(B1)
6MAK04B1-- ■
AC adapter plug/
Netzgerätestecker/
Wall plug/Netzstecker/
Fiche secteur pour MH-53/
Fiche secteur murale/
Enchufe del adaptador a la corriente/
Enchufe de Pared/
AC-adapterkontakt/
Stickpropp/
Stekker lichtnetadapter-zijde/
Stekker stopcontact-zijde/
Connettore a due poli/
Presa a rete/
AC 플러그
전원플러그
/ Power cable* / Netzkabel* / Cordon d'alimentation* /
Cable de corriente* / Kabel* / Netsnoer* / Cavo di alimentazione*/
* / 전원코드*
* /
* Shape of cable depends on country.
* De vorm van het snoer hangt af van het land
* Das mit Ihrem Ladegerät mitgelieferte Netz-
van aankoop.
kabel kann von der hier gezeigten Abbildung
* La forma del cavo di alimentazione dipende
abweichen.
dal paese di uso.
* La forme du câble dépend du pays d'utilisation.
*
* La forma del cable depende del país en el que
*
se haya adquirirdo.
* 구입하는 국가에 따라 전원코드의 모양이 다른 경우가
* Kabelns form är landsspecifi k.
있습니다.
CHARGE
/
AC
/
CHARGE lamp/
AC inlet/
Anzeige: Aufl aden (CHARGE)/
Anschuß für Netzkabel/
❢
Voyant CHARGE/
Connecteur électrique/
Indicador luminoso CHARGE/
Entrada CA/AC-ingång/
Laddningslampa/CHARGE-lampje/
Netznoer aansluiting/
Spia di CHARGE/
•
Ingresso AC/
「CHARGE」램프
AC 플러그 삽입구
•
•
•
•
•
•
•
•
•
/Figure 1/Abbildung 1/Figure 1/Figura 1/
Figur 1/Figuur 1/Figura 1/
1 / 1/그림1
1
Li-ion
EN-EL1
/
2
Rechargeable Li-ion Battery EN-EL1 (sold separately)/
Wiederaufl adbarer Lith i um-Ionen-Akku EN-EL1 (als Zubehör erhältlich)/
Accumulateur rechargeable au Li-ion EN-EL1 (Optionnel)/
3
Batería recargable de ion de Litio EN-EL1 (se vende por separado)/
Uppladdningsbart litiumjonbatteri EN-EL1 (säljes separat)/
Oplaadbare Li-ion batterij EN-EL1 (Apart verkrijgbaar)/
Batteria ricaricabile agli ioni di litio EN-EL1 (acquistabile separatamente)/
EN-EL1
4
EN-EL1
Li-ion 충전식배터리 EN-EL1(별매)
CHARGE
a
b
c
MH–53
LITHIUM ION BATTERY CHARGER
Slide the battery into the charger terminals fi rst
Legen Sie den Akku zuerst in das Ladegerät ein
En premier lieu, glissez la batterie dans le chargeur
Deslice la batería dentro del cargador con los ter mi na les
por delante
Skjut in batteriet i laddningsterminalerna först
Schuif de aansluitpunten van de batterij het eerst in de lader
Fate scorrere la batteria nell'alloggiamento ri spet tan do
l'orientamento dei contatti
단자측에서 삽입
2/Figure 2/Abbildung 2/Figure 2/Figura 2/
•
Figur 2/Figuur 2/Figura 2/
2 / 2/그림2
En glish
Thank you for your purchase of an MH-53 Bat tery Charg er. The MH-53 is
used to re charge Nikon EN-EL1 re charge able lith i um-ion batteries.
Before use, read the warnings and other in for ma tion in this manual and in
the doc u men ta tion for your Nikon EN-EL1 re charge able battery.
Notices for customers in the U.S.A.
Federal Communications Com mis sion
(FCC) Radio Frequency Interference
Statement
This equipment has been tested and found
to comply with the limits for a Class B digi-
tal device, pursuant to Part 15 of the FCC
rules. These limits are designed to provide
rea son able pro tec tion against harmful in-
ter fer ence in a res i den tial in stal la tion. This
equip ment gen er ates, uses, and can radiate
radio fre quen cy energy and, if not installed
and used in ac cor dance with the instruc-
tions, may cause harmful in ter fer ence to
radio com mu ni ca tions.
How ev er, there
is no guar an tee that in ter fer ence will not
occur in a par tic u lar in stal la tion. If this
equipment does cause harmful in ter fer ence
to radio or television reception, which can
be de ter mined by turn ing the equipment
off and on, the user is en cour aged to try to
correct the in ter fer ence by one or more of
the fol low ing mea sures:
• Reorient or relocate the receiving an-
ten na.
• Increase the separation between the
equip ment and receiver.
• Connect the equipment to an outlet on
a circuit different from that to which the
receiver is con nect ed.
• Consult the dealer or an experienced
radio/TV technician for help.
CAUTIONS
Modifi cations
The FCC requires the user to be notifi ed
that any changes or modifi cations made to
this device that are not expressly approved
by Nikon Corporation may void the user's
au thor i ty to operate the equipment.
Safety Precautions
To ensure proper operation, read this manual thoroughly before using this
product. After reading, be sure to keep it where it will be read by all those
who use the product.
Precautions for Use : MH-53 Battery Charger
✔ IMPORTANT
The Nikon MH-53 can be used to re charge Nikon EN-EL1 re charge able
lith i um-ion bat ter ies only. Do not at tempt to recharge any other
batteries with the MH-53.
• Do not connect the product to any device not spe cifi cal ly referred to in
this manual.
• Remove the power cable from the power outlet when not in use.
Precautions for Use : Nikon EN-EL1 Rechargeable Li-ion Battery
• The battery is not fully charged at the fac to ry. Charge the battery before
use.
• When recharging the battery, the ambient temperature should be be-
tween 0–40°C (32–104°F) or the battery may not fully charge or may
not function properly.
• When recharging, the ambient tem per a ture should be in the vicinity of
5–35ºC (41–95ºF).
• The internal temperature of the bat tery may rise while the battery is in
use. If you attempt to recharge the battery while the internal tem per a ture
is elevated, the bat tery will not charge or will charge only partially. The
battery may also not function properly. Wait for the battery to cool
before charging.
• Do not attempt to recharge a fully-charged battery. Failure to observe
this precaution will result in re duced battery performance.
• Should you notice smoke or an unusual smell coming from the charger,
unplug it, taking care to avoid burns. Take the charger to a Nikon rep-
resentative for inspection.
• The external appearance of the EN-EL1 may differ slightly from the il-
lustration.
Recharging Nikon EN-EL1 Re charge able Li-ion Batteries
(Figure 2)
1
Plug the power cable into the battery charg er (Fig ure 2-a).
2
Plug the power cable into a power outlet. The CHARGE lamp will start
to glow.
3
Place the Nikon EN-EL1 battery in the bat tery bay. The CHARGE lamp
will start to blink. Charg ing is com plete when the CHARGE lamp con-
tinues to glow (Fig ure 2-b).
4
Once charging is complete, remove the EN-EL1 (Fig ure 2-c) and unplug
the pow er ca ble from the power source.
Battery charger recharging state and rec om men da tions
CHARGE lamp Nikon EN-EL1
Charger plugged in
Glows
Not inserted
Insert an EN-EL1 re charge able bat tery.
Blinks
Inserted
The battery is recharging
Charging is com plete (bat tery is full)
Glows
Inserted
Remove the bat tery from the MH-53 as de scribed above.
Temperature is outside the designated range
Use the charger in side the des ig nat ed tem per a ture range.
Flickers
Inserted
The EN-EL1 has mal func tioned *
Stop recharging the bat tery immediately and un plug the charg er.
* Take the charger and battery back to your retailer, or to your Nikon representative.
Specifi cations
Rated input:
AC 100–240V (50/60 Hz)
Charging output:
DC 8.4 V/600 mA
Applicable batteries:
Nikon EN-EL1 Re charge able Li-ion Battery
Charging time:
Approximately 2 hours
–
Operating temperature:
0–40°C (+32–104°F)
Dimensions (W × D × H): Approximately 70 mm × 75 mm × 28 mm
(2.8˝ × 3.0˝ × 1.1˝)
Length of cord:
Approximately 1800 mm (70.9˝)
Weight:
Approximately 85 g (3.0 oz), excluding power cable
Improvements to this product may result in un an nounced chang es to spec i fi ca tions and
external ap pear ance.
