6. Performance Description
■ Operating Description of BGMA
This chapter describes the BGMA operation.
6.1 Debug Function
Open the project file in S
to the debug. The following shows the supplemental description about the special settings.
6.1.1 ICE Type
Select, the ICE type MB2146-07.
6.1.2 Monitor Program Auto-load
If a user wants to update the internal program code for the BGMA when starting debugging, check
Setup Wizard Dialog Box in Monitor Program Auto-load, as shown in Figure 3.
6.1.3 Device Type
Select the device name to USB in Type Field, as shown in Figure 4 below.
Workbench which supports New 8FX and execute the setup related
OFTUNE

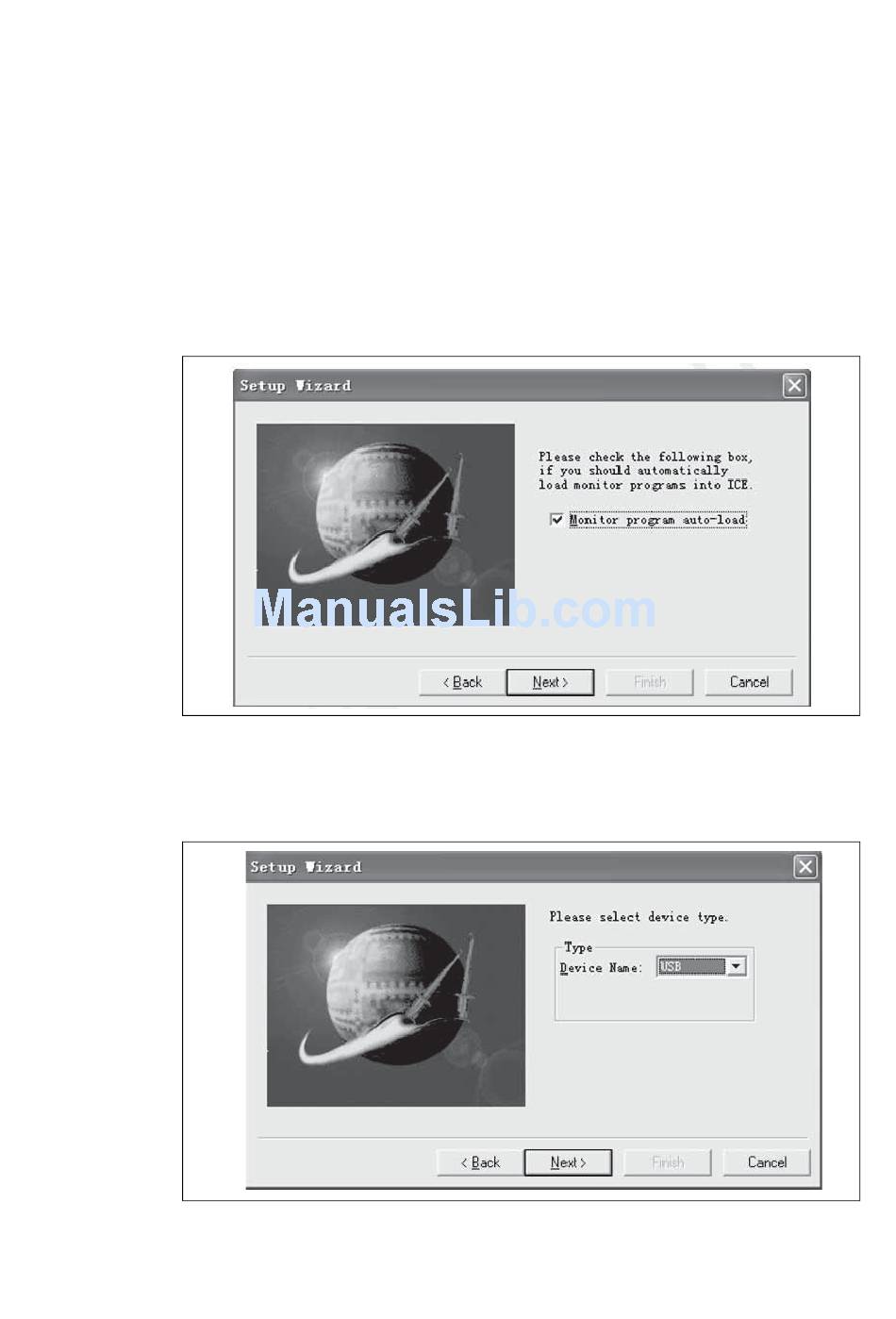

Figure 3 Monitor Program Auto-load
Figure 4 Device Type
7
