Operating Principles - Renault CARMINAT TOMTOM Handbook

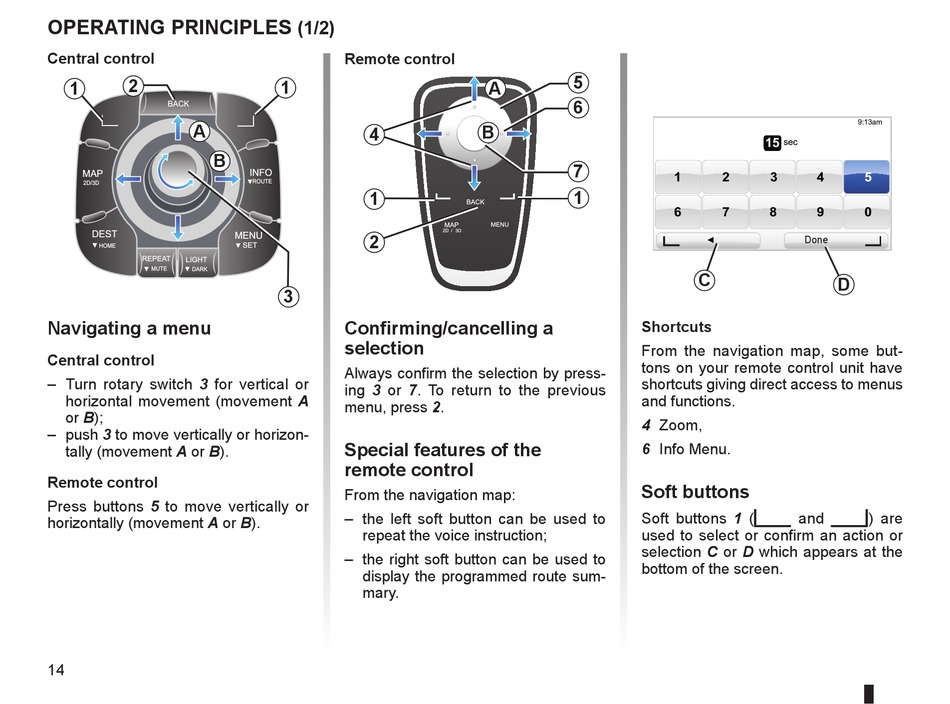

oPerating PrinciPLes

central control
2
1
BACK
BACK
a
B
MAP
2D/3D
DEST
HOME
REPEAT
LIGHT
MUTE DARK
navigating a menu
central control
– Turn rotary switch 3 for vertical or
horizontal movement (movement A
or B);
– push 3 to move vertically or horizon-
tally (movement A or B) .
remote control
Press buttons 5 to move vertically or
horizontally (movement A or B) .
14
(1/2)
remote control
1
4
INFO
ROUTE
1
MENU
2
SET
3
confirming/cancelling a
selection
Always confirm the selection by press-
ing 3 or 7 . To return to the previous
menu, press 2 .
special features of the
remote control
From the navigation map:
– the left soft button can be used to
repeat the voice instruction;
– the right soft button can be used to
display the programmed route sum-
mary .
5
a
6
B
7
1
shortcuts
From the navigation map, some but-
tons on your remote control unit have
shortcuts giving direct access to menus
and functions .
4 Zoom,
6 Info Menu .
soft buttons
Soft buttons 1 (
used to select or confirm an action or
selection C or D which appears at the
bottom of the screen .
15
sec
1 2 3 4
6 7 8 9
Done
c
d
ṅ Ṅ
and
9:13am
5
0
) are
