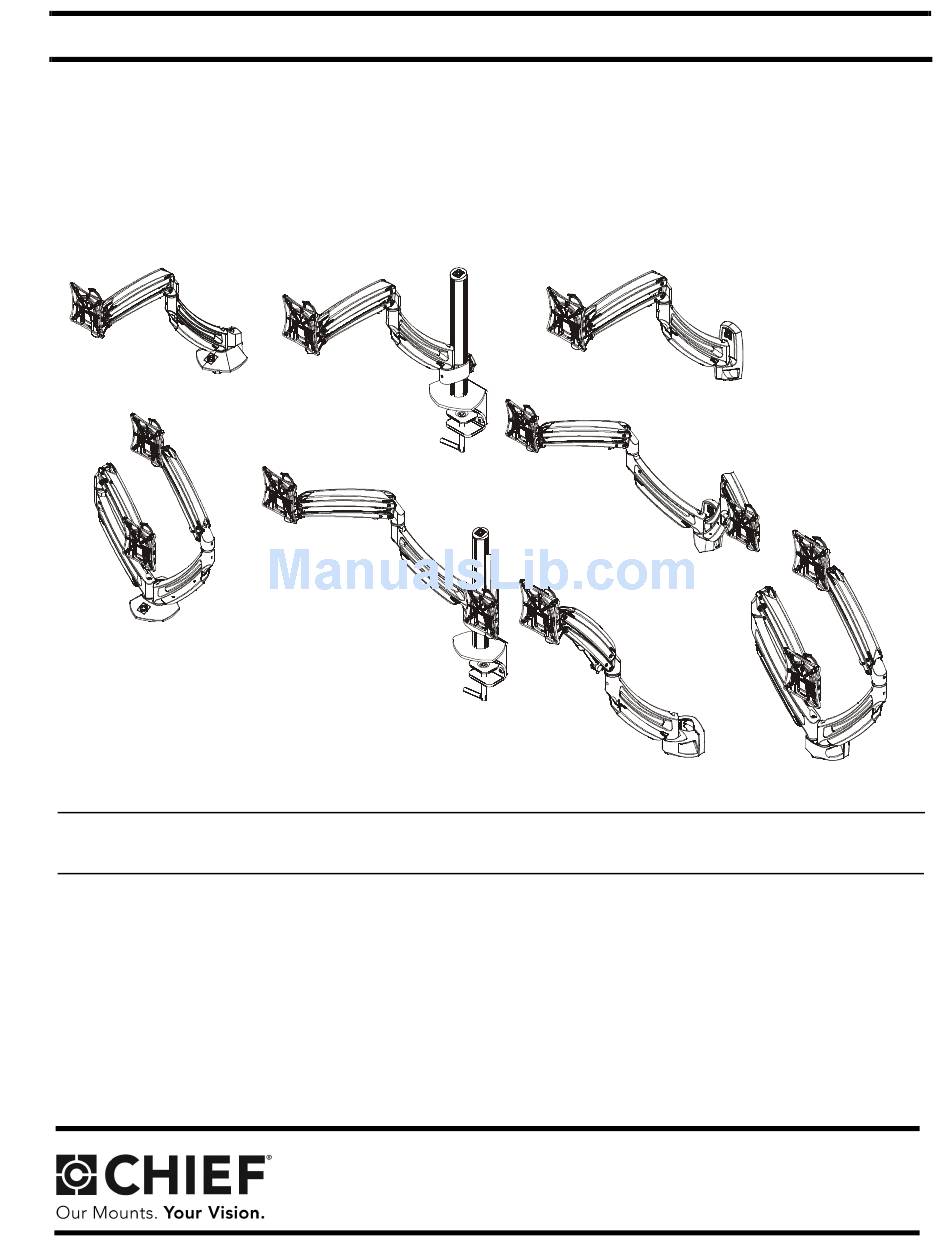

- Page 1 I N S T A L L A T I O N I N S T R U C T I O N S Instrucciones de instalación Istruzioni di installazione Installationsanleitung Installatie-instructies Instruções de Instalação Instructions d´installation K1D100 K1W100 K1C100 K1W200 K1D200 K1C200 K1P100...
-
Page 2: Installation Instructions
Do not use this product outdoors. no responsibility for accuracy, completeness or sufficiency of the information contained in this document. --SAVE THESE INSTRUCTIONS!-- Chief® is a registered trademark of Milestone AV Technologies. All rights reserved. IMPORTANT SAFETY INSTRUCTIONS! WARNING: A WARNING alerts you to the possibility of serious injury or death if you do not follow the instructions. - Page 3 Installation Instructions K1 Series DIMENSIONS K1D100 3.94 EXTENSION 2.95 MIN 2.09 [53.14] MAX 19.9 [505.5] 90 INTERFACE CABLE ROTATION MANAGEMENT PITCH RANGE COVER QUICK RELEASE 10 DOWN VESA INTERFACE 75 UP PITCH TENSION ADJUSTMENT 14.70±6.5 CABLE MANAGEMENT COVER DESKTOP THICKNESS RANGE 19.05...
- Page 4 K1 Series Installation Instructions DIMENSIONS (CONTINUED) K1W100 188.1 7.41 QUICK RELEASE 3.94 VESA INTERFACE EXTENSION MIN 2.09 [53.2] 90 INTERFACE MAX 19.9 [505] 2.95 ROTATION PITCH RANGE CABLE 10 DOWN 75 UP MANAGEMENT COVER PITCH TENSION ADJUSTMENT 284.9 11.22 HEIGHT ADJUSTMENT 15.71 399±165.1...
- Page 5 Installation Instructions K1 Series DIMENSIONS (CONTINUED) K1C100 7.41 LOWER PROFILE INSTALL 3.94 90 INTERFACE QUICK RELEASE ROTATION 2.95 VESA INTERFACE CABLE MANAGEMENT PITCH RANGE COVER 10 DOWN 75 UP 13" LIFT ARM HEIGHT PITCH TENSION ADJUSTMENT ADJUSTMENT TOTAL HEIGHT ADJUSTMENT LOWER PROFILE 32.86 [834.6]...
- Page 6 K1 Series Installation Instructions DIMENSIONS (CONTINUED) K1P100 POLE CLAMP RANGE 1.50" - 1.90" [38.1 - 50.8] 188.1 7.41 2.297 (MAX 19.12) QUICK RELEASE VESA INTERFACE 3.94 90 INTERFACE 2.95 ROTATION PITCH RANGE CABLE 10 DOWN MANGEMENT 75 UP COVER PITCH TENSION ADJUSTMENT 13.60±6.50 HEIGHT ADJUSTMENT...
- Page 7 Installation Instructions K1 Series LEGEND Tighten Fastener Pencil Mark Apretar elemento de fijación Marcar con lápiz Befestigungsteil festziehen Stiftmarkierung Apertar fixador Marcar com lápis Serrare il fissaggio Segno a matita Bevestiging vastdraaien Potloodmerkteken Serrez les fixations Marquage au crayon Loosen Fastener Drill Hole Aflojar elemento de fijación Perforar...
-
Page 8: Tools Required For Installation
TOOLS REQUIRED FOR INSTALLATION 3/16" (included) 1/8" (included) 5/32" (included with K1P Series only) PARTS A (1) [monitor arm] (K1D100 shown) *8 screws and spacers B (4 or 8)* C (4 or 8)* D (4 or 8)* included with dual arm mounts M4x25mm M4x14mm M10x5.3x10... -
Page 9: Assembly And Installation
Installation Instructions K1 Series Assembly And Installation Low Profile Installation (K1C Series Only) Remove top cap from column. (See Figure 3) Connecting K1C Series (column mount) to Desk Slide mount assembly off of column. (See Figure 3) Standard Installation Loosen clamp screw until enough space is created between clamp and mount to allow for desk mounting.(See Figure 1) NOTE: If space is limited behind desk (i.e. - Page 10 (See Figure 8) to grommet holes as detailed here, it is recommended Reinstall button head cap screw into clamp and tighten until that Chief’s KRA202 grommet accessory be used for a secure. (See Figure 8) more secure mount. NOTE:...
- Page 11 Installation Instructions K1 Series set screw side view (F) x 2 (G) x 2 Figure 9 Connecting K1W Series (wall mount) to Wall Determine mounting location on wall. Use a stud finder to locate 2" x 4" wood stud. (J or K) x 4 Use wall bracket to mark and drill two 3/16 x 2 1/2"...
-
Page 12: Display Installation
K1 Series Installation Instructions Display Installation For recessed mounting hole installation: • Place four spacers (D) on top of mounting holes Remove quick release faceplate from mount by pressing quick release tab and sliding faceplate off mount. (See on back of display. (See Figure 13) Figure 11) •... - Page 13 K1 Series Adjustments Pivot Adjustment Range Head Tilt Adjustment Single Arm Models (K1D100, K1C100, K1W100 and K1P100) Adjust head tilt to desired tilt position. (See Figure 15) Adjust arm angle as desired up to 90 degrees in either Adjust head tilt tension screw to change the adjustment direction.
-
Page 14: Cable Management
K1 Series Installation Instructions Portrait Adjustment The monitor may be adjusted 90 degrees in either direction in order to provide a portrait view of the monitor. (See Figure edge of desk or wall face (top view) 90 degrees range perpendicular centerline of motion per arm Figure 17 Column Height Adjustment (K1C Series only) -
Page 15: Display Removal
Installation Instructions K1 Series Display Removal WARNING: Only remove display from mount when the display can be lifted up from the mount! DO NOT remove cable (typical) display unless the display is in the upright position! (See Figure 22) Make sure display is in the upright position. Remove quick release faceplate from mount by pressing quick release tab and sliding faceplate off mount. - Page 16 Europe A Franklinstraat 14, 6003 DK Weert, Netherlands P +31 (0) 495 580 852 F +31 (0) 495 580 845 Chief Manufacturing, a products division Asia Pacific A Office No. 1 on 12/F, Shatin Galleria of Milestone AV Technologies 18-24 Shan Mei Street...
