Overview
The 8/8 Base SAN Switch and 8/8 SAN Switch are targeted for small to medium sized enterprises and are ideal for entry-level SANs, and
as an edge switch for core-to-edge SAN environments. The 8/8 Base SAN Switch and 8/8 SAN Switch provide SAN connectivity that
simplifies IT management infrastructures, improves system performance, maximizes the value of virtual server deployments, and
reduces overall storage costs.
The 8/8 SAN Switch integrates innovative hardware and software features that make it easy to deploy, manage, and integrate into a
wide range of IT environments. The 8 Gbit/sec Fibre Channel 8/8 Base SAN Switch provides a simple, affordable, single-switch solution
for a new, small SAN installation and connects to storage and servers only. An optional Full Fabric SAN scaling license provides
connectivity to other switches. The 8/8 SAN Switch has 8 active ports and can be connected to multiple switches and scale to full fabric
limits as defined in the SAN Design Guide. Both new 8 port switches provide growth options with Ports On Demand, the ability to
activate additional ports in 8 port increments to a maximum of 24 ports. This provides the flexibility to start small and grow storage
networks in a non-disruptive manner. In addition, organizations can choose to initially deploy 4 Gbit/sec SFPs and upgrade to 8
Gbit/sec SFP+ at a later date when necessary.
The 8/8 SAN Switch significantly increases performance and functionality for SANs at an entry-level price. The 8/8 SAN Switch provides
auto-sensing 1, 2, 4, and 8 Gbit/sec full duplex performance to enable up to 128 Gbit/sec of uncongested throughput. Auto-sensing
and speed-matching of data traffic provides interoperability with previous 1, 2, and 4 Gbit/sec devices. To provide more targeted
performance, enhanced Inter-Switch Link (ISL) Trunking combines up to eight ISLs between a pair of switches into a single, logical high-
speed trunk capable of up to 64 Gbit/sec of throughput. The evolutionary design provides these capabilities while consuming less than
2.5 watts of power per port for exceptional power and cooling efficiency.
An optional enhanced Power Pack+ software bundle can be purchased separately and includes Fabric Vision, Fabric Watch, ISL
Trunking, Extended Fabric and Advanced Performance Monitor. The software bundle provides the SAN administrator with the
necessary tools to proactively monitor the health and performance thresholds of the network, while also ensuring the highest levels of
security, scalability and manageability. Power Pack+ software enables infrastructure management through a single-pane-of-glass.
What's New
New RoHS compliant HP SAN switches
NOTE: Restriction of Hazardous Substances Directive or RoHS is a directive adopted by the European Union that restricts the use of
certain hazardous materials in the manufacture of various types of electronic and electrical equipment. The RoHS compliant products
with new part numbers listed in this document are functionally equivalent to the corresponding products with old part numbers and are
fully interchangeable

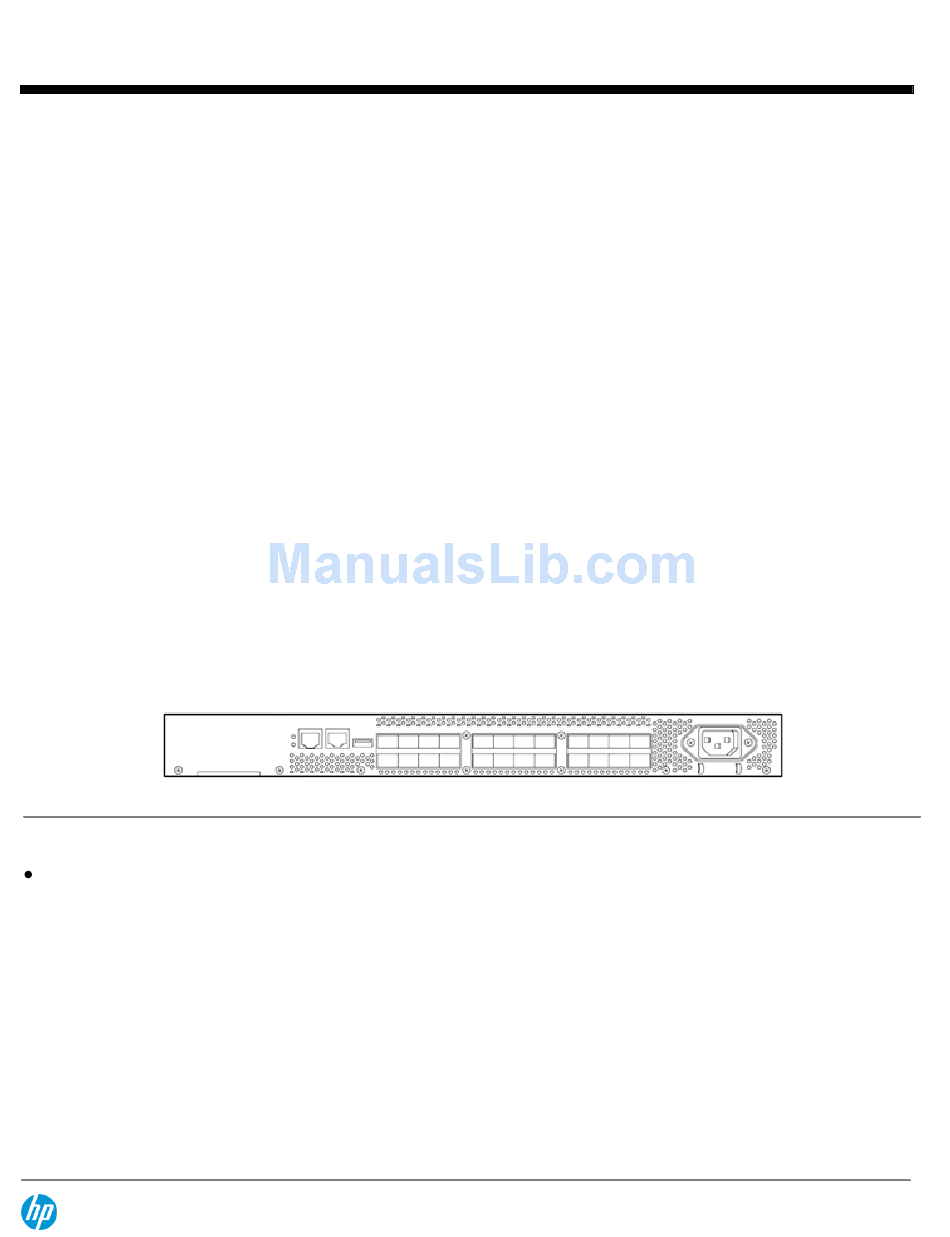

The 8 port 8 Gb/s 8/8 Base SAN Switch
DA - 13042 Worldwide — Version 21 — December 9, 2013
HP 8/8 Base SAN Switch and 8/8 SAN Switch Family
Page 1
