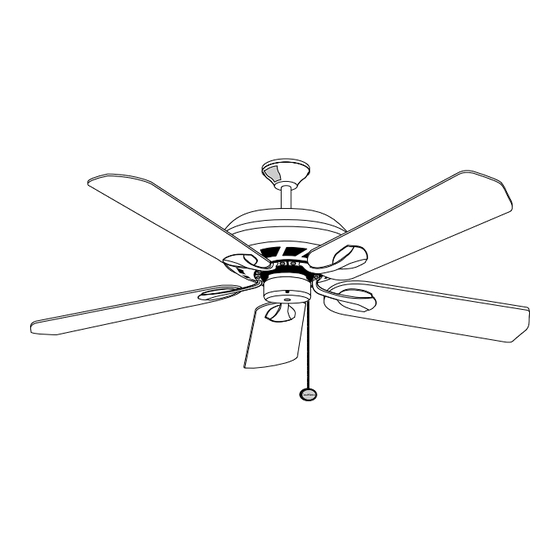

Casablanca C CasablancaCAPISTRANO Owner's Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

INTRODUCTION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
MOUNTING RECOMMENDATIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
PREPARATION INSTRUCTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
FAN INSTALLATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
CONTROL FEATURES:
3-SPEED OPERATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
TROUBLESHOOTING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
VERSA•TOUCH 2 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Safety and the proper operation of your Casablanca fan both require a thorough knowledge of the
product and proper installation; therefore, before attempting to install and operate your Casablanca
fan, read this owner's manual completely and carefully. Retain this manual for future reference.
CAUTION: To avoid possible electrical shock, make certain that electricity is turned off
at the circuit breaker or fuse box before attempting any installation procedure.
• CAUTION: RISK OF ELECTRICAL SHOCK! All wiring must be performed in accordance with national and local electrical
codes. If you are unfamiliar with the wiring codes, you should use a qualified electrician. To avoid overheating and
possible damage to other equipment, do not install control to a receptacle, fluorescent light fixture, motor operated
appliance, or transformer-supplied appliance.
• This fan is designed to be installed on an existing electrical outlet box. The outlet box must be UL Listed for ceiling fan
installations, if it is not, a new box must be installed. Casablanca extension poles are available for sloped or high ceiling
installations.
• This ceiling fan requires a grounded electrical supply of 120 VAC, 60 Hz and a minimum 15 amp circuit. The maximum
current requirement for the fan with light fixture is 3.8 amps. The fan uses about 1 amp or 100 watts. Maximum light
current is 2.8 amps or 340 watts of lighting.
• Where wire nuts are employed, be sure all bare wires are within the connectors. When installing the canopy hatch, make
sure all wires are within the canopy and that no wires are being pinched.
use only genuine Casablanca blades, light fixtures, and accessories.
• The blades in each pack are matched for equal
weight to assure smooth fan operation. If
more than one fan is being installed, be
careful not to mix blades from different
cartons.
• Inspect the contents of your carton for
possible shipping or handling damage and
report any such damage directly to your
authorized Casablanca dealer.
• It is always a good idea to have an assistant
to help with the installation.
• When cleaning, painting, or working near
your fan, be very careful of the fan and blades.
Always turn the power OFF to the ceiling fan
before servicing it, working on it, or replacing
light bulbs.
• Never insert anything into the path of the
fan blades while the fan is in operation.
• Never install a fan over a pool or spa.
• Never operate a fan that has been damaged
in any way. Contact Casablanca Fan Company
by calling toll free 1-888-227-2178, or
contact your local authorized Casablanca
dealer for assistance in obtaining service.
CONTENTS
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
READ AND SAVE THESE INSTRUCTIONS

SAFETY FIRST

BEFORE YOU START

For best performance and for your warranty to be valid,

SAFE USE

(REMOVE FUSE FOR THE
CIRCUIT YOU WILL BE
(TRIP BREAKER FOR THE
CIRCUIT YOU WILL BE
PN 46U43001
FUSE BOX
WORKING ON)
CIRCUIT BREAKER
WORKING ON)
AT1108
18
70
84
1

Advertisement

Table of Contents
loading

Related Manuals for Casablanca C CasablancaCAPISTRANO

Summary of Contents for Casablanca C CasablancaCAPISTRANO

  • Page 1: Table Of Contents

    • This fan is designed to be installed on an existing electrical outlet box. The outlet box must be UL Listed for ceiling fan installations, if it is not, a new box must be installed. Casablanca extension poles are available for sloped or high ceiling installations.

  • Page 2: Mounting Recommendations

    MOUNTING RECOMMENDATIONS Before mounting your Casablanca fan, read the following helpful recommendations. The location of the fan, air circulation, and fan size are all important factors to consider before installation. Location Ceiling fans have practical uses in almost every room in your home. We suggest you follow these mount- ing recommendations as you decide where to install your Casablanca fan.

  • Page 3: Preparation Instructions

    If you do not have an existing fixture located where you wish After turning the power OFF at its source (either circuit breaker to place your Casablanca fan, an approved ceiling fixture or fuse box), lower the old fixture and disconnect the wiring.

  • Page 4: Fan Installation

    ™ APISTRANO Casablanca CROSSBAR MOUNTING BRACKET INSTALLATION Proceed with installation as follows: CEILING FAN APPROVED Step 1. Route the wires from the ceiling outlet box through OUTLET BOX the crossbar mounting bracket center hole. Attach the bracket, with ground wire and ridges down, to the ceiling fixture out- let box with the mounting hardware included with the outlet box.
  • Page 5 ™ APISTRANO HANGING THE FAN Casablanca Step 3. To hang the fan body in the canopy, hold the fan body firmly and in- sert the ball into the canopy opening. Check that no wires were pinched. Ro- tate the fan body until the slot in the ball fits into the pin opposite the canopy opening.
  • Page 6 ™ APISTRANO Casablanca INSTALLING THE BLADE/BLADE HOLDER TO FAN MOTOR PREPARATION Step 8. To reach the blade holder mounting holes in the fan motor the dummy switch housing must be removed. Take out the two 5-32 X ” screws secur- ing the dummy switch housing and remove.

  • Page 7: Blade Installation

    ™ APISTRANO Casablanca BLADE INSTALLATION Step 10. Attach each blade to a blade holder securing it with the four blade screws provided. Using the screwdriver, tighten securely BLADE SCREW by hand only. (4 PER BLADE) BLADE BLADE HOLDER REMOVE SHIPPING BLOCKS Step 11.

  • Page 8: Completing Installation

    ™ APISTRANO Casablanca COMPLETING INSTALLATION SWITCH HOUSING MOUNT SCREW (REMOVED IN STEP 8) VERSA•TOUCH 2 3-SPEED 5-32 X SWITCH HOUSING SWITCH HOUSING AND CAP ASSEMBLY AND CAP ASSEMBLY PREPARATION VERSA•TOUCH 2 3-SPEED SWITCH HOUSING Step 13. Locate the switch housing/cap...
  • Page 9 ™ APISTRANO Casablanca INSTALLING THE SWITCH HOUSING ASSEMBLY VERSA•TOUCH 2 3-SPEED Step 16. Line up the two inner clear- ance holes in the cap with the two threaded holes in the switch mounting plate standoffs. CAUTION! Before continuing to the...

  • Page 10: 3-Speed Operation

    3-SPEED OPERATION Pull-chain switches on the fan control the fan and lights. OPTIONAL LIGHT FAN & SPEED Using the fan control pull-chain switch: Fan off at start. PULL CHAIN CONTROL First pull: fan ON, low speed SWITCH PULL CHAIN SWITCH Second pull: medium speed Third pull: high speed Fourth pull: fan OFF...
  • Page 11 3-SPEED W-40 WALL CONTROL OF THE FAN • The W-40 allows the choice of four (4) different speed settings. • No light fixture is used. • Set the FAN pull chain switch to the HIGH speed setting. • No changes in household or fan wiring are required.

  • Page 12: Troubleshooting

    Never Lubricate this Fan! should be used to prevent scratching the finish. A vacuum cleaner The precision motor at the heart of your Casablanca fan features brush nozzle can remove heavier dust. Surface smudges or an accu- sealed bearings that are lubricated for life. Do not attempt to oil mulation of dirt and dust can easily be removed by using a mild the motor.
  • Page 13 Changes or modifications not expressly ap- This device complies with RSS-210 of Industry Canada. Operation is subject to proved in writing by Casablanca Fan Co. may the following two conditions: (1) this device may not cause interference, and void the user’s authority to operate this (2) this device must accept any interference, including interference that may equipment.
  • Page 14 VERSA•TOUCH 2 OPERATION SEND SIGNAL Fan Control LIGHT To start the fan. Press the selected speed button to run the fan at the desired speed. LO=Low speed MED=Medium speed HI=High speed To turn off the fan. Press the FAN OFF button. Airflow Direction To reverse the airflow press the REVERSE button.

  • Page 15: Troubleshooting

    • FAN OPERATES ONLY WHEN TRANSMITTER IS CLOSED: Check antenna wire is not touching metal plate. • FAN STARTS WORKING BY ITSELF: Frequency interference; Change frequency as described on Page 2. For questions or to locate the nearest Casablanca Authorized Service Center call toll free: 1-888-227-2178 or visit us on the web at: www.CasablancaFanCo.com...

  • Page 16: Versa•Touch2

    PRODUCT SPECIFICATIONS ® ™ Model Name: Capistrano Motor: 188mm x 20mm Direct Drive Model Number: 46XXD/M and 46UXXD/M Blade Span With: 45" or 53" Blade Pitch: 16° Dimensions: 11.1" No. of Blades: B = 12.75" Technology: 3-Speed 3" NOTE: Dimension B ®...
