Overview

The Lexmark PrintCryption
the transfer and printing of encrypted print jobs. This new Lexmark technology
offers a level of security that is the first of its kind in the printing industry. With
the PrintCryption module installed, the printer is capable of decrypting print jobs
encrypted with the AES (FIPS 197) algorithm. The Lexmark PrintCryption
analyses the encrypted data stream, determines if the correct key was used to
encrypt the data, decrypts the data and allows the confidential document to be
printed. This new level of printing security is ideal for industries that commonly
handle sensitive or personal information, such as financial institutions,
government agencies, and healthcare organizations.

Module Specification

The version 1.3.2i PrintCryption
three binaries (aessd, dkmd & libcl.so) on the IBM750CL processor platform. The
version 1.3.2a PrintCryption
dkmd) on the ARM9 processor platform. The module is enabled in Lexmark
printers using a Downloaded Emulator Card (DLE), a PCI interface PCB board
that plugs into the printer which contains an activation code. The DLE card is
shown in Figure 1.
Per FIPS PUB 140-2, PrintCryption
cryptographic module. The module meets overall level 1 FIPS 140-2
requirements, as detailed in Table 2.
© Copyright 2009 Lexmark International Inc.
This document may be freely reproduced and distributed whole and intact including this Copyright Notice.
TM
C
RYPTION

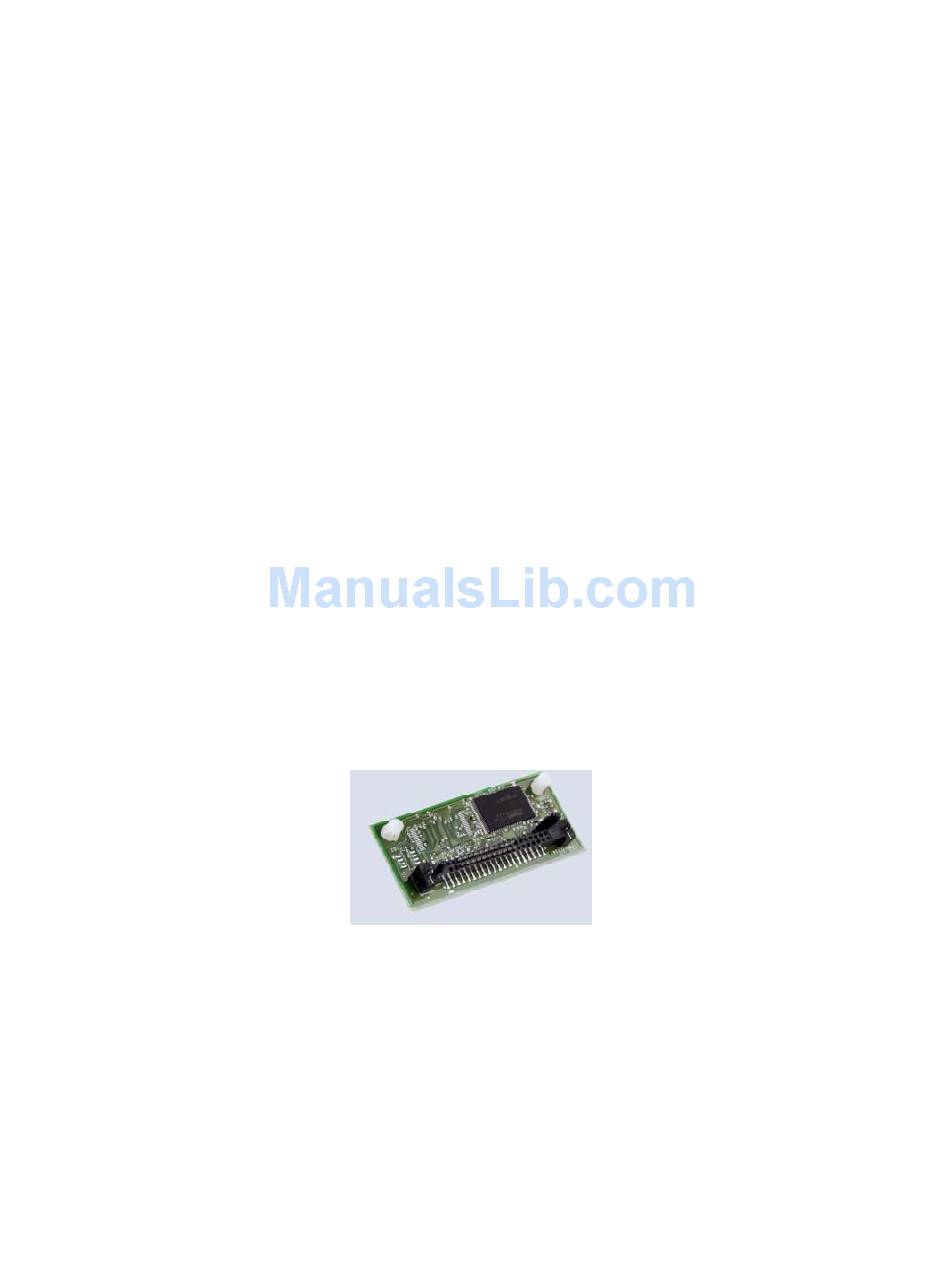

Figure 1 - Optional Firmware Card
Page 4 of 20
TM
is an option for the Lexmark printers that enable
TM
module is a firmware module composed of
TM
module is composed of two binaries (aessd &
TM
is classified as multi-chip standalone
TM
