Setup; Installing Batteries; Battery Door Removal; Connecting To The Usb Port - Magellan eXplorist Pro 10 User Manual

Setup

Installing Batteries

The Magellan eXplorist Pro 10 is powered by two AA batteries. Alkaline, lithium or rechargeable batteries may be
used but both batteries must be of the same type.

Battery Door Removal

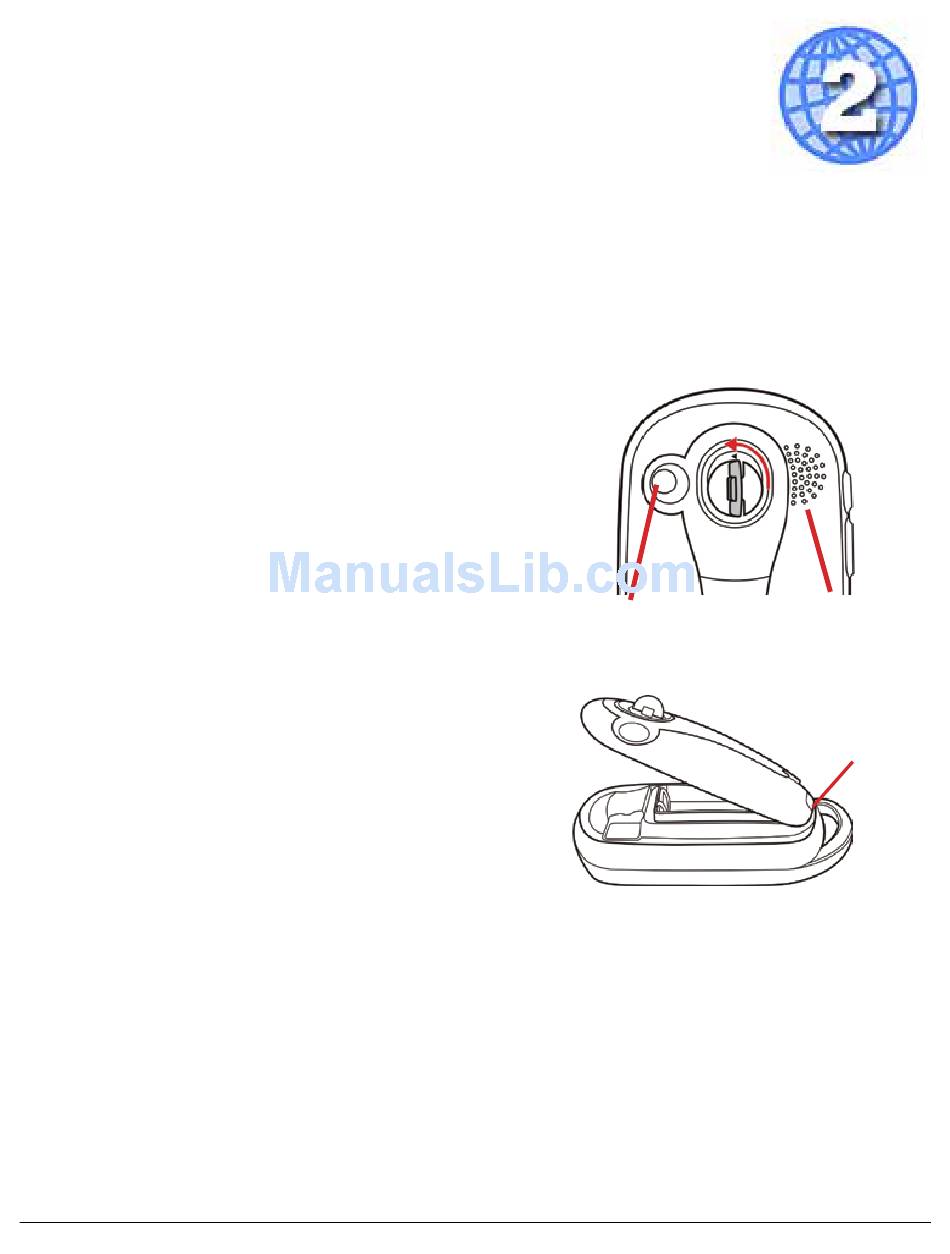

1. Raise the arm [A].
2. Turn the battery door lock counter clockwise a
quarter turn.
3. Lift the top of the battery door until the pivot
point at the bottom releases, allowing the door to
become free from the receiver.
4. Install two AA batteries observing the polarity as
shown in the battery tray.
5. When reinstalling the battery door be sure to first
insert the hinge point at the base of the door.
Pivot the battery door down and lock it in place
by turning the battery door lock clockwise for a
quarter of a turn.

Connecting to the USB Port

The Magellan eXplorist Pro 10 can be connected to a personal computer or external power using the USB
connector located at the bottom of the receiver. It has a rubber covering to protect the connector from water or dirt
and should always be closed firmly when the receiver is not connected to a remote device.
Magellan eXplorist Pro 10 GPS Receiver
A
Camera Speaker
Pivot Point
