Exploded Drawing for Assembly
Parts List
A. Tub (1)
B. Lock (1)
C. Front Frame (1)
D. Rear Axle Assembly (1)
includes left and right rear
struts and rear axle frame
E. Rear Axle Support Bar (1)
F. Front Axle Assembly (1)
G. Wheel (4)
H. Handle (1)
H.
Hardware List
A. M8x60 Bolt (1)
B. M8x40 Phillips Flat Head Bolt (2)
C. M8x40 Truss Head Bolt (2)
D. M8x20 Truss Head Bolt (10)
E. M8x20 Hex Head Bolt (2)
F. M8 Lock Nut (17)
G. M8 Washer (17)
H. Bushing (4)
I. 15mm Washers (4)
J. Cotter Pin (4)
A.
B.
C.
D.
F.
G.
Images are
A.
not to scale
F.
B.
G.
C.
D.
I.
E.
Garden
E.
Dump
Cart

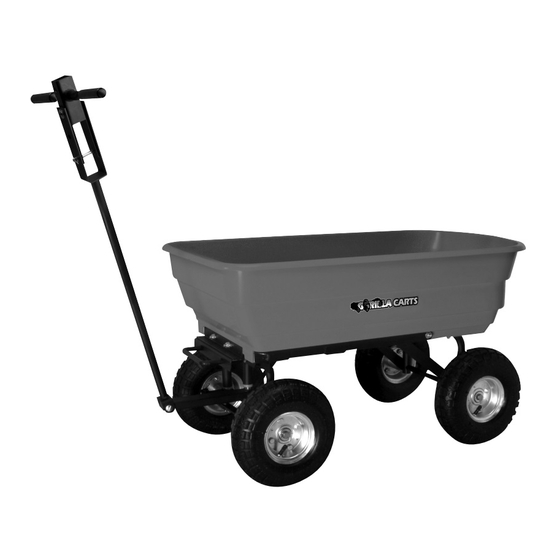

Owners Manual
Model GOR200B-T
• Important Safety Instructions
• Assembly Instructions
• Parts and Hardware Identification
H.
CAUTION:
Read, understand and follow ALL instructions before using this product.
For product inquiries:
Tricam
7677 Equitable Drive
J.
Eden Prairie, MN 55344
800-867-6763
www.tricam.com
U.S. Patent No. 6,851,756
Other U.S. and Foreign
Patents Pending
10/06
