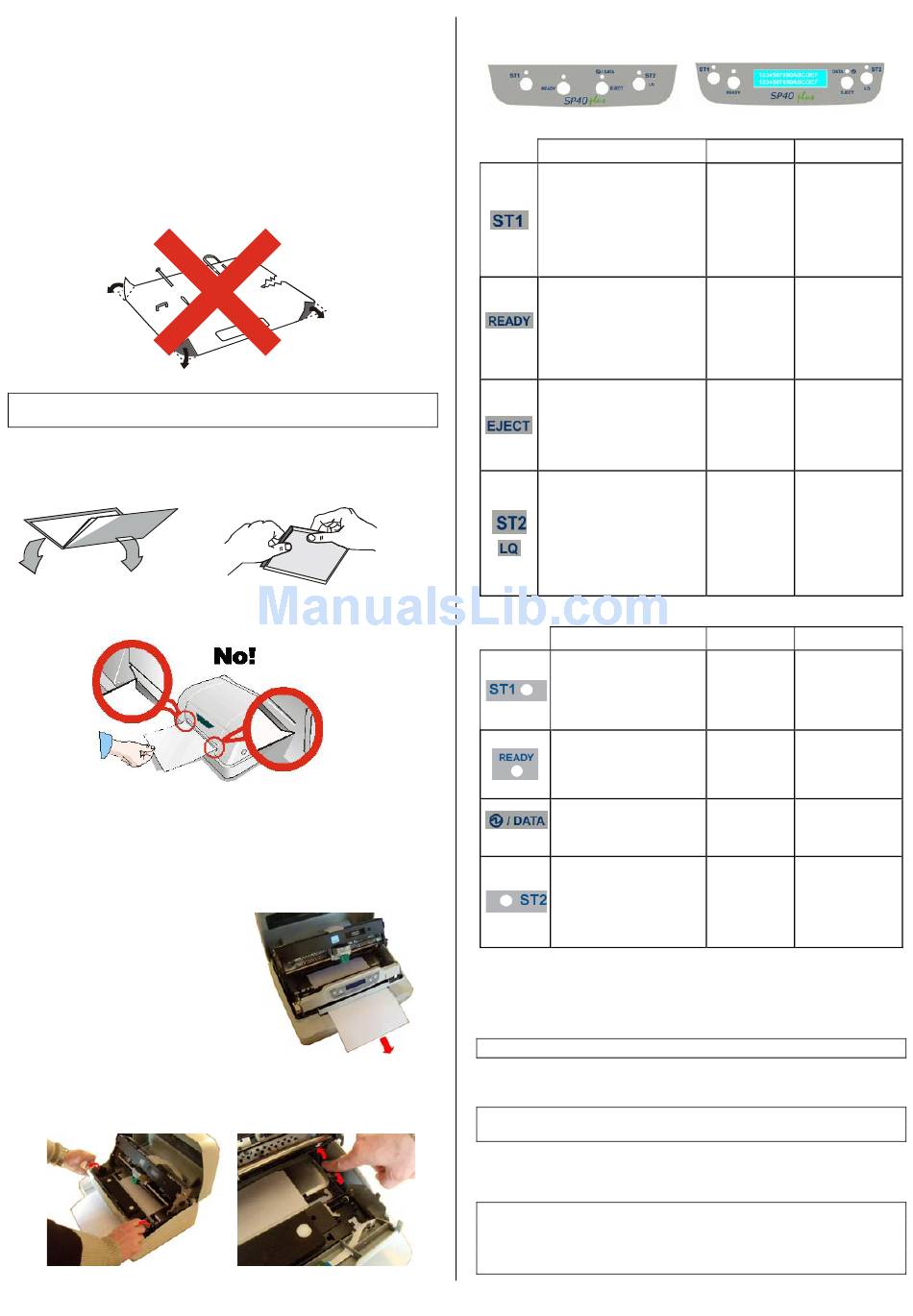

Compuprint SP40plus Quick Reference Manual page 2

Paper Handling
This printer is designed for versatile and reliable paper handling. The
flat-bed mechanism allows the handling of special documents, such as
multiple invoices, postcards, labels, passbooks and tickets.
The print head detects the paper edges automatically, the sheet can
therefore be inserted in any position within the detection area
according to the rules described in the following paragraph.
The paper alignment sensors determine the alignment of the upper
paper margin, adjusting it if necessary.
Loading Paper
The inserted documents must not have folds, tears, pins, clips, staples
or any foreign material.
Pin
Staple
If you insert damaged documents or paper with foreign material,
you can seriously damage the printer.
Before inserting a passbook into the printer, open it and crease it in
both directions along the binding stitch, so that the passbook lays flat
on the paper stand when it is inserted into the printer.
The document may not exceed the limits of the paper stand.
Paper Problems
The straight paper path of this printer is designed for trouble-free
handling of a great variety of documents.
Paper Jam
In case a paper jam condition occurs, proceed as follows:
1. Open the printer cover. And rise
the upper mechanical frame as
explained in the chapter: Installing
the Ribbon Cartridge, page.
Remove the jammed paper, pulling
it towards the front of the printer.
2. To have an even better access to the paper path, unlock and rotate
down the Operator Panel Group. In case it is not possible to remove
the jammed paper because you cannot reach it with your hand or it
is embedded so that you cannot move it, rotate the paper belt to free
the paper.
MAN10241-01
Clip
Tear
Fold
Foreign
material
Operator Panel
There are two models of operator panel, with or without LCD display.
Function Keys
NORMAL MODE
When using the IBM 4722, IBM
9068 and the Olivetti protocols in
two operators ("booking") mode, the
application software determines the
function of this key.
Toggles the printer between Ready
(on-line) and Local (off-line) status.
Pressing this key, when the printer
is offline, or when the printer is
online and no print data are in the
buffer, the printer ejects the paper,
if inserted (EJECT function). In the
Olivetti protocols,
function may be performed only if
the printer is offline.
When using the IBM 4722, IBM
9068 and the Olivetti protocols in
two operators ("booking") mode, the
application software determines the
function of this key.
When the printer is offline or when
the printer is online and no print
data are in the buffer, pressing this
key, the printer toggles between
Letter Quality and Draft printing mode
(no Olivetti)
Leds
NORMAL MODE
Lit if paper
without paper (no Olivetti).
When using the IBM 4722, IBM
9068 and the Olivetti protocols in
two operators ("booking") mode,
the ST1 led is under software
control.
Lit, when the printer is ready (on
line).
Unlit, when the printer is in local
(off line).
On, if the printer is powered on
without data.
Off, if the printer is powered off.
Blinks if the printer has data
traffic or data in the buffer.
Lit when the Letter Quality print
mode is selected. Unlit when the
Draft printmode is selected.
When using the IBM 4722, IBM
9068 and the Olivetti protocols in
two operators ("booking") mode,
the S2 led is under software
control.
Errors Handling
Recoverable errors
The printer is disabled with the ST1 and ST2 led flashing and the
printer sounds a beeps.
Press always the READY key to reset the error condition
Not-Recoverable errors
The printer is halted with all the four led flashing.
Power-off and Power-on the printer.
It the problem remains contact the service.
Detailed Informations on the Printer Configuration not reported
on this Quick Reference Guide are in the User Manual which can
be downloaded in the company web site:
www.compuprint.com
2
SETUP MODE SPECIAL MODE
When the Printer When pressed while
is in the Printer powering the printer
Setup mode, on with READY key
pressing this key selects the T&D mode
the operator (diagnostic).
selects the When pressed while
Configuration powering the printer
Page to be on with cover open
printed. enters
upgrading procedure.
If pressed in the When pressed while
Printer Setup powering the printer on,
mode, the printer selects
prints the Self Test Setup Mode.
Page. When pressed while
powering the printer
on with READY key
select the T&D mode
(diagnostic).
the EJECT
When the Printer When pressed while
is in the Printer powering the printer on,
Setup mode, selects
pressing this key HEX_DUMP mode.
the Setup Page
selected with the
ST1 key will be
printed.
SETUP MODE SPECIAL MODE
presence, Unlit If the printer is in Blinks, together with the
Setup Mode, this ST2 led, if a printer
led indicates error occurs.
which setup page
is selected for
printing.
If the printer is in
Setup Mode, this
led indicates
which setup page
is selected for
printing.
Blinks if the
printer is in Setup
Mode.
If the printer is in Blinks, together with the
Setup Mode, this ST1 led, if a printer
led indicates error occurs.
which setup page
is selected for
printing.
in formware
the Printer
the
