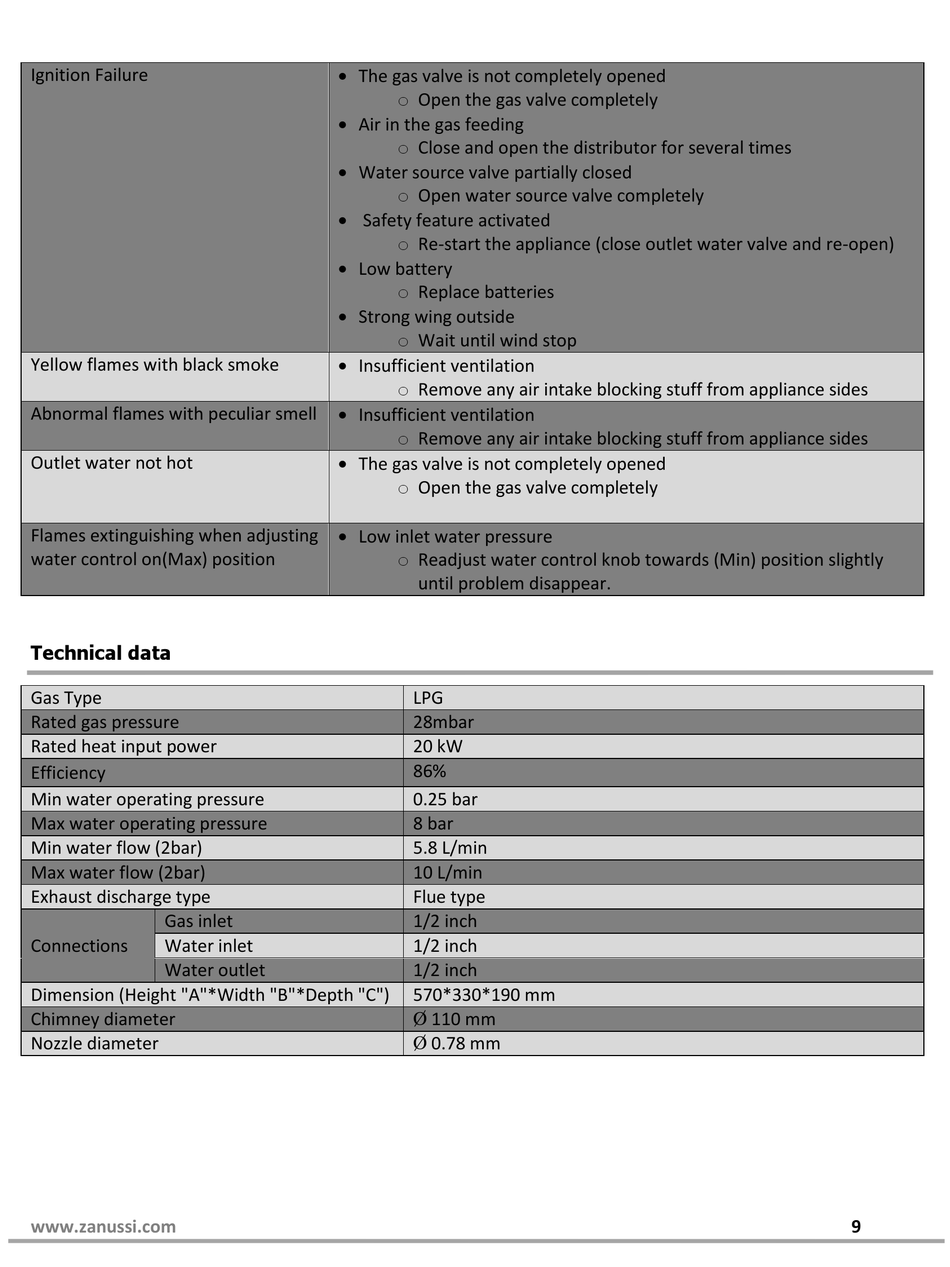

Ignition Failure
Yellow flames with black smoke
Abnormal flames with peculiar smell
Outlet water not hot
Flames extinguishing when adjusting
water control on(Max) position
Technical data
Gas Type
Rated gas pressure
Rated heat input power
Efficiency
Min water operating pressure
Max water operating pressure
Min water flow (2bar)
Max water flow (2bar)
Exhaust discharge type
Gas inlet
Connections
Water inlet
Water outlet
Dimension (Height "A"*Width "B"*Depth "C")
Chimney diameter
Nozzle diameter
www.zanussi.com
The gas valve is not completely opened
o Open the gas valve completely
Air in the gas feeding
o Close and open the distributor for several times
Water source valve partially closed
o Open water source valve completely
Safety feature activated
o Re-start the appliance (close outlet water valve and re-open)
Low battery
o Replace batteries
Strong wing outside
o Wait until wind stop
Insufficient ventilation
o Remove any air intake blocking stuff from appliance sides
Insufficient ventilation
o Remove any air intake blocking stuff from appliance sides
The gas valve is not completely opened
o Open the gas valve completely
Low inlet water pressure
o Readjust water control knob towards (Min) position slightly
until problem disappear.
LPG
28mbar
20 kW
86%
0.25 bar
8 bar
5.8 L/min
10 L/min
Flue type
1/2 inch
1/2 inch
1/2 inch
570*330*190 mm
Ø 110 mm
Ø 0.78 mm
9
