Tripp Lite SRW12U Specifications

Model #: SRW12U

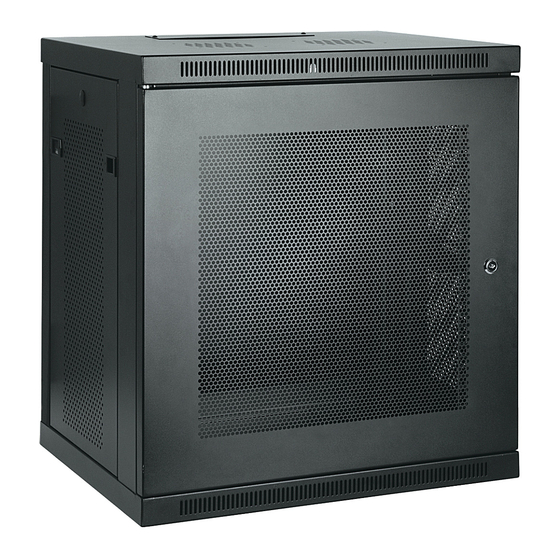

SmartRack 12U Wall-Mount Rack Enclosure Cabinet
Description
The SRW12U 12U Wall-Mount Rack Enclosure Cabinet is designed to integrate wall-mounting, easy equipment access, and cable management in
IT network applications with limited floor space. Ventilated front door and side panels allow generous airflow to keep equipment operating safely.
Adjustable rack rails with square mounting holes accommodate up to 12U of standard 19" rackmount equipment. Supports up to 200 lbs of
equipment. A sturdy wall-mount bracket allows the cabinet to quickly be hung on the wall.
Applications
IT network environments with limited floor space and classrooms where equipment needs to be secure and out of the way of students.
Package Includes
SRW12U Wallmount Rack Enclosure
(20) M6 screws
(20) M6 cage nuts
(20) M6 washers
(2) Keys
Owner's Manual
Features
12U wall-mounted enclosure
Adjustable mounting depths up to 17" by 2 front vertical rackmount rails
Ventilated front door and side panels for increased airflow
Locking, reversible front door
Locking, removable side panels
Fully assembled for quick installation
Meets all enclosure requirements towards PCI DSS (Payment Card Industry Data Security Standard) Compliance

Specifications

PHYSICAL
Installed whole system
maximum rack depth (inches)
Installed whole system
maximum rack depth (cm)
Highlights
16.5
41.9
Designed for IT and education environments where equipment needs to be
secure and out of the way
12U with adjustable front vertical rackmount rails
Locking, reversible front door and locking, removable side panels
Fully assembled for quick installation
Meets all enclosure requirements towards PCI DSS (Payment Card Industry
Data Security Standard) Compliance
