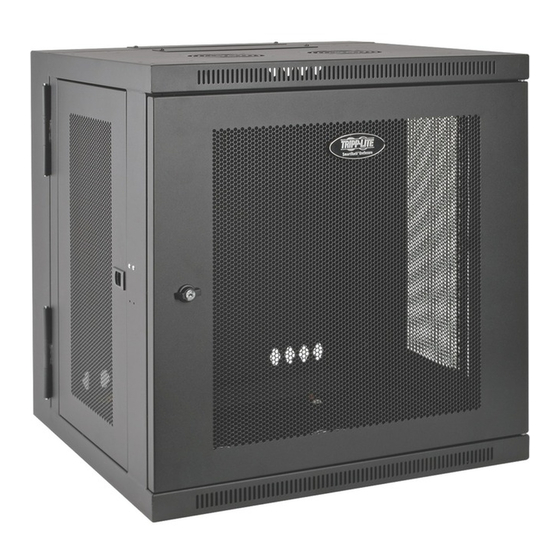

Tripp Lite SmartRack SRW10US Specifications

SmartRack
10U
200
10 Rack Units 200 lb Sturdy Steel

Load Rating

Construction

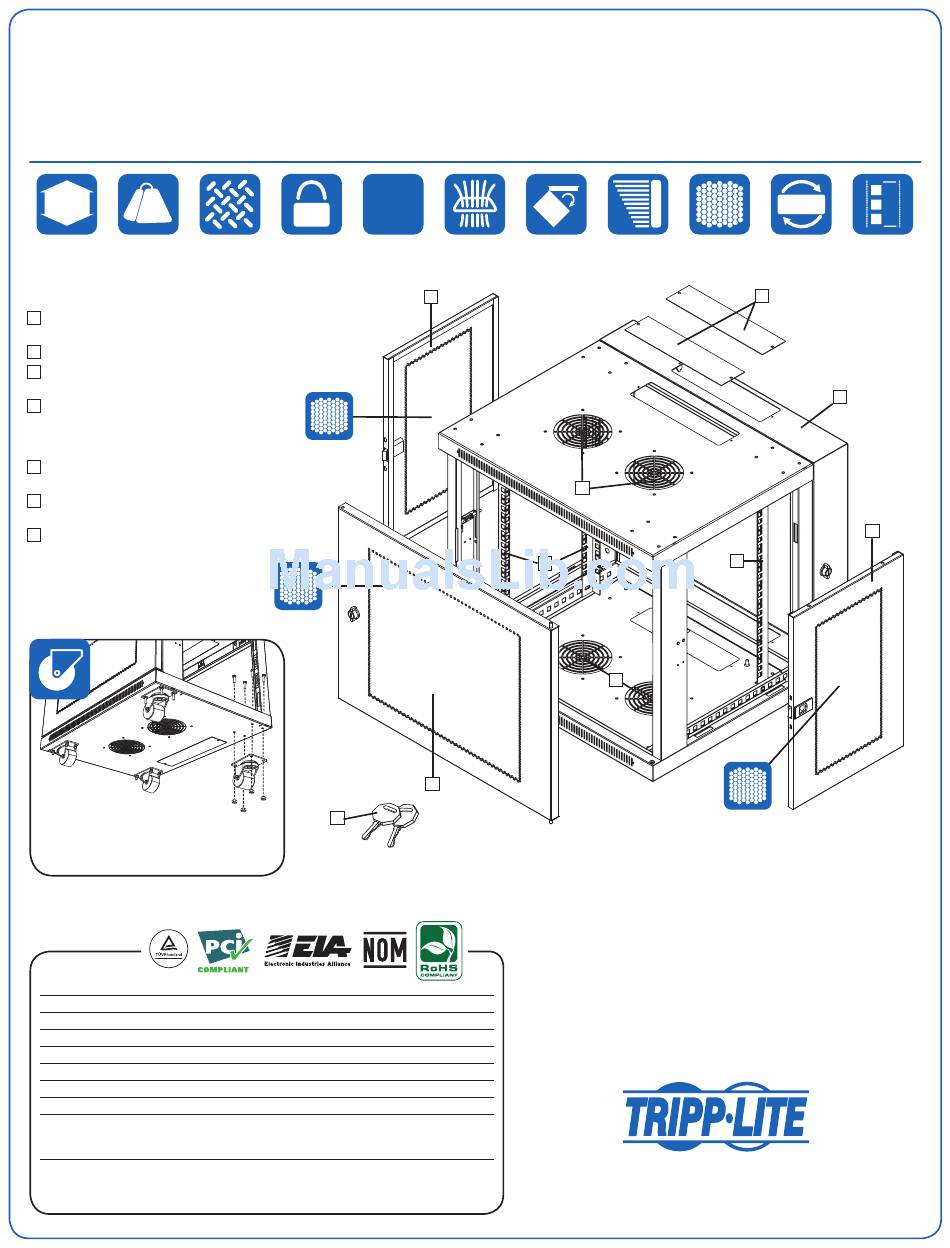

A Front Door
(Lockable/Removable/Reversible)
B Adjustable Mounting Rails (4)
C Side Panels (2)
(Lockable/Removable)
D Hinged Wall Bracket
(Lockable/Reversible. Allows the cabinet
to swing away from the wall for convenient
rear access to equipment and cabling.)
E
Cable Access Port Covers (2)
(Removable)
F
Ventilation Fan Ports (4)
(Support optional SRFANWM fan kit.)
G Keys (2)
Also Includes: Owner's manual, mounting
plate screws (3), cabinet ground screw, pre-
installed front door ground wire and rackmount
equipment mounting hardware (12 cage nuts,
12 mounting screws, 12 nylon cup washers).
Floor-Standing Installation: Optional SRCASTER
kit adapts cabinet to roll under desks, tables or
counters. (Kit includes 4 casters.)

Specifications

Model
Rack Spaces
Equipment Mounting Depth
Load Rating*
Unit Dimensions (H x W x D)
Shipping Dimensions (H x W x D) 24.41 x 26.38 x 24.41 in (620 x 670 x 620 mm)

Unit Weight

Shipping Weight

Regulatory Compliance

* The load rating includes the combined weight of the unit and installed equipment. The unit must be
mounted to a stable surface with user-supplied anchors capable of bearing the full load. Tripp Lite
has a policy of continuous improvement. Specifications are subject to change without notice.
SRW10US
Wall-Mount Rack Enclosure Cabinet
®
EIA
310-E
Locking Doors Standard
& Side Panels 19" Rack Width
G
SRW10US
10U
Up to 20.5 in (520.7 mm)
200 lb (90.7 kg)
21.57 x 23.62 x 21.6 in (547.8 x 600 x 549 mm)
55 lb (24.94 kg)
59 lb (26.76 kg)
Meets EIA-310-E, NOM, RoHS, PCI-DSS,
IEC 60297-3-100 and DIN 41494 standards;
IP20 Protection Rating
MODEL:
Convenient Hinged Wall
Cable Access Bracket Mounting Rails
C
F
B
A
• Wall-mount enclosures provide convenient, locking
storage for rackmount IT devices and other equipment
that should be off the floor, out of the way and secure
• The cabinet is fully reversible, allowing installers
to change door hinges from left to right by simply
rotating the unit 180 degrees before mounting
• Hinged wall bracket allows cabinet to swing away
from the wall for convenient access to equipment and
cabling
SEE NEXT PAGE FOR DETAILED UNIT MEASUREMENTS
Adjustable Ventilated for Reversible
Ample Airflow Cabinet
E
B
F
