PSB42LSR – GE Profile
with Electronic Dispenser

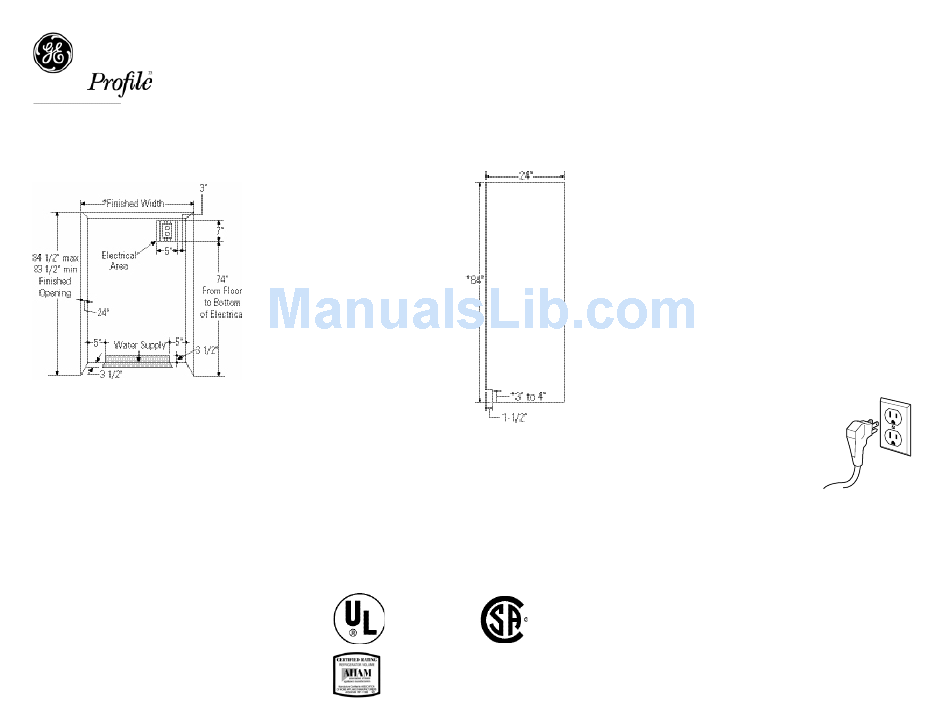

The Installation Space
*The finished cutout width must be: 41-1/2" for 42" models
Water and Electrical Locations
The opening must be prepared with the electrical and water
supply located as shown.
The cutout depth must be 24"
The refrigerator will project forward, slightly beyond adjacent
cabinets, depending on your installation.
Additional Specifications
• A 120 volt, 60Hz, 15 or 20 amp power supply is required.
An individual properly grounded branch circuit or circuit
breaker is recommended. Install a properly grounded 3-prong
electrical receptacle recessed into the back wall. Electrical
must be located on rear wall as shown.
Note: GFI (ground fault interrupter) is not recommended.
• Water line can enter the opening through the floor or rear
wall. The water line installed should be 1/4" O.D. copper
tubing or GE SmartConnect
tubing between the cold water
™
line and water connection location. The line should be long
enough to extend to the front of the refrigerator. Installation
of an easily accessible shutoff valve in the water line
is required.
Specification Revised 1/06
210319
42" Built-In Stainless Side-By-Side Refrigerator
™
Side Panels
Side panels (not
supplied) must be
used whenever
the sides of the
refrigerator will
be exposed.
* Depending on
installation height.
Flooring
For proper installation, this refrigerator must be placed on a
level surface of hard material that is at the same height as the
rest of the flooring. This surface should be strong enough to
support a fully loaded refrigerator, or approximately 1500 lbs.
NOTE: Protect the finish of the flooring. Cut a large section of
the cardboard carton and place under the refrigerator where
you are working.
Listed by
Underwriters
Laboratories
Total volume and shelf
area are calculated by
the Association of Home
Appliance Manufacturers'
standards.
Grounding the Refrigerator
ImPORTANT—Please read carefully
FOR PERSONAL SAFETy, ThIS APPLIANCE muST BE
PROPERLy GROuNDED.
The power supply cord of this appliance is equipped with a
three-prong (grounding) plug which mates with a standard
three-prong (grounding) wall receptacle to minimize the
possibility of electric shock hazard from this appliance.
Have the wall outlet and circuit checked by a qualified
electrician to make sure the outlet is properly grounded.
Where a standard 2-prong wall outlet is encountered, it is
your personal responsibility and obligation to have it replaced
with a properly grounded 3-prong wall outlet.
DO NOT, uNDER ANy
CIRCumSTANCES, CuT
OR REmOvE ThE ThIRD
(GROuND) PRONG FROm
ThE POWER CORD.
DO NOT uSE AN ADAPTER PLuG
TO CONNECT ThE REFRIGERATOR
TO A 2-PRONG OuTLET.
DO NOT uSE AN ExTENSION CORD
WITh ThIS APPLIANCE.
For answers to your Monogram,
®
GE Profile
GE
appliance questions, visit our website at
®
ge.com or call GE Answer Center
service,
®
800.626.2000.
™
or
