BEDIENUNGSANWEISUNG
mit Montageanweisungen
Instructions for use and installation instructions
Instructions d'utilisation et avis de montage
Gebruiksaanwijzing en montagehandleiding
Istruzioni di uso e di montaggio
Instrucciones de uso y de montaje
Instruções de uso e de montagem
Ο∆ΗΓΙΕΣ ΧΡΗΣΗΣ ΚΑΙ ΣΥΝΑΡΜΟΛΟΓΗΣΗΣ
EKE
8752.0F
EKE
8752.0M
EKEF 8752.0
EKE
8852.0M (TE)
EKEF 8852.0 (TE)
EKE
9852.0F
226279 P51
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Kuppersbusch EKE 8752.0F
Summary of Contents for Kuppersbusch EKE 8752.0F
- Page 1 BEDIENUNGSANWEISUNG mit Montageanweisungen Instructions for use and installation instructions Instructions d'utilisation et avis de montage Gebruiksaanwijzing en montagehandleiding Istruzioni di uso e di montaggio Instrucciones de uso y de montaje Instruções de uso e de montagem Ο∆ΗΓΙΕΣ ΧΡΗΣΗΣ ΚΑΙ ΣΥΝΑΡΜΟΛΟΓΗΣΗΣ 8752.0F 8752.0M EKEF 8752.0...
-
Page 2: Table Of Contents
Disposing of the packaging For your information... Please ensure the environmentally-friendly disposal of the pack- Please read this manual carefully before using your appliance. It aging that came with your appliance. Recycling the packaging contains important safety advice; it explains how to use and look material saves on resources and cuts down on waste. -
Page 3: Safety Instructions
Safety instructions Connection and operation • Do not put aluminium foil or plastic onto the cooking zones. Safety instructions Keep everything which could melt, such as plastics, foil and in • The appliances are constructed in accordance with the rele- particular sugar and sugary foods away from hot cooking vant safety regulations. -
Page 4: Appliance Description

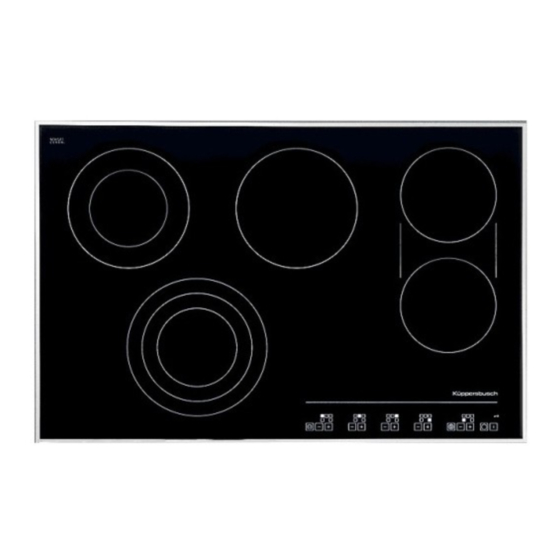

Appliance description Appliance description 15. Plus-Minus key 1. Front left cooking zone 16. Power setting display 2. Back left cooking zone 17. Circuit activation key 3. Back middle cooking zone 18. Multi-circuit control lamp 4. Back right cooking zone 19. STOP key 5. -
Page 5: Operating The Hob With The Sensor Keys
Appliance description Operating the hob with the sensor keys Pan recognition (EKE 8852 only) The ceramic glass hob is operated with touch control sensor If a cooking zone is switched on and there is no pan on the keys. The sensor keys are operated as follows: lightly touch a zone or if the pan is too small, there will be no transmission symbol on the surface of the ceramic glass plate. -
Page 6: Operation
Operation Automatic safety cut-off How to cut power consumption Operation (limiting operation duration time) The following are a few useful hints to help you cut your con- sumption of energy and use your new hob and the cookware effi- The hob has an automatic time limit function. The duration of ciently. -
Page 7: Operating The Keys
Operation Operating the keys The controls described here expect the pressing of a (selection) key to be followed by the pressing of a subsequent key. The next key will need to be pressed within 10 seconds, otherwise the selection will be deleted. Switching on the hob and cooking zones 1. -
Page 8: Two-Circuit/Three-Circuit Connection
Operation Two-circuit/three-circuit connection (only for cooking zones with several circuits) Two-circuit / three-circuit connection of the respective cooking zone can only be effected after the corresponding cooking zone has been switched on. 1. Select the desired cooking level 1-9. 2. Switch on the second or third heating circuit with the circuit activation The control lamps (activating an additional circuit) in the respective power level display blinks or lights up. -
Page 9: Automatic Switch-Off (Timer)
Operation Automatic switch-off (timer) The automatic switch-off device is used to automatically switch off any cook- ing zone after a stipulated period of time. Cooking times ranging from 1 minute to 99 minutes can be set. 1. Switch on the hob. Switch on one or more cooking zones and set the required power settings. -
Page 10: Stop Function
Operation STOP function The cooking process can be interrupted for 30 minutes with the STOP func- tion, for example if the doorbell rings. The STOP function must be released in order to continue cooking at the same power level. A timer which has been set will not be stopped. -
Page 11: Automatic Boost Function
Operation Automatic boost function Parboiling takes place at power level 9 with the automatic boost function. After a certain time the power level will switch down automatically to a lower simmering setting (1 to 8). When using the automatic boost function only the simmering setting with which the food is to be cooked through needs to be selected since the elec- tronic unit switches down automatically. -
Page 12: Cleaning And Care
Cleaning and care Specific soiling Cleaning and care Heavy soiling and stains (limescaling and shiny, mother-of- pearl-type stains) can best be removed when the hob is still • Switch the hob off and let it cool down before you clean it. slightly warm. -
Page 13: What To Do If Trouble Occurs
What to do if trouble occurs Is error code E1 being displayed? What to do if trouble occurs The keys are being pressed for too long (5 sec.) or an object has been placed on them. Please rectify. Interference with and repairs to the appliance by unqualified per- Error code E2 is indicated? sons are dangerous as they can result in an electric shock or a The keys are being pressed for too long (10 sec.) or an object... -
Page 14: Assembly Instructions
Assembly instructions Note Installation Assembly instructions The KÜPPERSBUSCH hob may only be built-in in accord- Important ance to the instructions included in this manual: In the case • If the cooking surface is located above furniture parts (side of failure to observe these instructions, KÜPPERSBUSCH panels, drawers, etc.), then an intermediate shelf must be shall decline any liability and the approved marks of con- inserted at a minimum distance of 20 mm in order to prevent... - Page 15 Assembly instructions Dimensions in mm Clips • Drive the clips into the worktop cut-out at the intervals indicated. It is not necessary to adjust the height due to the horizontal stop. • Important! The horizontal drive of the clips must be flush with the worktop (avoid the risk of fractures).
-
Page 16: Electrical Connection
Assembly instructions Electrical connection Start of operation • The electrical connection must be carried out by a quali- Once the hob has been installed and the power supply has been provided (mains connected) an automatic test of the controls will fied electrician who is authorised to carry out such work! be carried out and information for Customer Service will be indi- •...
