Kuppersbusch EKE 854.2 Service Manual

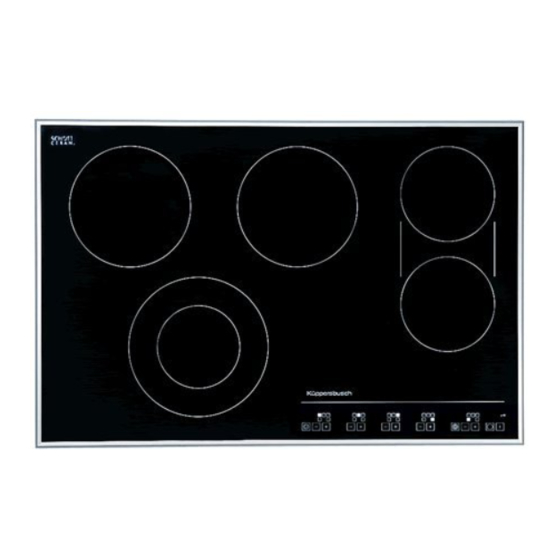

Electric hob with touch controls
Hide thumbs Also See for EKE 854.2:
Table of Contents

Advertisement

Quick Links

Download this manual
]„}{ŒŠ{ €‡z Œ€
Œ‡{€ {‡†ŒŠ‡„‹
]c] PMLFJ

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EKE 854.2 and is the answer not in the manual?

Questions and answers

Related Manuals for Kuppersbusch EKE 854.2

Summary of Contents for Kuppersbusch EKE 854.2

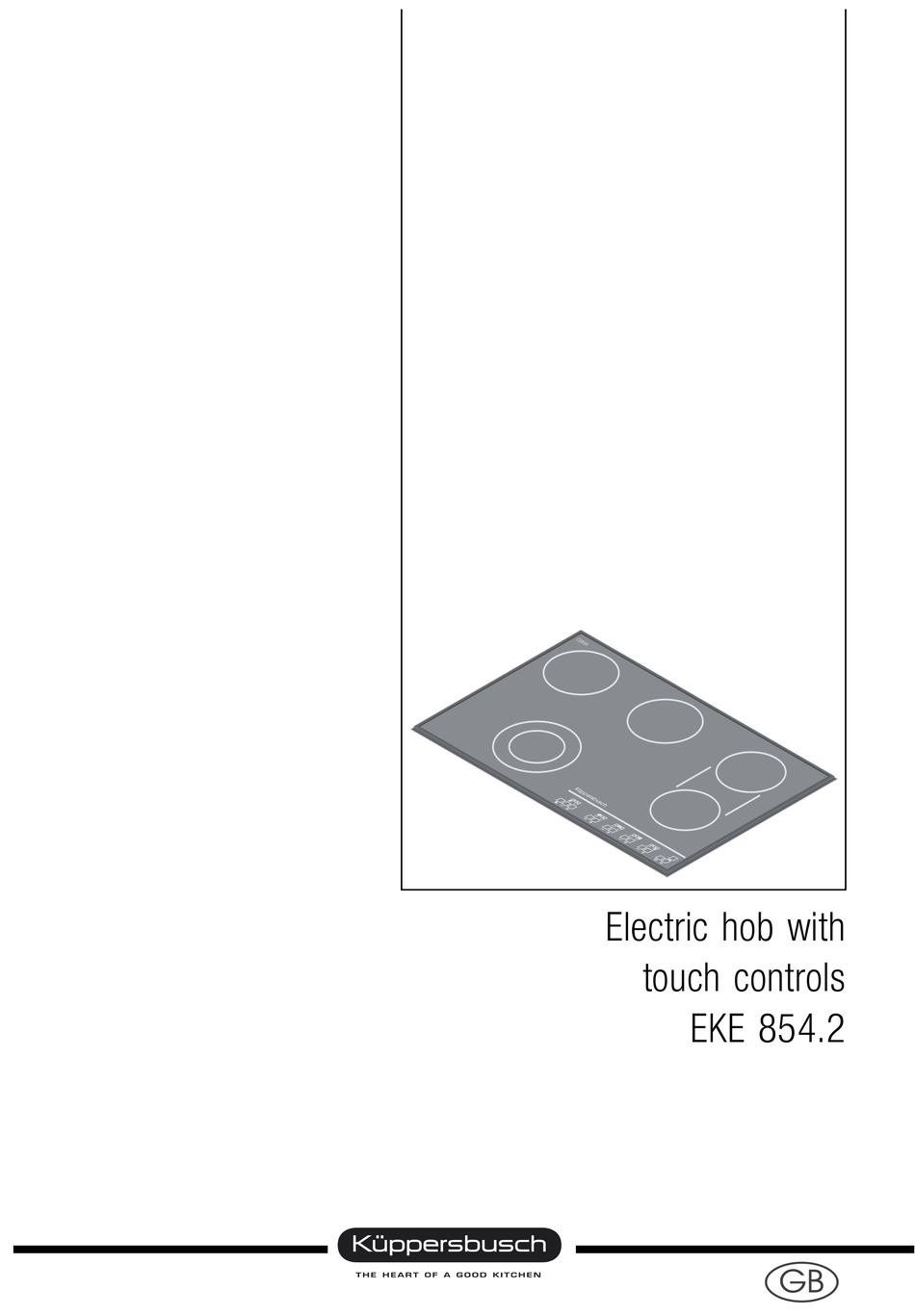

  • Page 1 ]„}{ŒŠ{ €‡z Œ€ Œ‡{€ {‡†ŒŠ‡„‹ ]c] PMLFJ...
  • Page 2 Service Manual: H1-50-01-03 Responsible: D. Rutz KÜPPERSBUSCH HAUSGERÄTE AG E-mail: dieter.rutz@kueppersbusch.de Tel.: (0209) 401-733 Kundendienst Fax: (0209) 401-743 Postfach 100 132 Date: 19.04.2004 45801 Gelsenkirchen...

  • Page 3: Table Of Contents

    H1-50-01-03 Contents Safety instructions ......................4 Touch control with a pan sensor .................. 5 Putting the hob into operation ................6 Switching the hob on ..................... 6 Settings ......................... 6 Heating-up function ....................7 Dual-circuit cooking zones ..................7 Childproof lock....................... 7 Operating time limit ....................

  • Page 4: Safety Instructions

    H1-50-01-03 Safety instructions Danger! Repairs may only be carried out by a qualified electrician! Inexpert repairs may lead to risks and damages for the user! To prevent electric shocks, please observe the following tips: • In the event of faults, housing and frame may be live! •...

  • Page 5: Touch Control With A Pan Sensor

    H1-50-01-03 Touch control with a pan sensor Controls for a glass ceramic hob with 5 cooking zones, e.g. 4 single-circuit cooking zones 1 dual-circuit cooking zone Infra-red technology without irritating moisture, external lighting and electromagnetic radiation influences 14 infra-red sensor-touch controls (a maximum of 16 possible) for operating the hob (switching on, switching off, changing the cooking settings, activating and deactivating the childproof lock and activating the second circuit), with an acoustic confirmation signal...

  • Page 6: Putting The Hob Into Operation

    H1-50-01-03 Saucepan sensor A supplementary module functioning on the basis of an inductive gauge principle for precise, drift- free recognition of pan dimensions for the dual-circuit zone too. Single-coil sensors with a simple geometry (triangle) and four-wire connections for minimizing the supply inductance and for enlarging minimal principle-related effective travel.

  • Page 7: Heating-Up Function

    H1-50-01-03 2.3.2 Start-up with the minus sensor The hob switches onto setting 9 immediately and at the same time the heating-up mode is activated. 2.3.3 Switching off the hob If the setting is still switched down after setting 1 has been reached, switching on again will be prevented for 2 seconds.

  • Page 8: Operating Time Limit

    H1-50-01-03 The plus sensors and the sensors for adding the outer cooking zone circuits have been deactivated. The lock can either be released by switching off the power supply or by pressing the three sensors in which the LEDs are blinking. In order to do so, the plus sensors in which the LEDs are blinking and the locking sensor are pressed simultaneously, or the two plus sensors are pressed first (signal as recognition) and then the locking sensor (disabled switch) is pressed within 3 seconds.
  • Page 9 H1-50-01-03 Reasons why the sensors lock: More than one sensor is pressed. Exceptions: • Switching off the hob by pressing the plus and minus sensors simultaneously: If the cooking zone is switched on, the sensor will lock if the plus and minus sensors are not released after deactivating the cooking zone.

  • Page 10: Miscellaneous

    H1-50-01-03 2.10 Miscellaneous The appliance does not automatically switch on again after a power failure. Cooking zone cycle times (cycle time 47 seconds) Cooking setting Switch-on time 1.25 s 3.5 s 5.75 s 8.75 s 11.25 s 14.0 s 21.25 s 28.25 s If no cooking zone is on for 1 minute, the hob will switch off completely.

  • Page 11: Code Functions

    H1-50-01-03 Code functions Certain functions can now be activated or deactivated by entering a code. A code entered is activated when the hob is switched off by pressing both (approx. 5 seconds) the plus sensor and the dual-circuit sensor of zone 5 simultaneously. A short signal will sound and the display will indicate C.00.0 .

  • Page 12: The Functions And The Pan Sensors

    H1-50-01-03 Information on the code functions: • Pan sensor calibration If this function is activated, CAL will be shown on the display for as long as calibration is in progress. No objects may be placed on the cooking zone until calibration has been completed. Should it not be possible to activate pan sensor calibration within 5 seconds, the calibration request and the display will be deleted.

  • Page 13: Pan Sensor Calibration After The Power Has Been Switched Off

    H1-50-01-03 Pan sensor calibration after the power has been switched off Select calibration after switching on the power supply. The pan sensors are calibrated. Current program number Version 01177 from 28.01.1997 Version 01277 Configurability installed for use in the EKE 604.2 or the EKE 804.2. Note! The clamped connection schedule applies to the EKE 604.2 only! In the case of the EKE 804.2 the relay functions for zones 1 and 3 have been exchanged, i.e.

  • Page 14: Clamped Connection Schedule

    H1-50-01-03 For internal use only...
