- Page 1 MONTAGEANWEISUNGEN Installation instructions Manuel d’installation Montagehandleiding EKWI 3740.O W / S...
- Page 2 SUMMARY DESCRIPTION OF THE APPLIANCE ..................11 ................11 PPLIANCES AND INSTALLATION DIMENSIONS MULTIZONES INSTALLATION ....................12 ........................... 12 NSTALLATION ..........................12 ENTILATION ..................... 13 NSTALLATION INSTRUCTIONS CONNEXION OF THE DIFFERENT ELEMENTS ..............13 ....................13 ONNECTION OF COOKING ZONES CONFIGURATION PROCEDURE .....................
-

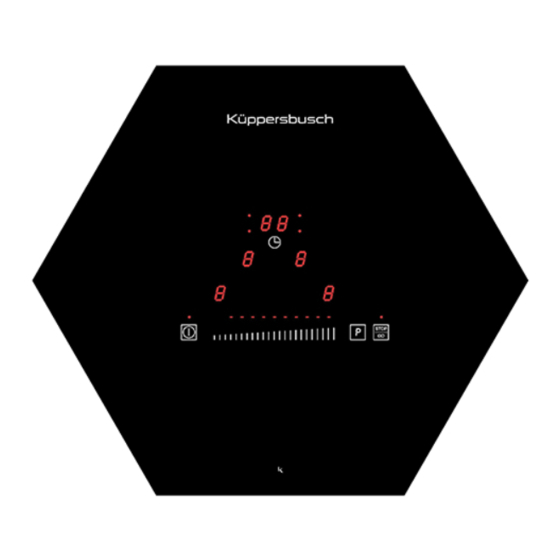

Page 3: Description Of The Appliance
DESCRIPTION OF THE APPLIANCE Appliances and installation dimensions Heating zone Finger touch Dimension 703879-01 Reference 703879-02 703879-03 703880-01 Dimension of 320mm 320mm glass Diameter of the 326mm 326mm throat Thickness of glass Cut-out Dimen- 302mm 180 x 113 mm sion Height total 57mm 35mm... - Page 4 MULTIZONES INSTALLATION Installation Unpack all the material. The installation and connection of the appliance have to be done by approved specialists. The manufacturer can not be held responsible for damage caused by building-in or connecting errors. The appliancemust be well-equipped and installed in a kitchen unit and an adapted and approved work surface.
-
Page 5: Installation Instructions
Installation instructions The installation comes under the exclusive responsibility of specialists. The installer is held to respect the legislation and the standards used in his home country. Fitting - installing: The piece of furniture or the support in which the hob has to be fitted, as well as the edges of furniture, the laminate coatings and the glue used to fix them, must be able to resist temperatures of up to 100 °C. - Page 6 Example: Nota: - It is strictly forbidden to lengthen or shorten the wire of the cooking zones. - We do not take any responsibility in cas of not respecting the connections indicated and the safety warnings.
- Page 7 CONFIGURATION PROCEDURE The table must be configured. Please implement the following steps: I) Important! Before you start, make sure there is no more pot on the hob II) Disconnect the appliance from the grid by removing the fuse or turning the circuit breaker off III) Reconnect the table to the grid IV) Procedure: * Take a pot with a ferromagnetic bottom with a minimum diameter of 16 cm...
-
Page 8: Electrical Connection
ELECTRICAL CONNECTION The installation of this appliance and the connection to the electrical network should be entrusted only to an electrician perfectly aware, and in respect of the normative regulations Protection against parts under tension must be ensured after the building. ...
