Owner's Manual
INSTALL GUIDE
U.S.A. Model
Covers All 15xx and 16xx Series Remote Starters
REMOTE STARTERS
CAR ALARMS
ü
WWW.ULTRASTARTERS.COM
Technical Support 866-698-5872 ext 0
Support@ultrastarters.com
-The system must be placed into Service Mode before any service work is started
on the vehicle. It is the sole responsibility of the vehicle owner to ensure that this is
done. The manufacturer accepts no liability or responsibility for accidental starting
of the vehicle.
- CARBON MONOXIDE - Never Start in an Enclosed Building (Garage, Carport
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Ultra Start 15 SERIES
Summary of Contents for Ultra Start 15 SERIES

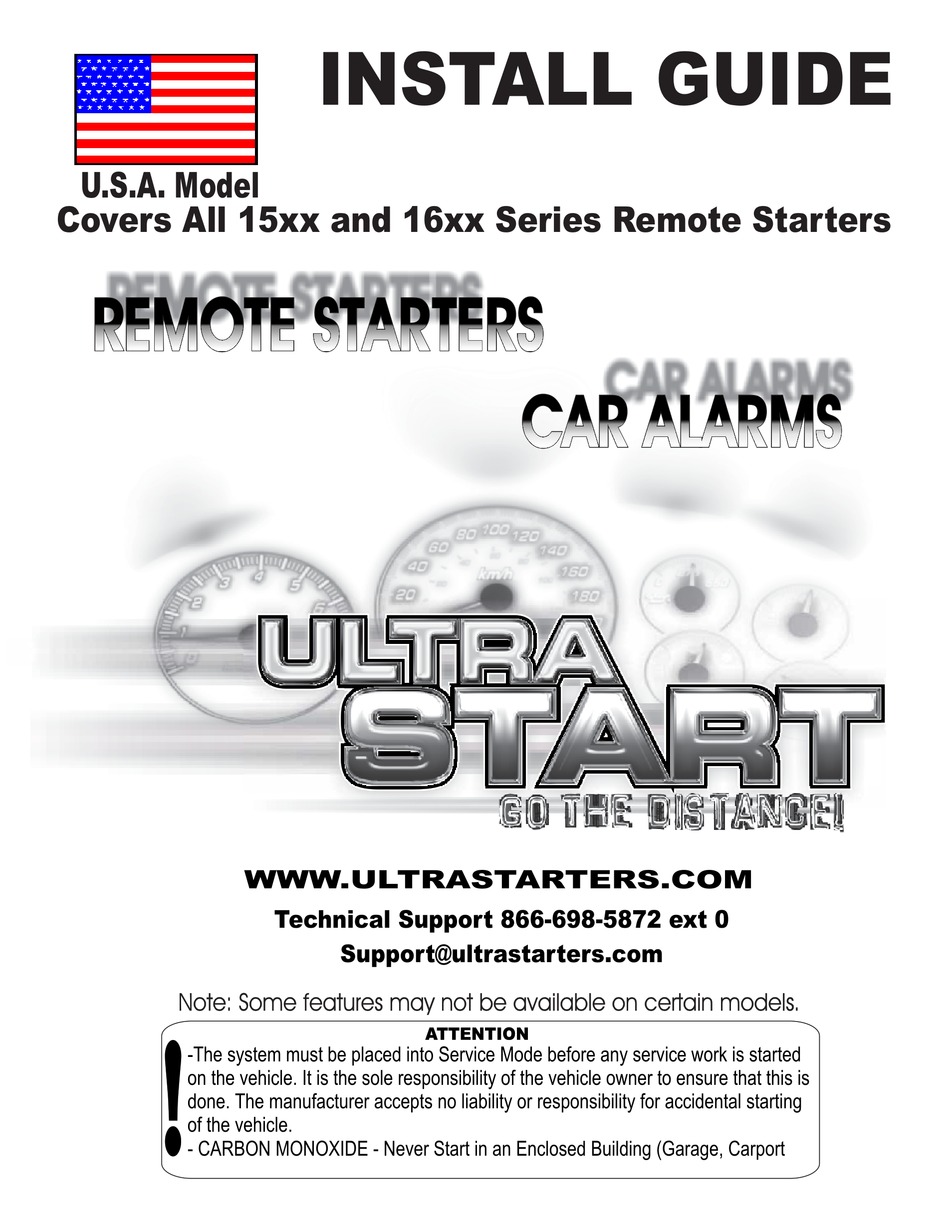

- Page 1 INSTALL GUIDE U.S.A. Model Covers All 15xx and 16xx Series Remote Starters REMOTE STARTERS CAR ALARMS ü WWW.ULTRASTARTERS.COM Technical Support 866-698-5872 ext 0 Support@ultrastarters.com -The system must be placed into Service Mode before any service work is started on the vehicle. It is the sole responsibility of the vehicle owner to ensure that this is done.
-
Page 2: Table Of Contents
INSTALLATION MANUAL REMOTE VEHICLE STARTER Page 2 Table of Contents Table of Contents Page 2 Pre-Installation Page 3 Components Feature List Pre-Installation Installation Procedures Page 4 Wiring Diagrams Page 5-7 Wire Description Page 8-9 6 Pin Connector 14 Pin Connector Auxiliary Connectors Jumper Positions Quick Start Install... -
Page 3: Components
INSTALLATION MANUAL REMOTE VEHICLE STARTER Page 3 Components - Control module - 4 Button remote transmitter’s - Antenna with built in - 6 pin main harness Program Button - 14 pin harness - 4 pin harness - 2 pin Harness - 3 pin keyless entry harness - Temperature Sensor (LT Models) - Hood pin safety switch... -
Page 4: Installation Procedures
INSTALLATION MANUAL REMOTE VEHICLE STARTER Page 4 Recommended Installation Procedures Proper Connections - Remote Starters can handle loads of up to 30 amps for extended periods of time. It is critical to insure that all high current connections are properly soldered and insulated with quality electrical tape. Failing to insure proper connections will result in warranty being VOID and can result in damage to the vehicle and remote starter module. - Page 5 INSTALLATION MANUAL REMOTE VEHICLE STARTER Page 5 Wiring Diagram- 15xx Series YELLOW Starter Output (+) 30amp Output Heater/Acc Output GREEN (+) 30amp Output Power Input (+) 30amp Input Power Input (+) 30amp Input Selectable Output (+) 30amp Output WHITE Ignition Output (+) 30amp Output BLUE Factory Re-arm Output...
- Page 6 INSTALLATION MANUAL REMOTE VEHICLE STARTER Page 6 Wiring Diagram- 1600 Series YELLOW Starter Output (+) 30amp Output Heater/Acc Output GREEN (+) 30amp Output Power Input (+) 30amp Input Power Input (+) 30amp Input Selectable Output (+) 30amp Output WHITE Ignition Output (+) 30amp Output BLUE Factory Re-arm Output...
- Page 7 INSTALLATION MANUAL REMOTE VEHICLE STARTER Page 7 1500/ 1600 Series- Side View Not Available Temperature Sensor Input Note: If the Temperature Sensor is installed the Cold Start Mode will operate by monitoring temperate. If the sensor is not installed the Cold Start Mode will function as Timer Mode.
-
Page 8: 14 Pin Connector
INSTALLATION MANUAL REMOTE VEHICLE STARTER Page 8 6 Pin Power Connector 6-pin Description Test For Wire 1-Yellow 30amp Starter Output This wire will test 0volts in off, accessory and in the ignition position.12volts during start only. 2-Green 30amp Heat/Acc Output This wire will test 0volts in the off position 12- 14volts in the accessory and run positions and 0 volts during start 3-Red... - Page 9 INSTALLATION MANUAL REMOTE VEHICLE STARTER Page 9 14 Pin Connector - Continued From Previous Page 11-Blue/White Tach A/C Tach Signal Input. Used to detect when the vehicle has started. This wire is connected to the vehicles coil, fuel injector or crank sensor wire. 12-Blue Glow Plug Diesel Glow plug input, detects both 12volt and negative...
-
Page 10: Plug-In The Module
INSTALLATION MANUAL REMOTE VEHICLE STARTER Page 10 Step 1 - Connect All Of the Following Wires 6 Pin Power Connector Yellow 30amp Starter Output 12volts during start position only. Green 30amp Heater Output 12volts in the accessory position off during start and 12volts during run. -
Page 11: Clutch Bypass
INSTALLATION MANUAL REMOTE VEHICLE STARTER Page 11 Manual Transmission “M” Models Never install an automatic transmission remote starter into a manual transmission vehicle!!! Doing so may result in serious injury or death. Do not install remote starters in convertible vehicles! The following wires must be connected In addition to the basic remote starter installation. - Page 12 INSTALLATION MANUAL REMOTE VEHICLE STARTER Page 12 Auto Tach Learn 1) Turn the ignition key to the “ON” position. (The park lights will turn on*). 2) Start the vehicle with the key, The LEDs on the antenna will turn on if a proper tach signal is detected**, then after 30-35 seconds the park lights will flash and the horn (Optional) will honk twice to confirm Tach Learn.
-
Page 13: Important Tach Notes
INSTALLATION MANUAL REMOTE VEHICLE STARTER Page 13 Important Tach Notes Tach Learning the remote starter is one of the most important steps in the installation process. Do not tach learn vehicle while the engine is in high idle. To ensure the best possible tach setting, ensure that the vehicle is at low idle/ normal operating RPM. - Page 14 INSTALLATION MANUAL REMOTE VEHICLE STARTER Page 14 Entering Program Mode 1) With the ignition in the OFF position, turn the ignition key from “Off” to “On” 3 times, ON-OFF-ON-OFF-ON within three seconds. (Leave the key in the ON position) 2) Press and release the Program Button located on the antenna. The park lights will flash and the horn (optional) will honk to confirm entering program mode.
-
Page 15: Quick View Programming
INSTALLATION MANUAL REMOTE VEHICLE STARTER Page 15 Quick View Programming * See the following pages for more detailed programming instructions. Menu 1 -Press Lock 1 Flash 2 Flashes 3 Flashes 1 Ignition Lock Enabled Lock Only Disabled 2 Horn Honk Type 1 Type 2 All Honks... - Page 16 INSTALLATION MANUAL REMOTE VEHICLE STARTER Page 16 Menu 1- User Settings Press and Ignition 3x Press and Press and Ignition ON-OFF-ON-OFF-ON Press and Release the On/Off Release the Release the Hold the Press & Release Program Button Program Switch On/Off On Program lock button for Program Switch...
- Page 17 INSTALLATION MANUAL REMOTE VEHICLE STARTER Page 17 Menu 2- Additional Settings Press and Press and Release the Ignition ON-OFF-ON-OFF-ON Hold the Ignition 3x Press and Press and Program Switch Program Switch Press & Release Program Button On/Off Release the Release the 1x =Setting 1 1x = Option 1 On/Off On...
- Page 18 INSTALLATION MANUAL REMOTE VEHICLE STARTER Page 18 Menu 3- Starter Settings Ignition 3x Press and Press and Press and Press and Ignition ON-OFF-ON-OFF-ON Release the On/Off Release the Release the Hold the Program Switch On/Off On Program Start button Press & Release Program Button Program Switch 1x =Setting 1 Button...
- Page 19 INSTALLATION MANUAL REMOTE VEHICLE STARTER Page 19 Menu 3- Starter Settings - Continued From Previous Page Setting 5 Maximum Crank Time 1) 10 Seconds 1 Flash/Honk 10 sec max time that the starter will stay engaged. 2) 3 Seconds 2 Flashes/Honks 3 sec max time that the starter will stay engaged.
- Page 20 INSTALLATION MANUAL REMOTE VEHICLE STARTER Page 20 Menu 4- Tach Settings Press and Ignition 3x Press and Press and Press and Release the On/Off Release the Release the Hold the Program Switch On/Off On Program # button Program Switch 1x =Setting 1 Button for Menu 4 1x = Option 1...
-
Page 21: Transmitter Programming
Lock Button Lock Button On/Off On Program Button Dual Car, Control 2 Ultra Start Single Car Operation, Program up to 4 remote’s vehicles with the same remote Battery Replacement The transmitter battery should be changed at least once every year to maintain proper operating range. - Page 22 INSTALLATION MANUAL REMOTE VEHICLE STARTER Page 22 Negative Type Door Locks 250ma Vehicle Lock To Control Lock/Unlock Relay or Switch Actuators lock Green Blue Negative Door Locks (More Than 250ma) Fused +12V Vehicle Ground Lock/Unlock Lock lock Switch Green Blue To Control Relay or Actuator Positive Type Door Locks...
-
Page 23: Diagnostics
INSTALLATION MANUAL REMOTE VEHICLE STARTER Page 23 5 Wire / Reverse Polarity Type Door Locks Fused +12V Green Blue Vehicle Lock Lock/Unlock To Actuator Switch lock Aftermarket Doorlock Actuators Ground Vacuum Type Door Locks DIAGNOSTICS Ground Fused +12V Green Blue Lock To Vacuum Pump... -
Page 24: Diagnostic Memory
INSTALLATION MANUAL REMOTE VEHICLE STARTER Page 24 DIAGNOSTICS If the remote starter does not activate when the start button is pressed the park lights will flash a diagnostic to indicate what shutdown input has been triggered. For example when the start button is pressed the park lights flash 3 times slowly. Looking at the chart below this would indicate that the system is in Service Mode, simply follow the instructions listed in the owners manual on exiting Service Mode and the remote starter will begin to function as normal.
