REV.2006.01
Covers the installation of the

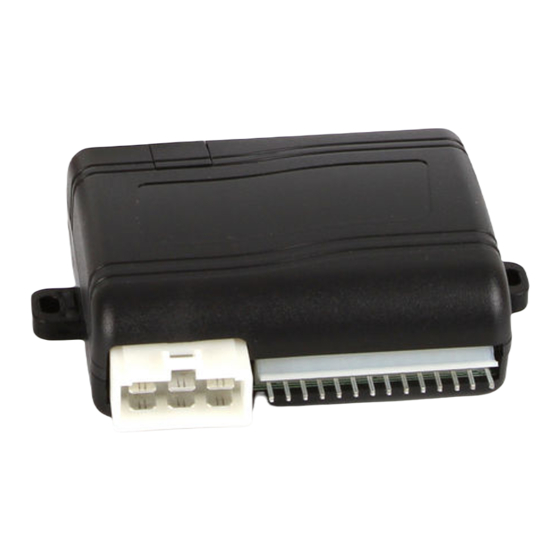

1155 Series Remote Starter
Technical Support: 866-698-5872 ext 0
The system must be placed into Service Mode before any service work is started on the
CARBON MONOXIDE MAY CAUSE SERIOUS INJURY, EVEN DEATH!
vehicle. It is the sole responsibility of the vehicle owner to ensure that this is done. The
manufacturer accepts no liability or responsibility for accidental starting of the vehicle.
It is the sole responsibility of the user to place the system in Service Mode
CARBON MONOXIDE - Never Start in an Enclosed Building (Garage, Carport etc...)
when parking in an enclosed area ex: garage, partially enclosed area
- The Hood Pin Safety Switch Must Always be Installed!
ex: carport, or when the vehicle is being serviced.
www.ultrastarters.com
support@ultrastarters.com
Warning!!
INSTALL GUIDE
Advertisement
Table of Contents
Related Manuals for Ultra Start 1155 Series
Summary of Contents for Ultra Start 1155 Series
- Page 1 REV.2006.01 INSTALL GUIDE Covers the installation of the 1155 Series Remote Starter www.ultrastarters.com Technical Support: 866-698-5872 ext 0 support@ultrastarters.com Warning!! The system must be placed into Service Mode before any service work is started on the CARBON MONOXIDE MAY CAUSE SERIOUS INJURY, EVEN DEATH! vehicle.
- Page 2 Components - Control module - Installation guide - 6 pin main harness with - Hood pin safety switch dual 30amp power inputs - 14 pin auxiliary harness - 2 pin keyless entry harness - LED/Program Switch Diagnostics PARK LIGHTS STATUS LED DIAGNOSTIC CODE 3 Slow Flashes LED’s On Solid...
- Page 3 Not used on this model Negative When Running Not used on this model Positive Start Trigger* Negative Start Trigger* * Connect only one of these wires for remote start activation. The input requires 2 pulses within 2 seconds to activate. Program LED/Switch The jumpers control the output from the white wire from the six pin harness.
-
Page 4: Wiring Connections
WIRING CONNECTIONS 6 Pin Power Connector Yellow Starter 30amp output 12volts during crank only. Green Heater 30amp output 12volts in accessory off during start. 12 power 30amp input Constant 12volt power at ignition harness. 12 power 30amp input Constant 12volt power at ignition harness. Blue Ignition 1 30amp output... - Page 5 QUICK START INSTALL Step 1 - Connect All Of the Following Wires 6 Pin Power Connector Yellow Starter Output Connect To The Vehicles Starter Wire. Green Heater Output Connect To The Vehicles Accessory Wire. 12 power Input Connect to Constant 12 Volt Power Source- High Current. 12 power Input Connect to Constant 12 Volt Power Source- High Current.
- Page 6 Programming Overview Program mode allows you to adjust the settings and options of your system. Your system has been intelligently designed by installers with years of experience. The system’s default settings do not require any program changes in most cases. However, this system does incorporate a highly advanced programming system that can be easily adjusted.
- Page 7 Programming Menu Turn the ignition key to the on position 3 times then press and release the program button. The park lights will turn on and the horn(Optional) will honk once. While the park lights are on press and release the program button until the LED is flashing the same number of times as the program setting that is to be changed.
- Page 8 Setting 5- Run Time 1 30 Min Run Time 1 Flash Remote Starter runs for 30min when activated 2 45 Min Run Time 2 Flashes Remote Starter runs for 45min when activated 3* 15 Min Run Time 3 Flashes Remote Starter runs for 15 min when activated Press the Program Button 5 times to select setting 5 (This will be confirmed by 5 LED flashes) Press and hold the Program Button until you receive the appropriate # of park light flashes and horn honks.
