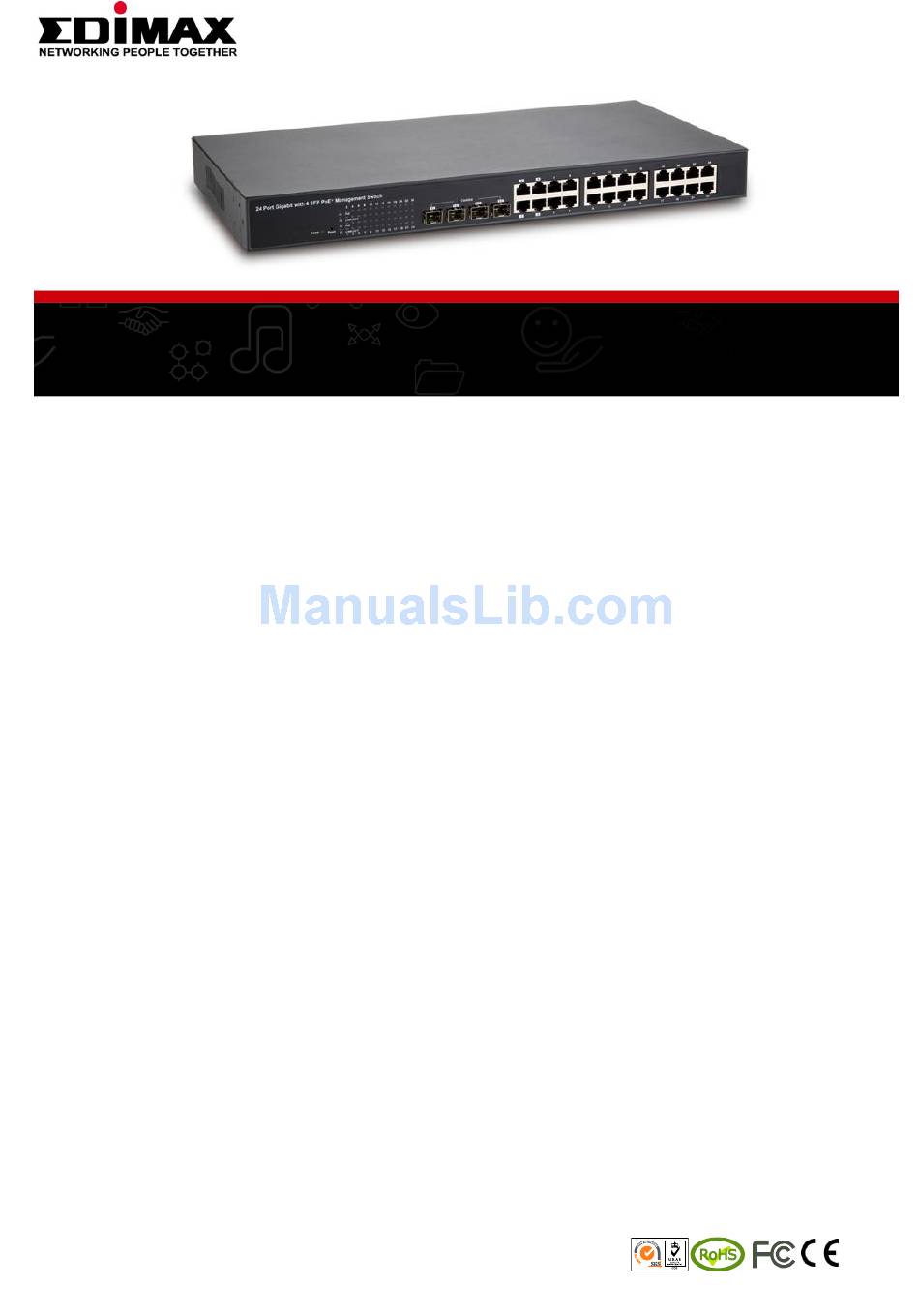

Edimax ES-5824PHG Datasheet

ES-5824PHG
Gigabit 24-Port PoE+ Web Smart Switch
The Edimax ES-5824PHG is a 24-port gigabit rack-mount switch with 24 PSE/PoE ports. It is designed for sturdy network
connections in medium to large network environments. Its standard 19-inch rack-mount brackets allow for perfect integration
with the most widely used mounting systems on the market. The Edimax ES-5824PHG is truly a superb choice to boost your
network environment's performance and efficiency.
Complies with the IEEE 802.3at Power over Ethernet (PoE+) Standard
The ES-5824PHG features 24 IEEE 802.3at Power over Ethernet (PoE+) ports, which supplies up to 30 watts of electricity per
port. It can convert standard 90-260V AC electricity into low-voltage DC electricity to power IEEE 802.3at/af compliant
network accessories via existing LAN cables. With PoE detection capability, the ES-5824PHG is able to verify whether the
connected device is IEEE 802.3af compliant. In the event that a PoE device is not detected, only network data will be
transmitted through the LAN cable. The ES-5824PHG can be used with different PoE products, such as access points, network
cameras, or VoIP devices. It is the best solution for network environments where power outlets are difficult to access.
Compliant with Cat 5 Ethernet Cables for Higher Cost Efficiency
The ES-5824PHG can transmit both power and network data via Cat 5 Ethernet cables. With the ES-5824PHG, no special
networking cables or power adapters are necessary for PoE applications. The ES-5824PHG reduces the difficulty, time, and
cost of establishing a sturdy network environment.
Features Power Budget UI for Easy Management of PoE Devices
The ES-5824PHG features an innovative power budget UI that allows IT managers to monitor the power consumption on each
PoE port as well as the total power consumption of those devices connected to the ES-5824PHG. IT managers can easily
monitor the whole PoE network and assess the total power usage before adding new PoE devices to the PoE network
architecture. The power budget UI also features a remote on/off function for each PoE port. When one PoE device hangs, the
IT manager does not need to unplug and plug the network line manually. Simply by clicking the power on/off button, the IT
manager can reset the PoE device remotely in seconds.
Smart Tools for Improved Network Efficiency
The ES-5824PHG features smart QoS/CoS and network monitoring tools that allow for improved network efficiency. Its
security and management features include bandwidth control and VLAN (IEEE 802.1Q VLAN tagging and port-based VLAN).
Through its web-based interface, an administrator can set up VLANs to segregate traffic, prioritize mission-critical data with
QoS, and configure link aggregation settings to create fat traffic pipelines. In addition, the ES-5824PHG also supports Rapid
Spanning Tree to detect and break unintentional cabling loops within the network. All of these features offer extra protection
on the network edge. Best of all, the password-protected configuration interface can be accessed remotely.
