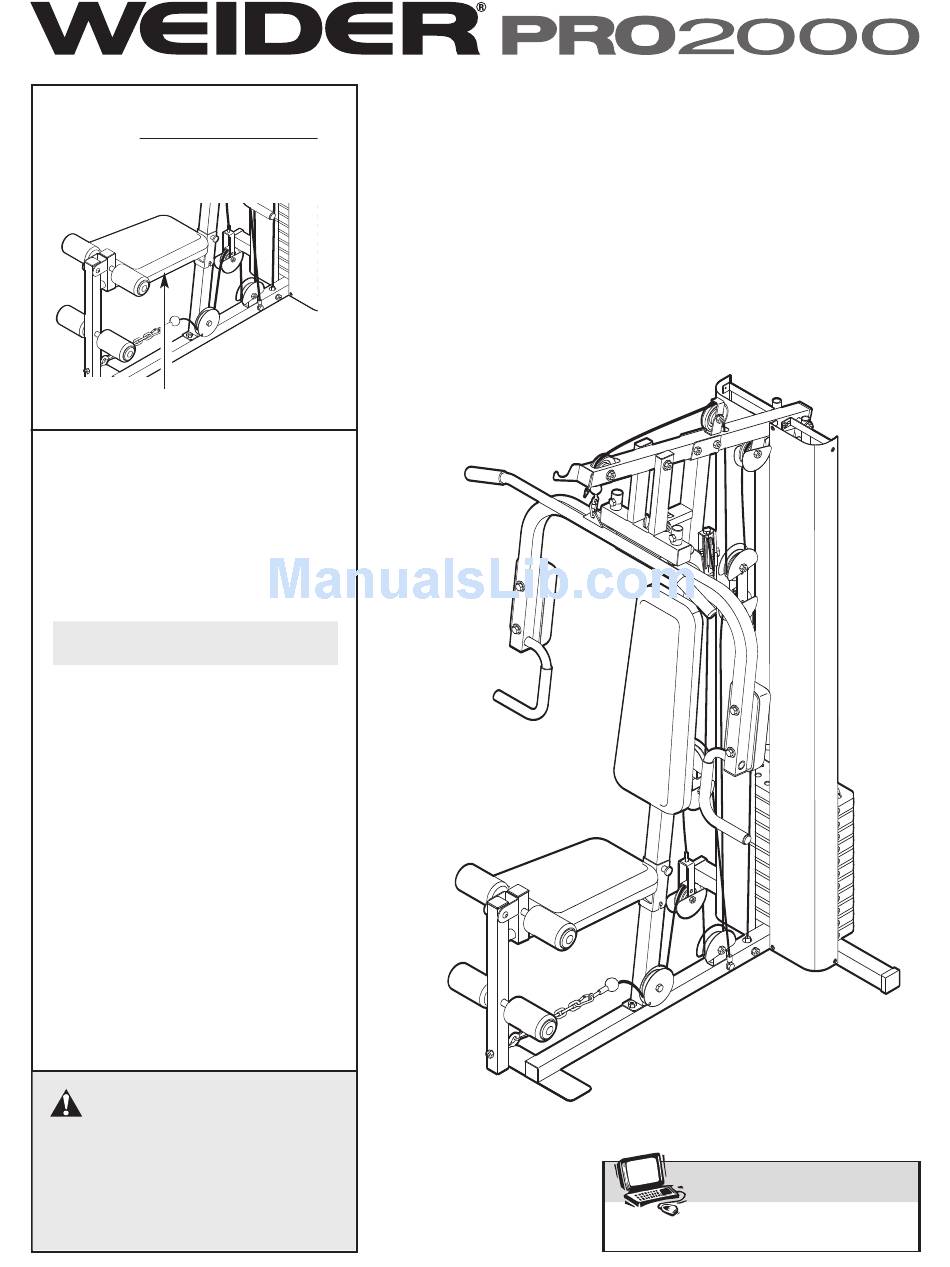

Model No. WEEVSY2026.0
Serial No.
Write the serial number in the
space above for future reference.
Serial Number Decal (Under Seat)
QUESTIONS?
As a manufacturer, we are com-
mitted to providing complete
customer satisfaction. If you have
questions, or if there are missing
parts, please call:
08457 089 009
Or write:
ICON Health & Fitness, Ltd.
Unit 4
Revie Road Industrial Estate
Revie Road
Beeston
Leeds, LS118JG
UK
email: csuk@iconeurope.com
CAUTION
Read all precautions and instruc-
tions in this manual before using
this equipment. Save this manual
for future reference.
USER'S MANUAL
Visit our website at
www.iconeurope.com

Advertisement

Table of Contents
loading

Related Manuals for Weider Pro 2000

Summary of Contents for Weider Pro 2000

  • Page 1 Model No. WEEVSY2026.0 Serial No. USER'S MANUAL Write the serial number in the space above for future reference. Serial Number Decal (Under Seat) QUESTIONS? As a manufacturer, we are com- mitted to providing complete customer satisfaction. If you have questions, or if there are missing parts, please call: 08457 089 009 Or write:...

  • Page 2: Table Of Contents

    Apply the decal in the location shown. VERTICAL WARNING PN 218558 – Black Text/Clear Background PN 218559 – White Text/Clear Background WEIDER is a registered trademark of ICON IP, Inc.

  • Page 3: Important Precautions

    IMPORTANT PRECAUTIONS WARNING: To reduce the risk of serious injury, read the following important precau- tions before using the weight system. 1. Read all instructions in this manual and in 6. Inspect and properly tighten all parts regular- the accompanying literature and all warnings ly.

  • Page 4: Before You Begin

    BEFORE YOU BEGIN Thank you for selecting the versatile WEIDER ® reading this manual, see the front cover of this manu- 2000 weight system. The weight system offers a selec- al. To help us assist you, please note the product tion of weight stations designed to develop every model number and serial number before contacting us.

  • Page 5: Part Identification Chart

    PART IDENTIFICATION CHART—Model No. WEEVSY2026.0 M4 x 12mm Self- M6 x 63mm Screw (67) M8 x 63mm Bolt (66) tapping Screw (56) M6 x 58mm Screw (65) M6 x 16mm M10 x 65mm Carriage Bolt (59) Screw (40) M10 x 52mm Bolt (52) M4 x 19mm Self- tapping Screw (76) M8 x 70mm Carriage Bolt (86)

  • Page 6: Assembly

    ASSEMBLY • As you assemble the weight system, make sure Make Things Easier for Yourself all parts are oriented as shown in the drawings. Everything in this manual is designed to ensure • For help identifying small parts, use the PART that the weight system can be assembled suc- IDENTIFICATION CHART.

  • Page 7: M8 Nylon

    2. Attach the Upright (3) to the Base (1) with the two M8 x 63mm Carriage Bolts (58) and two M8 Nylon Locknuts (69). Do not tighten the Nylon Locknuts yet. Attach the Press Frame Lock (39) to the Upright (3) with an M8 x 63mm Bolt (66), two M8 Washers (71), and an M8 Nylon Locknut (69).
  • Page 8 4. Slide ten Weights (15) onto the Weight Guides (10), with the slot for the Weight Pin (not shown) on the bottom and on the side facing away from Lubricate the Upright (3). Insert the Weight Tube (12) into the Weights (15). Lubricate the indicated holes in a Weight (15) with grease.
  • Page 9 ARM ASSEMBLY Grease 7. Grease the M10 x 57mm Bolt Set (81) and attach the Leg Lever to the Seat Frame (8) with the Bolt Set. Make sure that the barrel of the Bolt Set is inserted through both sides of the bracket on the Seat Frame.

  • Page 10: M6 Nylon

    10. Insert the post on the Left Arm (7) through the hole in the Press Frame (5). Make sure the Arm is behind the indicated bracket on the Press Frame. Slide a 25mm Washer (29) over the post on the Left Arm (7).
  • Page 11 14. Wrap the High Cable (50) over a 90mm Pulley (34). Attach the Pulley and two Finger Guards (35) to the Top Frame (4) with an M10 x 46mm Bolt (53) and an M10 Nylon Locknut (68). Repeat this step with another 90mm Pulley (34), two Finger Guards (35), an M10 x 46mm Bolt (53), and an M10 Nylon Locknut (68).
  • Page 12 18. Wrap the Press Cable (49) under a 90mm Pulley (34). Attach the Pulley and two Finger Guards (35) to the Double “U”-bracket (42) with an M10 x 46mm Bolt (53) and an M10 Nylon Locknut (68). 19. Apply grease to an M10 x 78mm Bolt (54). Attach a Pulley Arm (38) to the Upright (3) with Grease the Bolt and an M10 Nylon Locknut (68).
  • Page 13 22. Wrap the Short Cable (47) over a 90mm Pulley (34). Attach the Pulley and two Finger Guards (35) to the Double “U”-bracket (42) with an M10 x 46mm Bolt (53) and an M10 Nylon Locknut (68). 23. Attach the end of the Short Cable (47) to the “U”-bracket (43) with an M8 Washer (71) and an M8 Nylon Locknut (69).
  • Page 14 26. Wrap the Low Cable (48) under a 90mm Pulley (34). Attach the Pulley and two Finger Guards (35) to the bracket on the Base (1) with an M10 x 46mm Bolt (53) and an M10 Nylon Locknut (68). 27. Route the Low Cable (48) over a 90mm Pulley (34).
  • Page 15 SEAT ASSEMBLY 30. Attach the Backrest (18) to the Upright (3) with two M6 x 63mm Screws (67) and two M6 Washers (73). Wide End 31. Attach the Seat (19), oriented as shown, to the Seat Frame (8) with four M6 x 16mm Screws (40).
  • Page 16 33. Attach the Right and Left Shroud Frames (84, 85) to the Top Frame (4) with an M8 x 68mm Bolt (63) and an M8 Nylon Locknut (69). Do not tight- en the Nylon Locknut yet. 34. Attach the Left Shroud (87) to the Left Shroud Frame (85) and the Top Frame (4) with two M4 x 12mm Self-tapping Screws (56) and two M4 Washers (77).

  • Page 17: Adjustments

    ADJUSTMENTS This section explains how to adjust the weight system. Refer to the accompanying exercise guide to see the cor- rect form for each exercise. Make sure all parts are properly tightened each time you use the weight system. Replace any worn parts immediate- ly.

  • Page 18: Weight Resistance Chart

    WEIGHT RESISTANCE CHART The chart below shows the approximate weight resistance at each exercise station. Weight resistance shown for the butterfly arm station is for each butterfly arm. Note: The actual resistance at each station may vary due to differences in individual weight plates as well as friction between the cables, pulleys, and weight guides.

  • Page 19: Cable Diagram

    CABLE DIAGRAMS The cable diagrams below show the proper routing of the Short Cable (47), the Low Cable (48), the Press Cable (49), and the High Cable (50). Use the diagrams to make sure that the cables have been assembled cor- rectly.

  • Page 20: Troubleshooting And Maintenance

    TROUBLESHOOTING AND MAINTENANCE TIGHTENING THE CABLES Woven cable, the type of cable used on the weight system, can stretch slightly when it is first used. If there is slack in the cables before resistance is felt, the cables should be tightened. Slack can be removed by moving a 90mm Pulley (34), the Cable Trap (36), and two Finger Guards (35) to a set of holes closer to the center of the two Pulley...

  • Page 21: Part List

    PART LIST—Model No. WEEVSY2026.0 R0706A Key No. Qty. Description Key No. Qty. Description Base Short Cable Stabilizer Low Cable Upright Press Cable Top Frame High Cable Press Frame Large Spacer Right Arm M10 x 52mm Bolt Left Arm M10 x 46mm Bolt Seat Frame M10 x 78mm Bolt Leg Lever...

  • Page 22: Exploded Drawing

    EXPLODED DRAWING A—Model No. WEEVSY2026.0 R0706A...
  • Page 23 EXPLODED DRAWING B—Model No. WEEVSY2026.0 R0706A 73 67...

  • Page 24: Ordering Replacement Parts

    Please provide the following information when ordering replacement parts: • the MODEL NUMBER of the product (WEEVSY2026.0) • the NAME of the product (WEIDER PRO 2000 weight system) • the SERIAL NUMBER of the product (see the front cover of this manual) •...
