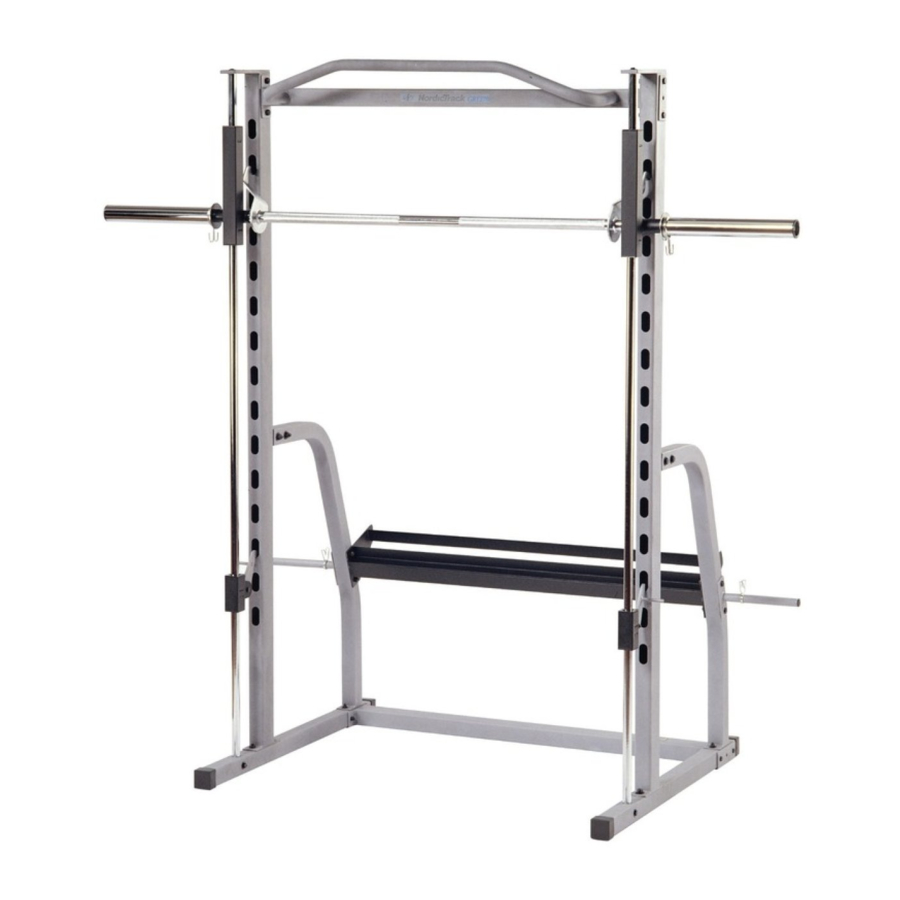

Model No. NTEVBE04911
Serial No.
Write the serial number in the
space above for reference.
Number
QUESTIONS?
As a manufacturer, we are com-
mitted to providing complete
customer satisfaction. If you
have questions, or if there are
missing or damaged parts,
please call:
08457 089 009
Or write:
ICON Health & Fitness Ltd.
Unit 4
Revie Road Industrial Estate
Revie Road
Beeston
Leeds, LS118JG
UK
email: csuk@iconeurope.com
CAUTION
Read all precautions and instruc-
tions in this manual before
using this equipment. Save this
manual for future reference.
Serial
Decal
USER'S MANUAL
Visit our website at
www.iconeurope.com
®

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Grt270 Bench and is the answer not in the manual?

Questions and answers

Related Manuals for NordicTrack Grt270 Bench

Summary of Contents for NordicTrack Grt270 Bench

  • Page 1 ® Model No. NTEVBE04911 Serial No. USER’S MANUAL Write the serial number in the space above for reference. Serial Number Decal QUESTIONS? As a manufacturer, we are com- mitted to providing complete customer satisfaction. If you have questions, or if there are missing or damaged parts, please call: 08457 089 009...
