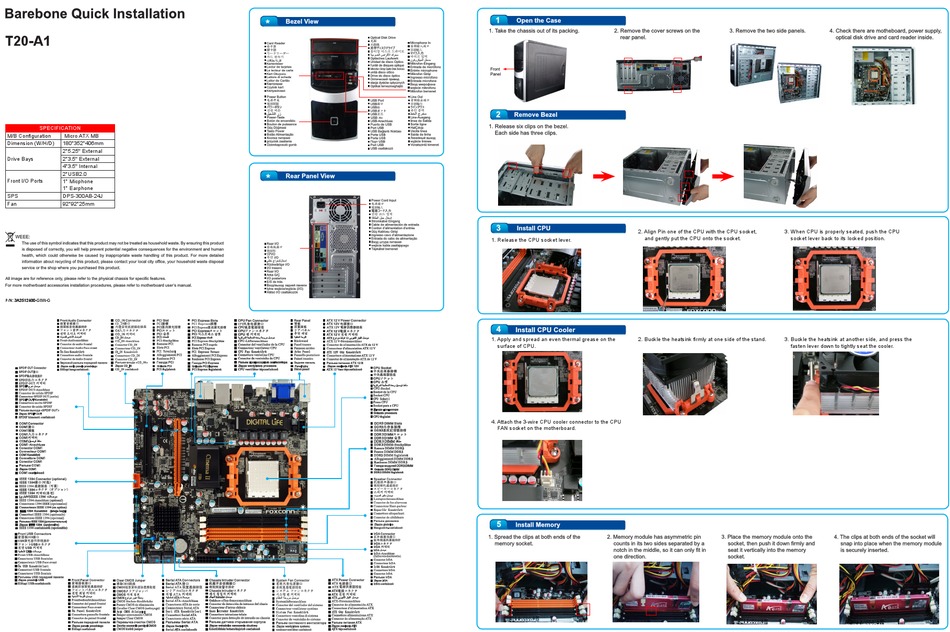

T20-A1
SPECIFICATION
M/B Configuration
Micro ATX MB
Dimension (W/H/D)
180*352*406mm
2*5.25" External
Drive Bays
2*3.5" External
4*3.5" Internal
2*USB2.0
Front I/O Ports
1* Micphone
1* Earphone
SPS
DPS-300AB-24J
Fan
92*92*25mm
P/N�� 3A2512400-
�� 3A2512400-
3A2512400-G8W-G
2. Align Pin one of the CPU with the CPU socket,
and gently put the CPU onto the socket.
1. Release the CPU socket lever.
1. Apply and spread an even thermal grease on the
2. Buckle the heatsink firmly at one side of the stand.
surface of CPU.
4. Attach the 3-wire CPU cooler connector to the CPU
FAN socket on the motherboard.
3. When CPU is properly seated, push the CPU
socket lever back to its locked position.
3. Buckle the heatsink at another side, and press the
fasten lever down to tightly seat the cooler.
