Summary of Contents for Invacare Tracer SX5

  • Page 1: User Manual

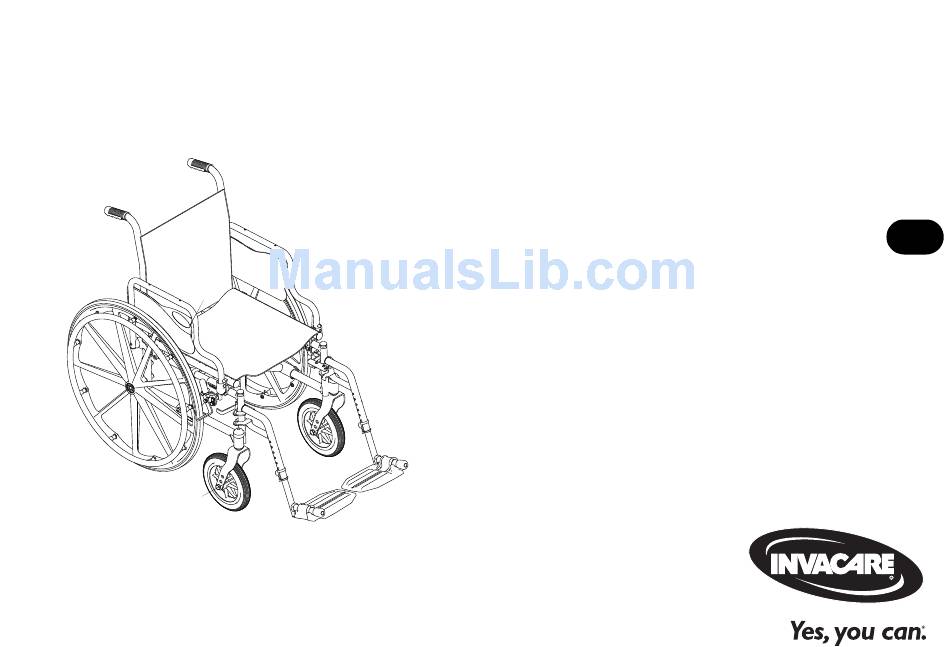

    ® ® Invacare Tracer SX5 Wheelchair User Manual This manual MUST be given to the user of the product. BEFORE using this product, read this manual and save for future reference.
  • Page 2 © 2011 Invacare Corporation. All rights reserved. Republication, duplication or modification in whole or in part is prohibited without prior written per- mission from Invacare. Trademarks are identified by ™ and ®. All trademarks are owned by or licensed to Invacare Corporation or its subsidiaries unless otherwise noted.

  • Page 3: Table Of Contents

    Installing/Removing Front Riggings........................................35 Adjusting Footplate Height ..........................................36 Raising/Lowering Elevating Legrest Assembly ....................................37 Replacing Heel Loop ............................................38 ARMS ........................................39 Using or Replacing Flip-Back Armrest ......................................39 Adjusting Armrest Height ..........................................41 ® ® Part No. 1110550 Invacare Tracer SX5 Wheelchair...
  • Page 4 Adjusting Forks..............................................52 Replacing Front Casters ............................................. 52 10 ANTI-TIPPERS/WHEEL LOCKS ..............................54 Installing/Adjusting Anti-Tippers........................................54 Using/Adjusting Patient Operated Wheel Locks..................................57 11 SEAT TO FLOOR ....................................60 Changing Seat-to-Floor Height ......................................... 60 ® ® Invacare Tracer SX5 Wheelchair Part No. 1110550...
  • Page 5 Using/adjusting the Clamp-On Wheel Locks ....................................72 13 OPTIONS ......................................74 Installing Amputee Bracket..........................................74 Installing Crutch and Cane Carrier........................................76 Installing the Seat Positioning Strap ......................................... 77 Installing the Wheel Lock Extension Handle....................................78 ® ® Part No. 1110550 Invacare Tracer SX5 Wheelchair...

  • Page 6: General

    Caution indicates a potentially hazardous situation which, if not avoided, may result in property damage or minor injury or both. IMPORTANT Indicates a hazardous situation that could result in damage to property if it is not avoided. Gives useful tips, recommendations and information for efficient, trouble-free use.  ® ® Invacare Tracer SX5 Wheelchair Part No. 1110550...

  • Page 7: Limited Warranty

    (seat, back and armrests of the arm assembly) and remaining components of this product when purchased new and unused to be free from defects in materials and workmanship for a period of thirteen (13) months from date of purchase from Invacare or a dealer, with a copy of the seller’s invoice required for coverage under this warranty.

  • Page 8: Safety

    Invacare and are not recommended for use with Invacare products. NOTICE THE INFORMATION CONTAINED IN THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. Check all parts for shipping damage and test before using. In case of damage, DO NOT use. Contact Invacare/Carrier for further instruction. ® ®...

  • Page 9: Operating Information

    2-inch ground clearance. Anti-tippers must be attached at all times. Inasmuch as the anti-tippers are an option on this wheelchair (you may order with or without the anti-tippers), Invacare strongly recommends ordering the anti-tippers as a safeguard for the wheelchair user.
  • Page 10 ALWAYS use the handrims for self-propulsion. Inasmuch as the handrims are an option on this wheelchair (you may order with or without the handrims), Invacare strongly recommends ordering the handrims as an additional safeguard for the wheelchair user.
  • Page 11 DO NOT attempt to lift the wheelchair by any removable (detachable) parts. Lifting by means of any removable (detachable) parts of the wheelchair may result in injury to the user or damage to the wheelchair. ® ® Part No. 1110550 Invacare Tracer SX5 Wheelchair...
  • Page 12 ALWAYS wear your seat positioning strap. Inasmuch as the seat positioning strap is an option on this wheelchair (you may order with or without the seat positioning strap), Invacare strongly recommends ordering the seat positioning strap as an additional safeguard for the wheelchair user. The seat positioning strap is a positioning strap only. It is not designed for use as a safety device withstanding high stress loads such as auto or aircraft safety belts.
  • Page 13 ✓ ✓ WHEEL SIZE • ✓ ✓ ✓ ✓ • ✓ ✓ WHEEL POSITION ✓ ✓ ✓ ✓ ✓ ✓ ANTI-TIPPERS • ✓ ✓ ✓ ✓ ✓ ✓ • USER CONDITION ® ® Part No. 1110550 Invacare Tracer SX5 Wheelchair...

  • Page 14: Weight Limitation

    WARNING Invacare does not recommend the use of its wheelchairs as a weight training apparatus. Invacare wheelchairs have not been designed or tested as a seat for any kind of weight training. If occupant uses said wheelchair as a weight training apparatus, Invacare shall not be liable for bodily injury or damage to the wheelchair and the warranty is void.
  • Page 15 WARNING As a manufacturer of wheelchairs, Invacare endeavors to supply a wide variety of wheelchairs to meet many needs of the end user. However, final selection of the type of wheelchair to be used by an individual rests solely with the user and his/her healthcare professional capable of making such a selection.

  • Page 16: Safety/Handling Of Wheelchairs

    Use this information only as a basic guide. The techniques that are discussed on the following pages have been used successfully by many. Individual wheelchair users often develop skills to deal with daily living activities that may differ from those described in this manual. Invacare recognizes and encourages each individual to try what works best for him/her in overcoming architectural obstacles that they may encounter.
  • Page 17 Coping With Everyday Obstacles Coping with the irritation of everyday obstacles can be alleviated somewhat by learning how to manage your wheelchair. Keep in mind your center of gravity to maintain stability and balance. ® ® Part No. 1110550 Invacare Tracer SX5 Wheelchair...
  • Page 18 Push the wheelchair forward until the rear wheels roll up and over the Step Tube curb. FIGURE 2 Method 1 - Wheelchair With Step Tubes ® ® Invacare Tracer SX5 Wheelchair Part No. 1110550...
  • Page 19 Extreme caution is advised when it is necessary to move an occupied or unoccupied wheelchair up or down the stairs. Invacare recommends that, if possible, the user be removed from the wheelchair prior to moving. Invacare recommends using two assistants and making thorough preparations. Make sure to use only secure, non-detachable parts for hand-held supports.
  • Page 20 The wheelchair should not be lowered until the last stair has been negotiated and the wheelchair has been rolled away from the stairway. FIGURE 4 Stairways If necessary, rotate the anti-tippers so the wheels are facing down. ® ® Invacare Tracer SX5 Wheelchair Part No. 1110550...
  • Page 21 Shift body weight into seat with transfer. FIGURE 5 Transferring To and From Other Seats During independent transfer, little or no seat platform will be beneath you. Use a transfer board if at all possible. ® ® Part No. 1110550 Invacare Tracer SX5 Wheelchair...
  • Page 22 Press downward on the top of the seat rail until the wheelchair is fully open and the seat rails are fully seated in the H-blocks. Tracer SX5 RECLINERS ONLY - Install spreader bar. Refer to Removing/Installing the spreader bar in section 10 of this manual.
  • Page 23 2 SAFETY Folding Wheelchair Tracer SX5 RECLINERS ONLY - Perform the following steps: Push in detent pin on one side of spreader bar. While holding the spreader bar, pull out handle until the release pin is out of the handle of the back cane.
  • Page 24 Continue to close the wheelchair by grasping the armrest furthest from you and pulling the armrest towards you. FIGURE 8 Folding Hammock or Sling Seat Models ® ® Invacare Tracer SX5 Wheelchair Part No. 1110550...

  • Page 25: Overview

    WARNING NOTE: On all  SX5 non-recliner is located on right Do not operate without the anti- tip tubes installed. adjustable anti‐tippers crossbrace. Tracer SX5 recliner is AVERTISSEMENT located on right frame) NE PAS utiliser sans d’abord avoir installé les antibascules. No. 1091552 ®...

  • Page 26: Component Identification

    3 OVERVIEW Component Identification Back Upholstery Seat Upholstery Rear Wheel Wheelchair Frame Handrim Rear Wheel Axle Wheel Lock Front Caster ® ® Invacare Tracer SX5 Wheelchair Part No. 1110550...

  • Page 27: Typical Product Parameters

    3 OVERVIEW Typical Product Parameters Tracer SX5 Recliner Tracer SX5 Overall Width: , 24 , 26 , 28 , or 30 inches Overall Depth (without front riggings) 34 inches inches Seat Width 14, 16, 18, 20 or 22 inches Seat Depth...
  • Page 28 3 OVERVIEW Tracer SX5 Recliner Tracer SX5 Caster Size 8x1-1/4 inch Urethane*, 6x1 inch Urethane, 8x1-1/4 inch Pneumatic or 8x1 inch Urethane, Pneumatic-Flat Free Insert 8x1 inch Solid Rubber* and 8x1-3/4 inch Semi Pneumatic 8x1-1/4 inch Pneumatic (standard on 20 and 22 inch width chairs)

  • Page 29: Safety Inspection/Troubleshooting

    Inspect seat positioning strap for any signs of wear. Ensure buckle latches. Verify hardware that attaches strap to frame is secure and undamaged. Replace if necessary. ❑ Inspect tires for flat spots and wear. ® ® Part No. 1110550 Invacare Tracer SX5 Wheelchair...
  • Page 30 Ensure all spokes are uniformly tight. ❑ Inspect axle assembly for proper tension by spinning caster. Caster should come to a gradual stop. ❑ Inspect front caster for cracked, bent or broken spokes. ® ® Invacare Tracer SX5 Wheelchair Part No. 1110550...
  • Page 31 Ensure wheel bearings are clean and free of moisture. ❑ Inspect casters for cracks and wear. ❑ Clean upholstery and armrests with mild soap and water. ❑ Check that all labels are present and legible. Replace if necessary. ® ® Part No. 1110550 Invacare Tracer SX5 Wheelchair...

  • Page 32: Troubleshooting

    Replace any labels that are missing, worn, or torn. Refer to Label Locations on page 8 for a listing of the labels and their locations. CAUTION DO NOT overtighten hardware attaching to the frame. This could cause damage to the frame tubing. ® ® Invacare Tracer SX5 Wheelchair Part No. 1110550...

  • Page 33: Suggested Maintenance Procedures

    Rubber Tires - 30% or more of the tire has worn away. Invacare recommends that rear wheel tire/tube and caster tire/tube be replaced every five years. Periodically check handrims to ensure they are secured to the rear wheels. If loose, have them tightened by a qualified technician.
  • Page 34 10. Hand grips should be checked monthly for wear/looseness/deterioration. Clean if desired. Replace if looseness or deterioration is found. Replacing/Repairing Rear Wheel Tire/Tube WARNING Replacement of solid urethane tires is not recommended. If the solid urethane tire needs repaired, Invacare recommends replacing the complete wheel assembly. Replacement of rear wheel tube must be performed by a qualified technician.

  • Page 35: Front Riggings

    To release the front rigging, push the front rigging release lever inward, rotate front rigging outward. Removing Push the front rigging release lever inward Rotate swingaway front rigging assembly outward. Lift the swingaway front rigging assembly off the hinge pins. ® ® Part No. 1110550 Invacare Tracer SX5 Wheelchair...

  • Page 36: Adjusting Footplate Height

    Pull the cam lock lever up to unlocked position.  The elevating legrest has two sets of release buttons, one set above the other. Each set will be visible one at a time allowing finer footplate height adjustment. ® ® Invacare Tracer SX5 Wheelchair Part No. 1110550...

  • Page 37: Raising/Lowering Elevating Legrest Assembly

    To lower the elevating legrest, perform the following: Support Tube Support user leg with one hand. Push release lever downward with other hand. FIGURE 3 Raising/Lowering Elevating Legrest Assembly Gently, lower user leg down and rest against the legrest. ® ® Part No. 1110550 Invacare Tracer SX5 Wheelchair...

  • Page 38: Replacing Heel Loop

    Screw Support Lever Spring Buttons Release Button Heel Loop Spacer Adjustment Holes Footplate Slide Tube Assembly Cam Lock Lever Footplate Assembly  Swingaway footrest shown. Locknut Footplate FIGURE 4 Replacing Heel Loop ® ® Invacare Tracer SX5 Wheelchair Part No. 1110550...

  • Page 39: Arms

    To prepare armrest for use, rotate armrest downward, making sure front tube of armrest inserts into arm socket. Push armrest down until release button snaps into arm socket. Ensure armrest is securely locked into arm socket and armrest release button locks into place before using. ® ® Part No. 1110550 Invacare Tracer SX5 Wheelchair...
  • Page 40 (Front or Back of the Armrest Front Tube) Armrest Front Tube Arm Socket Armrest Rear Tube Inside of Armrest Mounting Bracket Chair Armrest Hex Screw Rear Tube Spacer FIGURE 1 Using or Replacing Flip-Back Armrest ® ® Invacare Tracer SX5 Wheelchair Part No. 1110550...

  • Page 41: Adjusting Armrest Height

    Lock the armrest by pressing the height adjustment lever into the down (vertical) position when the desired armrest height is achieved. Repeat STEPS 1-3 for other armrest. Unlocked (Horizontal) FIGURE 2 Adjusting Armrest Height ® ® Part No. 1110550 Invacare Tracer SX5 Wheelchair...

  • Page 42: Seat And Back

    Install the locknut onto the hex screw. Secure the hex screw to prevent Inside of Wheelchair Frame it from backing out and torque the locknut to 60-80 inch pounds. Wheelchair FIGURE 1 Installing the Back Canes ® ® Invacare Tracer SX5 Wheelchair Part No. 1110550...

  • Page 43: Replacing Back Upholstery

    Ensure positioning of seat positioning strap (if used). Refer to Seat Installing the Seat Positioning Strap on page 77. Upholstery Install new seat upholstery by reversing STEPS 1-2. Wheelchair Frame FIGURE 3 Replacing Seat Upholstery ® ® Part No. 1110550 Invacare Tracer SX5 Wheelchair...

  • Page 44: Adjusting Seat Depth

    Refer to Replacing Seat Upholstery on page 43. Seat Extension Tube Install plug buttons into the ends of the seat extension spacers. FIGURE 4 Adjusting Seat Depth ® ® Invacare Tracer SX5 Wheelchair Part No. 1110550...

  • Page 45: Adjusting The Seat Width

    Detail "B" for hardware orientation. Repeat for opposite crossbrace. Securely tighten. Install the new back and seat upholstery onto the wheelchair. Refer to Replacing Back Upholstery on page 43 and Replacing Seat Upholstery on page 43. ® ® Part No. 1110550 Invacare Tracer SX5 Wheelchair...
  • Page 46 14 inch 18 INCH DO NOT USE 16 INCH 18 inch 16 inch 18 INCH DO NOT USE 20 INCH 20 inch 22 INCH 22 inch FIGURE 5 Adjusting the Seat Width ® ® Invacare Tracer SX5 Wheelchair Part No. 1110550...
  • Page 47 Button Screw (STEPS 3,8) Button Screw Crossbrace (STEPS 2,7) Saddle (STEPS 3,8) Locknut Crossbrace Wheelchair (STEPS 3,8) Saddle (STEPS Frame 3,8) See Detail “B” See Detail “A” FIGURE 6 Adjusting the Seat Width ® ® Part No. 1110550 Invacare Tracer SX5 Wheelchair...
  • Page 48 Washers Washer Washer Coved Washer Locknut Washer DETAIL “A” Crossbraces Coved Wheelchair Frame Washers Hex Screw DETAIL “B” - CROSSBRACE Washer HARDWARE (STEPS 4,5) Crossbrace Saddle FIGURE 7 Adjusting the Seat Width ® ® Invacare Tracer SX5 Wheelchair Part No. 1110550...

  • Page 49: Rear Wheels

    For this procedure, refer to FIGURE 1 on page 50.  If replacing the same size rear wheel, note the mounting position on the wheelchair frame for proper reinstallation of the new rear wheel. ® ® Part No. 1110550 Invacare Tracer SX5 Wheelchair...

  • Page 50: Replacing Rear Wheel Handrim

    Secure the new handrim to the rear wheel with mounting screws. Tighten securely. Reinstall rear wheel to the wheelchair. Refer to Removing/Installing Rear Wheels on page 49. FIGURE 2 Replacing Rear Wheel Handrim ® ® Invacare Tracer SX5 Wheelchair Part No. 1110550...

  • Page 51: Front Casters

    Reassemble by reversing STEPS 1-3. Repeat STEPS 1-6 for the opposite fork assembly. Fork Assembly Adjust the forks. Refer to Adjusting Forks on page 52. FIGURE 1 Installing/Replacing Six/Eight Inch Front Casters/Forks ® ® Part No. 1110550 Invacare Tracer SX5 Wheelchair...

  • Page 52: Adjusting Forks

    Remove the hex screw, washers and locknut that secure the front caster to the fork.  Washers are only used with 8 inch casters with precision bearings. To reinstall the new front caster onto the fork, reverse step 1. ® ® Invacare Tracer SX5 Wheelchair Part No. 1110550...
  • Page 53 9 FRONT CASTERS 6 or 8 inch Locknut Fork Washer Screw (if applicable) Washer Front (if applicable) Caster FIGURE 2 Replacing Front Casters ® ® Part No. 1110550 Invacare Tracer SX5 Wheelchair...

  • Page 54: Anti-Tippers/Wheel Locks

    If so equipped, anti-tippers MUST be attached at all times. Inasmuch as the anti-tippers are an option for 0° or 3° on this wheelchair (You may order with or without the anti-tippers), Invacare strongly recommends ordering the anti-tippers as a safeguard for the wheelchair user.
  • Page 55 2 inch clearance between the bottom of the anti-tipper wheels and the ground/floor MUST be maintained at all times. If the distance between the bottom of anti-tipper wheels and the ground/floor is not 1 to 2 inches, adjust anti-tippers. Refer to Adjusting the Anti-Tippers on page 56. ® ® Part No. 1110550 Invacare Tracer SX5 Wheelchair...
  • Page 56 2 inches, repeat steps 2-5 until the distance is 1 to 2 inches. If the 1 to 2 inch distance cannot be achieved, a different model may be required. Contact an Invacare dealer or qualified technician. ® ® Invacare...

  • Page 57: Using/Adjusting Patient Operated Wheel Locks

    Position wheelchair on a flat, level surface to perform this procedure. Ensure the wheelchair is not moving before engaging the wheel locks. See Detail “A” for instructions on Push-to-Lock. Refer to Detail “B” for instructions on Pull-to-Lock. ® ® Part No. 1110550 Invacare Tracer SX5 Wheelchair...
  • Page 58 Push wheel lock handle away from the tire Pull wheel lock handle backward toward to disengage wheel lock the tire to engage wheel lock Unlocked Position Wheel Lock Locked Position FIGURE 3 Using Patient Operated Wheel Locks ® ® Invacare Tracer SX5 Wheelchair Part No. 1110550...

  • Page 59: Adjusting Patient Operated Wheel Locks

    Wheel Lock Shoe Repeat STEPS 1-7 for the opposite wheel lock. Engage both wheel locks and ensure the occupied wheelchair is held FIGURE 4 Using Patient Operated Wheel Locks in place when pushed. ® ® Part No. 1110550 Invacare Tracer SX5 Wheelchair...

  • Page 60: Seat To Floor

    Remove the rear wheels from the wheelchair. Refer to one of the following procedures: Adult/Hemi Frame Style - Refer to Removing/Installing Rear Wheels on page 49. Recliner Frame Style - Refer to Removing/Installing the Rear Wheels on page 71. ® ® Invacare Tracer SX5 Wheelchair Part No. 1110550...
  • Page 61 (IN INCHES) MOUNTING SIZE POSITION POSITION 20 inch 20 inch BOTTOM MIDDLE 22 inch 24 inch BOTTOM 24 inch MIDDLE 22 inch BOTTOM BOTTOM 20 inch BOTTOM BOTTOM 24 inch BOTTOM ® ® Part No. 1110550 Invacare Tracer SX5 Wheelchair...
  • Page 62 Recliner Frame Style WARNING Tracer SX5 recliner ONLY: Mount the rear wheels in the Rear Wheel Offset Bracket ONLY. NEVER reposition the rear wheels to the forward position, stability of the wheelchair will decrease, and injury or damage may result.
  • Page 63 MOUNTING POSITIONS - TRACER MOUNTING POSITIONS SX RECLINER FRAME STYLE Rearward Mounting Position Forward Mounting Positions (DO NOT USE) Middle Bottom Rear Wheel Offset Bracket FIGURE 2 Changing Seat-to-Floor Height - Recliner Frame Style ® ® Part No. 1110550 Invacare Tracer SX5 Wheelchair...

  • Page 64: Recliner

    Make sure to use proper body mechanics (use your legs) or seek assistance if necessary to avoid injury. ALWAYS engage both wheel locks while reclining or inclining (reverse recline) the wheelchair. ® ® Invacare Tracer SX5 Wheelchair Part No. 1110550...
  • Page 65 To Healthcare Professional/Assistants: The Tracer SX5 Recliner wheelchair MUST be operated by a healthcare professional or assistant when in any reclined position. Make sure the patient is properly positioned in the wheelchair before reclining or inclining (reverse recline) to maintain maximum stability and safety.

  • Page 66: Replacing The Headrest Pillow

    Unfasten straps of headrest pillow from behind headrest upholstery. Remove existing headrest pillow from headrest. Center new/existing headrest pillow onto the front of the headrest upholstery. Pull straps of new/existing headrest pillow around the back canes. ® ® Invacare Tracer SX5 Wheelchair Part No. 1110550...

  • Page 67: Replacing The Headrest/Back Upholstery

    Disengage one side of the spreader bar. Refer to Removing/Installing the Spreader Bar on page 69. To remove and install the bottom two mounting screws of the back upholstery the wheelchair MUST be partially folded.  Refer to Folding/Unfolding the Wheelchair on page 22. ® ® Part No. 1110550 Invacare Tracer SX5 Wheelchair...
  • Page 68 Secure new back upholstery to back canes with the existing twelve mounting screws. Securely tighten. Reengage spreader bar. Refer to Removing/Installing the Spreader Bar on page 69. Headrest Upholstery Mounting Screws Headrest Extension Tube Back Upholstery Mounting Screws Back Cane FIGURE 3 Replacing the Headrest/Back Upholstery ® ® Invacare Tracer SX5 Wheelchair Part No. 1110550...

  • Page 69: Removing/Installing The Spreader Bar

    Ensure the release button fully protrudes out of the hole in the back cane handle. Release Lock Repeat STEPS 1-3 on opposite end of spreader bar. Button Tube FIGURE 4 Removing/Installing the Spreader Bar ® ® Part No. 1110550 Invacare Tracer SX5 Wheelchair...

  • Page 70: Removing And Installing Fixed Height Armrest

    Lock rear armrest by turning the armrest release lever towards the back of the wheelchair. Ensure armrest is locked securely in the arm sockets by gently lifting up. If not locked, repeat STEPS 1-3. ® ® Invacare Tracer SX5 Wheelchair Part No. 1110550...

  • Page 71: Removing/Installing The Rear Wheels

    Rear Wheel Ensure both rear wheels are the same size before Offset Bracket using. Tracer SX5 recliner ONLY: Mount the rear wheels in the Rear Wheel Offset Bracket ONLY. NEVER reposition the rear wheels to the forward Rear Wheel Locknut position, as stability of the wheelchair will decrease, and injury or damage may result.

  • Page 72: Using/Adjusting The Clamp-On Wheel Locks

    For this procedure, refer to FIGURE 7 on page 72. Locked Position The Tracer SX5 Recliner with 24-inch rear wheels uses the disk wheel locks. Refer to Using/Adjusting Patient Operated Wheel Locks on page 57. Ensure the wheelchair is not moving before engaging the wheel locks.
  • Page 73 Lock If wheel locks DO NOT hold the occupied Tire wheelchair in place contact a qualified technician. Rear Wheel FIGURE 8 Using/adjusting the Clamp-On Wheel Locks - Adjusting the Clamp-On Wheel Locks ® ® Part No. 1110550 Invacare Tracer SX5 Wheelchair...

  • Page 74: Options

    Make sure the axle spacer is pointing towards the outside of the wheelchair. Install the two hex screws and locknuts that secure the amputee bracket to the wheelchair. Install the rear wheels onto the wheelchair. Refer to Removing/Installing Rear Wheels on page 49. ® ® Invacare Tracer SX5 Wheelchair Part No. 1110550...
  • Page 75 Adult Right Adult Left Axle Spacer Toward Axle Spacer Toward Outside of Wheelchair Outside of Wheelchair Rear View of Amputee Bracket Hex Screws Hemi Left Hemi Right FIGURE 1 Installing Amputee Bracket ® ® Part No. 1110550 Invacare Tracer SX5 Wheelchair...

  • Page 76: Installing Crutch And Cane Carrier

    Clamp The base cleans easily with any chrome or glass cleaner. The strap can be cleaned with mild soap and water. Locknut FIGURE 2 Installing Crutch and Cane Carrier ® ® Invacare Tracer SX5 Wheelchair Part No. 1110550...

  • Page 77: Installing The Seat Positioning Strap

    ALWAYS wear your positioning strap. Inasmuch as the Seat Positioning Strap is an option on this wheelchair (You may order with or without the seat restraint), Invacare strongly recommends ordering the Seat Positioning Strap as an additional safeguard for the wheelchair user.

  • Page 78: Installing The Wheel Lock Extension Handle

    Install the extension handle over the wheel lock handle (Detail “B”). Detail “B” Detail “A” Wheel Lock Rubber Tip Extension Handle Wheel Lock Handle Wheel Lock Handle Wheel Lock Wheel Lock FIGURE 4 Installing the Wheel Lock Extension Handle ® ® Invacare Tracer SX5 Wheelchair Part No. 1110550...
  • Page 79 NOTES NOTES ® ® Part No. 1110550 Invacare Tracer SX5 Wheelchair...
  • Page 80 Invacare Corporation Canada One Invacare Way 570 Matheson Blvd E Elyria, Ohio USA Unit 8 44036-2125 Mississauga Ontario 800-333-6900 L4Z 4G4 Canada 800-668-5324 www.invacare.com Part No. 1110550 Rev G - 2/11...
