Removing
To remove the drive caddy assembly from the Base Module:
1. Remove the cover plate as described in "Removing and Replacing the
Cover Plate."
2. Disconnect the SCSI cable connectors ( 1 Figure 4) from the controller
SCSI extension cable.
7
4

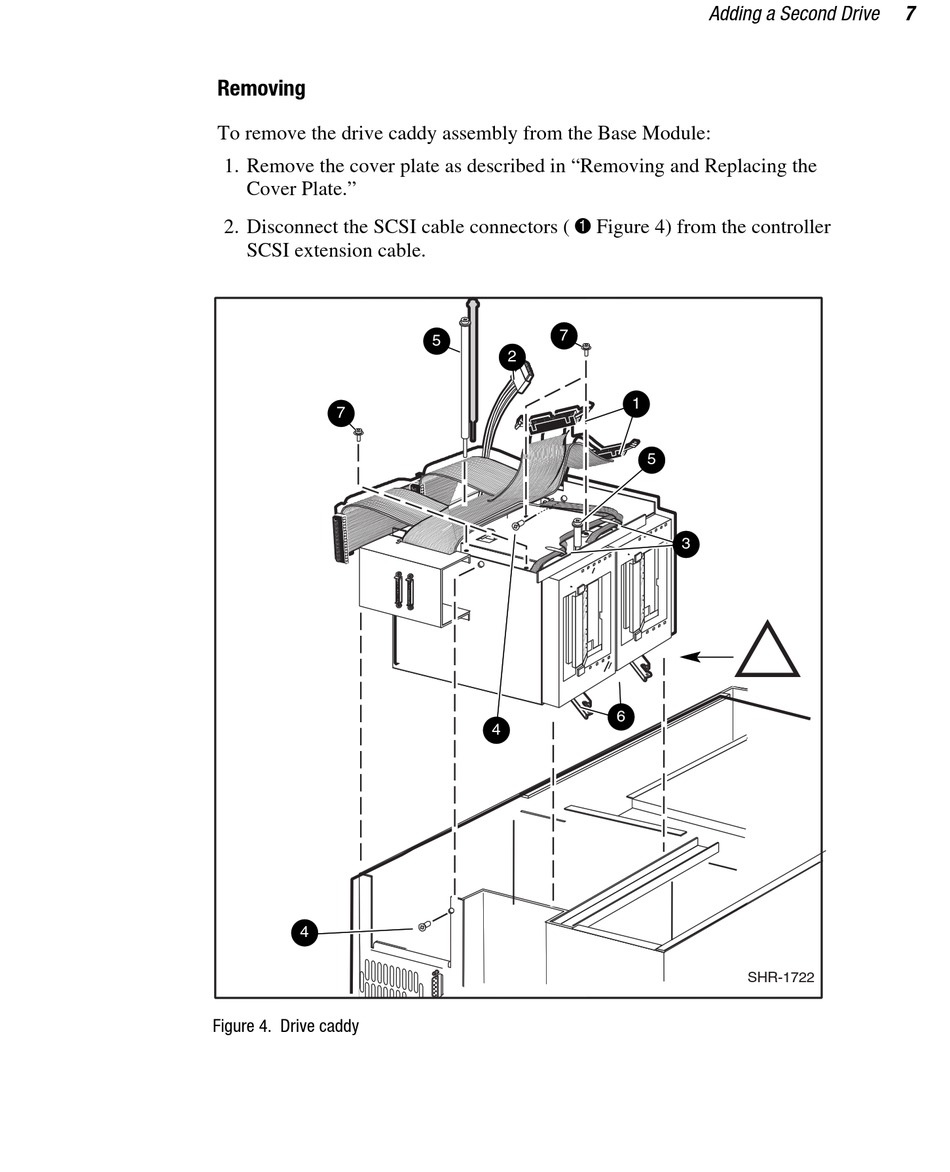

Figure 4. Drive caddy
7
5
2
4
Adding a Second Drive
1
5
3
6
SHR-1722
