Class A EMC Statements EN 62040-2 Some configurations are classified under EN 62040-2 as “Category C2 UPS.” For these configurations, the following applies: This is a category C2 UPS product. In a residential environment, this product may cause radio interference, in which case the WARNING user may be required to take additional measures.

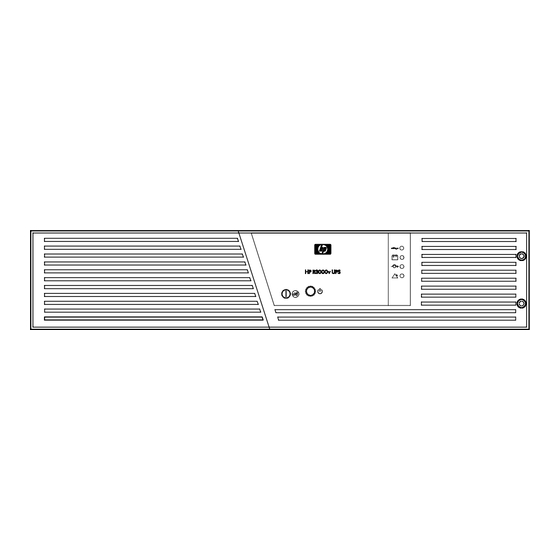

— causing hours of lost productivity and expensive repairs. With the HP R3000v UPS, you can safely eliminate the effects of power disturbances and guard the integrity of your equipment. Providing outstanding performance and reliability, the HP R3000v UPS’s unique benefits include:...
Page 8
INTRODUCTION HP R3000v UPS User Guide 164201731 Rev 1...
Replace batteries with the same number and type of batteries as originally installed in the UPS. If the UPS requires any type of transportation, disconnect the UPS internal batteries before transporting (see page 26). HP R3000v UPS User Guide 164201731 Rev 1...
Page 10
SAFETY WARNINGS HP R3000v UPS User Guide 164201731 Rev 1...
3. Discard or recycle the packaging in a responsible manner, or store it for future use. Place the cabinet in a protected area that has adequate airflow and is free of humidity, flammable gas, and corrosion. HP R3000v UPS User Guide 164201731 Rev 1...
Use the UPS user guide to install both the UPS and the ERM. Rackmount Installation The HP R3000v UPS rackmount cabinet comes with all of the hardware required for installation in a standard EIA or JIS seismic rackmount configuration with square and round mounting holes.
1. Attach the left and right rails to the rear rails as shown in Figure 3. Do not tighten the screws. Adjust each rail size for the depth of your rack. Rear Rails × 8 Pan-Head Screws (6 places) Left Rail Right Rail Figure 3 Attaching the Rails HP R3000v UPS User Guide 164201731 Rev 1...
Page 14
Choose the position that meets your configuration needs. Mounting Bracket × 6 Flat-Head Screws (4 places) Figure 5 Installing the Mounting Brackets (Forward Position Shown) 10. If installing optional cabinets, repeat Steps 8 and 9 for each cabinet. HP R3000v UPS User Guide 164201731 Rev 1...
Page 15
Figure 7. Repeat for any optional cabinets. Rear Stop Bracket × 8 Pan-Head Screw Figure 7 Securing the Back of the Cabinet (Optional) 14. Continue to “Rackmount Wiring Installation” on page 10. HP R3000v UPS User Guide 164201731 Rev 1...
NOTE: A ribbon cable connects the control panel to the UPS. Do not pull on the cable or disconnect it. NOTE: Leave ribbon cable connected. Figure 8 Removing the UPS Right Front Bezel HP R3000v UPS User Guide 164201731 Rev 1...
Page 17
(not supplied) to the ground bonding screw. See Figure 13 on page 15 for the location of the ground bonding screw. 7. Continue to “UPS Initial Startup” on page 14. HP R3000v UPS User Guide 164201731 Rev 1...
Grasp the sides of the bezel. Slide the bezel to the left and then away from the cabinet. Top ERM Cable Knockout ERM Bezel Hook Bottom ERM Cable Knockout (underneath bezel) Figure 11 Removing the ERM Front Bezel HP R3000v UPS User Guide 164201731 Rev 1...
Page 19
NOTE: To ensure maximum battery runtime, configure the UPS for the correct number of ERMs through the HP Value UPS Manager software. Refer to the HP Value UPS Manager manual. 9. Return to Step 4 on page 11 to continue the UPS installation.
10. If optional ERMs are installed, see “Configuring the UPS for ERMs” on page 20 to set the number of installed ERMs. NOTE: The batteries charge to 90% capacity in less than 3 hours. However, to fully charge, HP recommends that the batteries charge for 48 hours after installation or long-term storage.
Chapter 4 Operation This chapter contains information on how to use the HP R3000v UPS, including front panel operation, operating modes, UPS startup and shutdown, and battery settings. Control Panel Functions The UPS has two buttons and four LEDs on the right front bezel (see Figure 14).
OPERATION Operating Modes The HP R3000v UPS front panel indicates the UPS status through the UPS indicators (see Figure 14 on page 17). Normal Mode During Normal mode, the (Power On) indicator illuminates and the UPS is powered from the utility. The UPS monitors and charges the batteries as needed and provides filtered power protection to your equipment.
UPS status from the front panel to view the active alarms. Correct the alarms and restart, if necessary. 4. Verify that the (Power On) indicator is illuminated, indicating that the UPS is operating normally and any loads are powered. The UPS should be in Normal mode. HP R3000v UPS User Guide 164201731 Rev 1...
Configuring the UPS for ERMs To ensure maximum battery runtime, configure the UPS for the correct number of ERMs through the HP Value UPS Manager software. Battery Tests Automatic battery tests run approximately every 30 days. You can also manually perform a battery test by pressing the (Output On) button for half a second.
UPS. The software polls the UPS for detailed information on the status of the power environment. If a power emergency occurs, the software initiates the saving of all data and an orderly shutdown of the equipment. HP R3000v UPS User Guide 164201731 Rev 1...
Page 28
Not used — Transmit to external device Receive from external device Not used — Signal common (tied to chassis) — Not used — Not used — Not used — Not used — HP R3000v UPS User Guide 164201731 Rev 1...
COMMUNICATION HP Value UPS Manager Software Each HP R3000v UPS ships with HP Value UPS Manager software. To install the HP Value UPS Manager software, see the instructions accompanying the CD. After installing the HP Value UPS Manager software, you can configure UPS parameters: 1.
Page 30
If the battery runtime is depleted, the UPS shuts down. The UPS automatically restarts when utility power is restored. Select “No” to stop the UPS from restarting automatically. The UPS can be manually started from the front panel only. HP R3000v UPS User Guide 164201731 Rev 1...
Batteries used beyond expected service life will often have severely reduced runtimes. Replace batteries at least every 5 years to keep units running at peak efficiency. HP R3000v UPS User Guide 164201731 Rev 1...
Figure 18 Removing the UPS Right Front Bezel 3. Disconnect the internal battery connector (see Figure 19). Figure 19 Disconnecting the UPS Internal Batteries 4. Replace the UPS front bezel. HP R3000v UPS User Guide 164201731 Rev 1...
If you store the UPS for a long period, recharge the battery every 6 months by connecting the UPS to utility power. The batteries charge to 90% capacity in less than 3 hours. However, to fully charge, HP recommends that the batteries charge for 48 hours after long-term storage.
Figure 20 Removing the UPS Right Front Bezel 2. Disconnect the internal battery connector (see Figure 21). Battery Cover Plate Internal Battery Connector Figure 21 Disconnecting the UPS Internal Batteries (Shown without ERMs) HP R3000v UPS User Guide 164201731 Rev 1...
Page 35
Slide the bezel to the left until it aligns with the left front bezel. Tighten the two captive screws on the right side of the bezel. 9. Continue to “Testing New Batteries” on page 32. HP R3000v UPS User Guide 164201731 Rev 1...
Page 36
NOTE: A ribbon cable connects the control panel to the UPS. Do not pull on the cable or disconnect it. NOTE: Leave ribbon cable connected. Figure 22 Removing the UPS Right Front Bezel HP R3000v UPS User Guide 164201731 Rev 1...
Page 37
8. If you are installing more than one new ERM, for each additional ERM remove the ERM cable knockout on the top and bottom of the ERM front bezel. See Figure 23 for the location of the ERM cable knockouts. HP R3000v UPS User Guide 164201731 Rev 1...
UPS starts a battery test. During the battery test, the UPS transfers to Battery mode and discharges the batteries for 25 seconds under the existing load. The (On Battery) indicator illuminates. HP R3000v UPS User Guide 164201731 Rev 1...
Updating the UPS Firmware To download the latest version of the UPS firmware, see the HP website http://www.hp.com/go/rackandpower. You can download the latest firmware version and the instructions for installing it.
Page 40
UPS MAINTENANCE HP R3000v UPS User Guide 164201731 Rev 1...
Voltage Range at 100% Load 180–276 Vac Input Connection IEC C20-16A Input Cable Schuko 16A to IEC 320-16A * 100V and 200V are derated by 20%. ** 110V and 208V are derated by 10%. HP R3000v UPS User Guide 164201731 Rev 1...
Page 42
Voltage Waveform Sine wave Harmonic Distortion <3% THD on linear load; <5% THD on non-linear load Transfer Time Online mode: 0 ms (no break) Power Factor Load Crest Factor 3 to 1 HP R3000v UPS User Guide 164201731 Rev 1...
Page 43
Table 10 Battery Internal Batteries Extended Runtime Modules Configuration 72 Vdc (6 12V, 9 Ah) HP R3000v ERM: 72 Vdc (2x6 12V, 9 Ah) Fuses Not applicable (4) 30A/125 Vdc fuses per ERM Type Sealed, maintenance-free, valve-regulated, lead-acid, with minimum 3-year float service life at 25°C (77°F)
Page 44
SPECIFICATIONS HP R3000v UPS User Guide 164201731 Rev 1...
Chapter 8 Troubleshooting The HP R3000v UPS is designed for durable, automatic operation and also alerts you whenever potential operating problems may occur. Usually the alarms shown by the control panel do not mean that the output power is affected. Instead, they are preventive alarms intended to alert the user.
Silencing the Alarm NOTE: The UPS can be configured to deny access to silencing the alarm through the HP Value UPS Manager software (see page 23). Press the (Output On) button on the front panel display to silence the alarm. Check the alarm condition and perform the applicable action to resolve the condition.
This limited warranty (this “Warranty”) applies only to the original End-User (the “End-User”) of any HP T1000v UPS, HP R3000v UPS, and HP R3000v ERM Products (individually and collectively, the “Product”). This Warranty applies even in the event that the Product is initially sold by Company for resale to an End-User.
Page 48
TROUBLESHOOTING HP R3000v UPS User Guide 164201731 Rev 1...
通信 HP Value UPS Manager 软件 每个 HP R3000v UPS 都随附 HP Value UPS Manager 软件。要安装 HP Value UPS Manager 软件,请参见随 CD 提供说明。 安装 HP Value UPS Manager 软件后,即可配置 UPS 参数: 1. 从 Device(设备)菜单中选择 UPS Control Parameters(UPS 控制参数)。 出现 UPS Control Parameters(UPS 控制参数)对话框(参见图 17)。...
