HP 326529-D71 Specification

R5500 xr uninterruptible power system.
Hide thumbs
QuickSpecs
Overview
The leading edge HP UPS R5500 XR Uninterruptible Power System features a slim 3U rack-mount design, offering up to 4500 Watts
of true power (5400 watts international). This new rack-space saving design allows more support for critical rack mountable
equipment. This product compliments the existing R6000 UPS, and brings unprecedented power density and innovative features to
the proven HP family of rack-mountable UPS products.
The new UPS R5500 XR is a high power density solution, designed for customers who want to provide power protection in space-
constrained rack enterprise environments. In addition, this new UPS R5500 XR has the capability to be connected to an optional
Extended Runtime Module (ERM). Customers can further increase the run-time on their UPS R5500 XR by using this ERM. The HP
UPS "XR" models denote "eXtended Runtime" capable" UPS models.

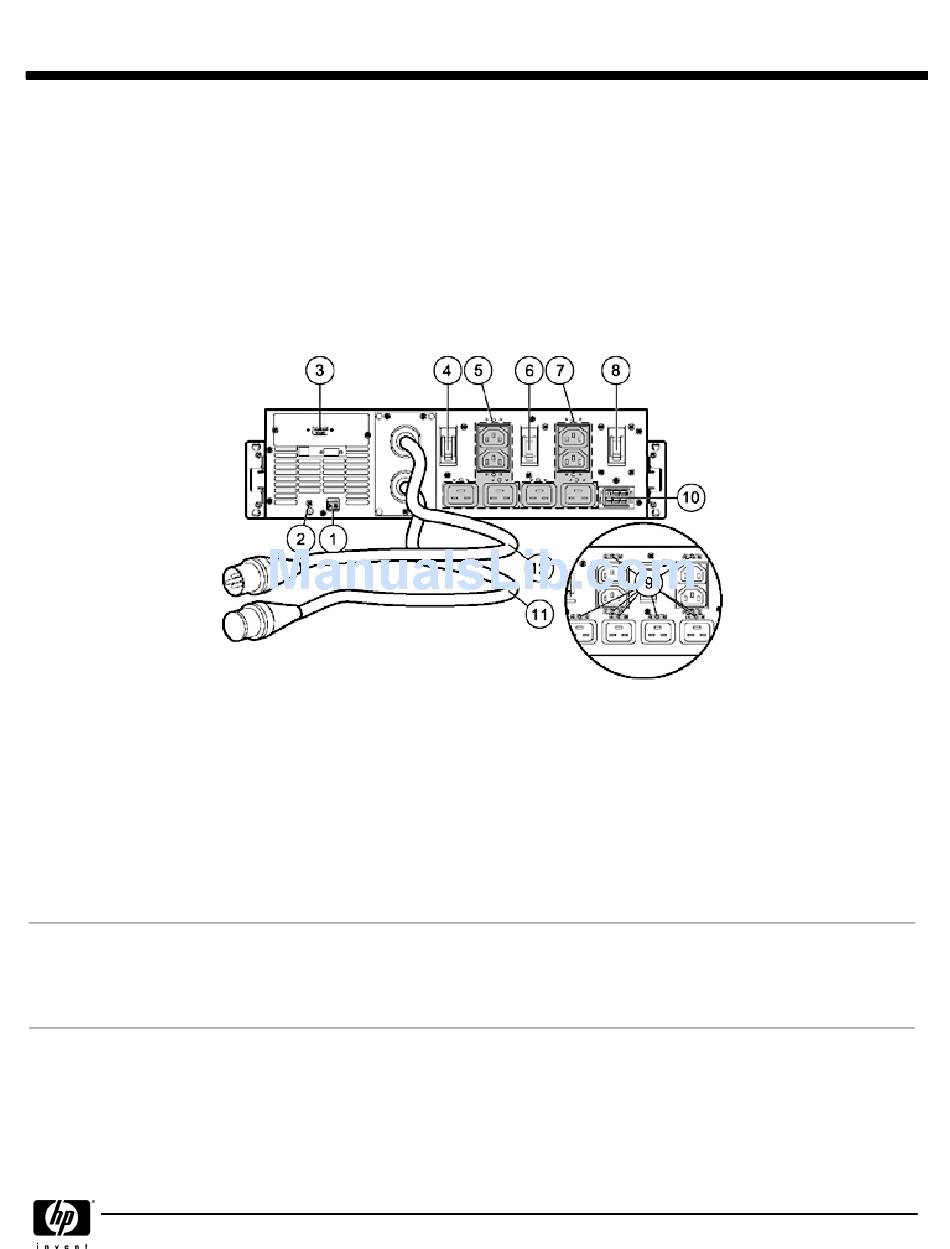

1. REPO port
2. Ground bonding screw
3. Communications port/option slot
4. Load segment 1 circuit breaker
5. Load segment 1 (two IEC-320-C19 receptacles and two IEC-
320-C13 receptacles)
6. Load segment 2 circuit breaker
Models
Models
Models
Models
HP UPS R5500 XR Uninterruptible Power System, High Voltage (US/JPN)
HP UPS R5500 XR Uninterruptible Power System, High Voltage (INTL)
DA - 11871
Worldwide — Version 7 — February 24, 2006
HP UPS R5500 XR Uninterruptible Power System
HP UPS R5500 XR Uninterruptible Power System
HP UPS R5500 XR Uninterruptible Power System
HP UPS R5500 XR Uninterruptible Power System
7. Load segment 2 (two IEC-320-C19 receptacles and two IEC-
320-C13 receptacles)
8. Battery circuit breaker
9. Cord retention clip attach. locations
10. ERM connector
11. PDU output NEMA L6-30 receptacle (NA/JPN) or 32 A IEC-
309 receptacle (INTL) associated with load segment 1
12. Power cord with NEMA L6-30 plug (NA/JPN) or 32 A IEC-309
plug (INTL)
326529-D71
326529-B31
Page 1
