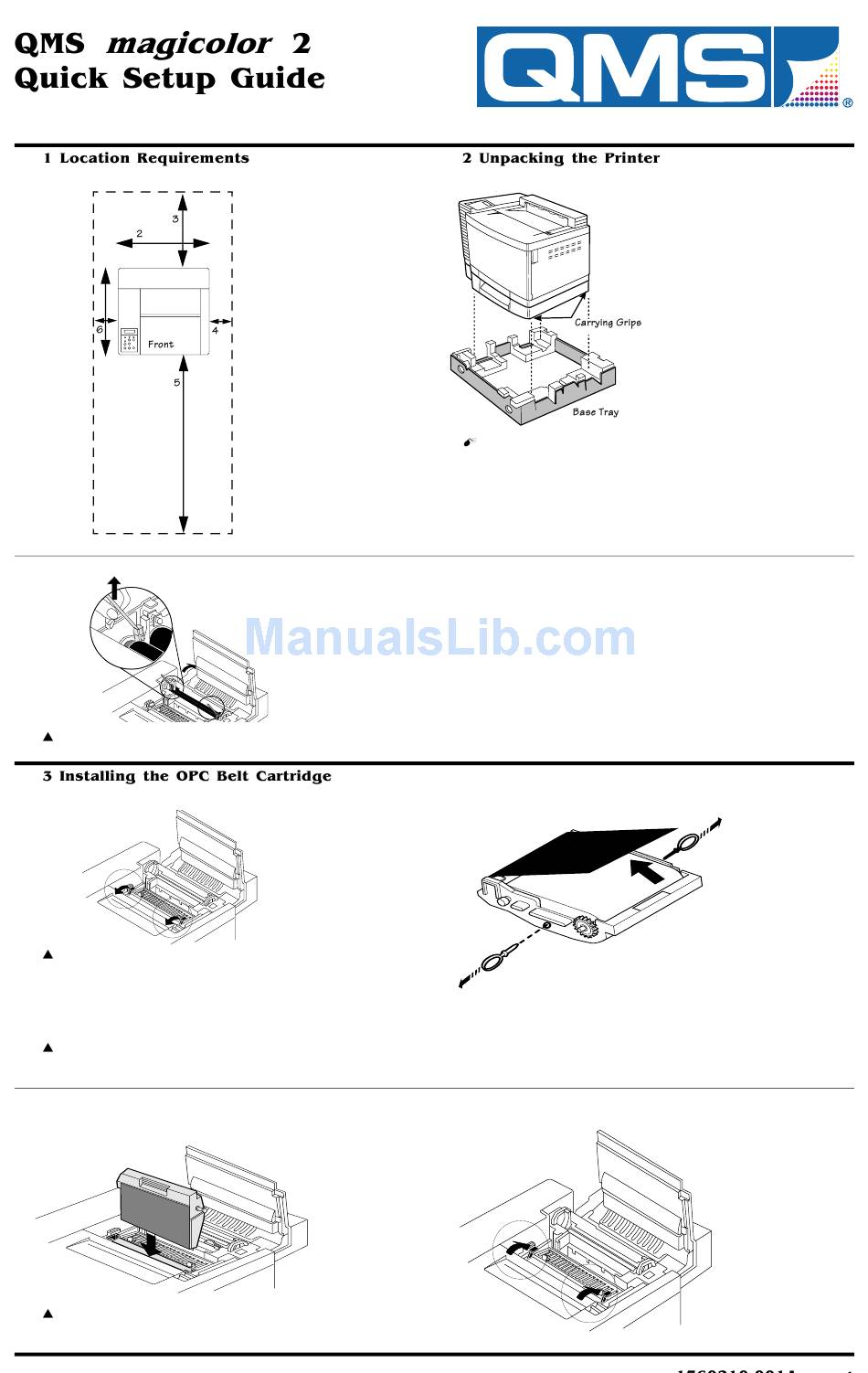

QMS Magicolor 2 Quick Setup Manual

®
1
Caution: It's very important to remove the two shipping spacers from
between the fuser rollers.
Caution : The OPC belt is extremely sensitive to
bright light and direct sunlight. Always leave it in its
protective bag until you're ready to install it. Also,
handle the cartridge carefully. The belt is also
extremely sensitive to hand oils and scratches,
both of which reduce print quality.
Caution : Opening the front cover is necessary as it pulls the toner
cartridges forward slightly to make room for the OPC belt cartridge.
You could damage the OPC belt if you don't do this.
Caution : The cartridge should slide easily into the
printer. Don't force it.
®
1 18 inches
(45 cms)
2 19.5 inches
(50 cms)
3 16 inches
(40 cms)
4 4 inches
(10 cms)
5 28 inches
(70 cms)
6 4 inches
(10 cms)
Open the front,
top, and rear
covers.
Remove the
orange packing
materials and
the tape inside
the printer and
media cassette.
If it's not already
open, open the
printer's front
cover, then the
top cover.
Rotate up the
two lock levers
(one on each
side of the OPC
belt cartridge
opening) to
prepare the
opening for the
cartridge.
Holding the
cartridge above
the printer, align
the guide pins
on the cartridge
with the guide
slots in the lock
levers. The white
gear on the
cartridge goes
to the right, and
the green
surface faces
you.
Gently guide the
cartridge into
the printer.
WARNING! The printer weighs about 64 lbs (29
kg). Don't lift it by yourself.
ACHTUNG! Der Drucker wiegt ca 29 kg; bitte
versuchen Sie niemals, das Gerät alleine
anzuheben oder zu tragen.

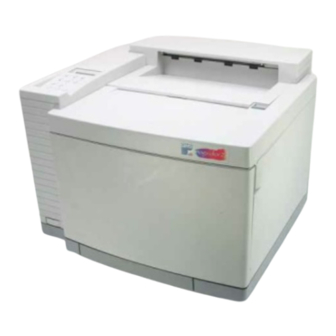

Check the shipment contents:
• Printer
• 250-sheet letter/A4 media cassette
• Consumables starter kit
• Power cord
• Utility Software CD-ROM
• QMS magicolor 2 Print System Getting Started manual and QMS magicolor
2 Documentation CD-ROM
• Warranty and registration card
» Note: Interface cables aren't included in the shipment. If you need cables,
contact your QMS vendor or a local computer store.
If any items are missing or damaged, contact your shipping company or your
QMS vendor.
Unpack the
printer by
unlocking its four
plastic fasteners
and lifting off the
outer box.
Remove its
protective plastic
covering and
any tape
securing the
front, top, and
rear covers.
With another
person's help, lift
the printer from
its base tray
using the
carrying grips on
the bottom
sides.
Place the printer
in its permanent
location.
Remove the
protective sheet
from the
cartridge, and
then pull out the
two orange
tension-release
spacer pins (one
on each side of
the cartridge).
» Note: Save
the spacer
pins in case
you need to
repack the
printer later.
Rotate the two
lock levers.
