File Naming Conventions; Firmware Update Procedure - Convergent Design nanoFlash User Manual

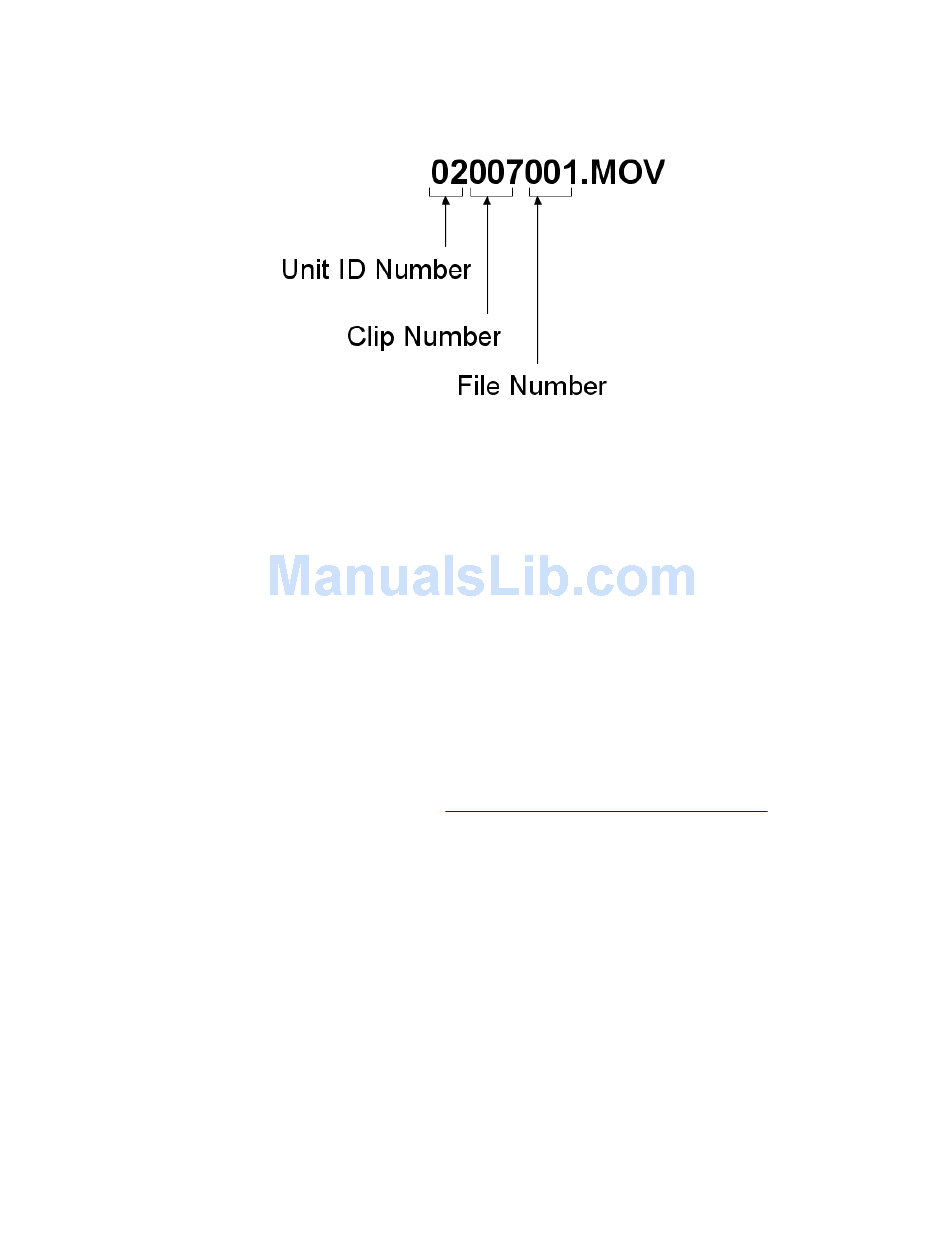

The video/audio file naming convention is shown below. The file name follows an 8.3 format, where 8
characters identify the file name and 3 characters the extension (.mov, .mxf, .mpg)
1. Unit ID Number: Unit ID is assigned under the System Menu, and is used to identify
multiple nanoFlash units if needed. The default is 01.
2. Clip Number: The clip number is incremented every time a recording is started. If the Unit
ID number is incremented, the clip number resets to 001.
3. File Number: File number is incremented whenever the file being recorded for a particular
clip reaches the max file size (~3.5GB). It is reset to 001 if the clip number or Unit ID is
incremented. During a record, the clip number and Unit ID will remain constant as the file
number increments. This will go across several card slots if the record time is long enough.
4. File Name Extension: the possible extensions are .mov (Quicktime), .mxf (MXF files),
.mpg .
Download the update zip file from our website,
Unzip, copy the }UPD{ folder along with its underlying contents onto a qualified CompactFlash
card (via a CompactFlash firewire or usb reader with the card inserted and the reader attached to
computer), at the top level of the card.
Place update card into either CF slot of your nanoFlash.
Wait for screen prompt, you will be directed to press OK to initiate the update.
While updating, the unit can not lose power.
Also, do not remove the update card during the update process.
Wait for "Update succeeded" prompt (about 5 minutes). When this occurs, unplug the unit, remove
the update card, and your unit is ready for operation.
To re-use the update card for capturing video: remove the update directory on a computer and re-
format the card on the nanoFlash.
nanoFlash
File Naming Convention

Firmware Update Procedure

http://www.convergent-design.com/
20
