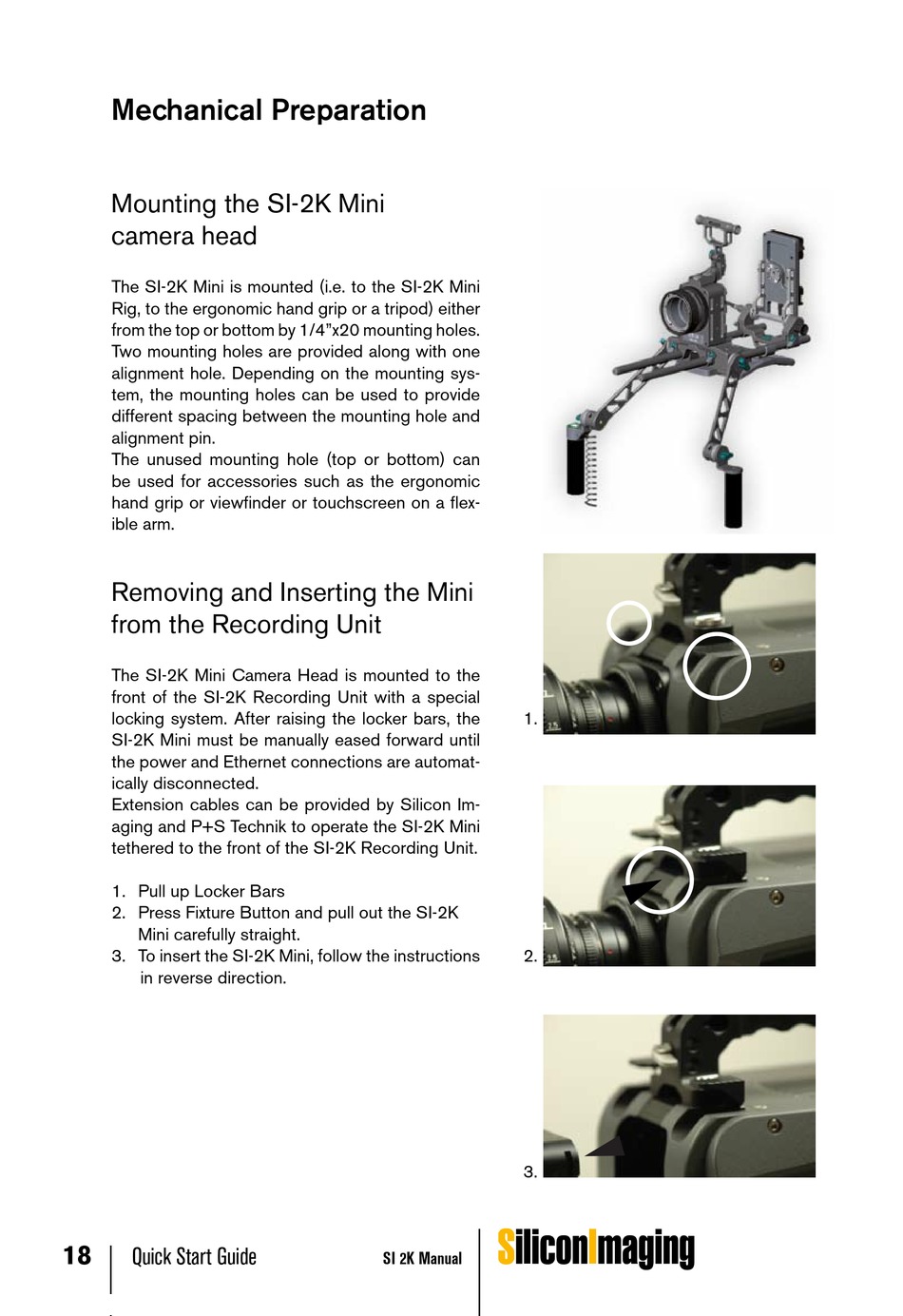

Mechanical Preparation
Mounting the SI-2K Mini
camera head
The SI-2K Mini is mounted (i.e. to the SI-2K Mini
Rig, to the ergonomic hand grip or a tripod) either
from the top or bottom by 1/4"x20 mounting holes.
Two mounting holes are provided along with one
alignment hole. Depending on the mounting sys-
tem, the mounting holes can be used to provide
different spacing between the mounting hole and
alignment pin.
Removing and Inserting
The unused mounting hole (top or bottom) can
be used for accessories such as the ergonomic
the Mini from the
hand grip or viewfinder or touchscreen on a flex-
SI-2K Recorder Unit
ible arm.
Removing and Inserting the Mini
from the Recording Unit
The SI-2K Mini Camera Head is mounted to the
front of the SI-2K Recording Unit with a special
locking system. After raising the locker bars, the
SI-2K Mini must be manually eased forward until
the power and Ethernet connections are automat-
ically disconnected.
Extension cables can be provided by Silicon Im-
aging and P+S Technik to operate the SI-2K Mini
tethered to the front of the SI-2K Recording Unit.
1. Pull up Locker Bars
Press Fixture Button and pull out the SI-2K MINI
2. Press Fixture Button and pull out the SI-2K
carefully straight.
Mini carefully straight.
3. To insert the SI-2K Mini, follow the instructions
To Insert the SI-2K MINI follow the instructions in
in reverse direction. reverse direction.
