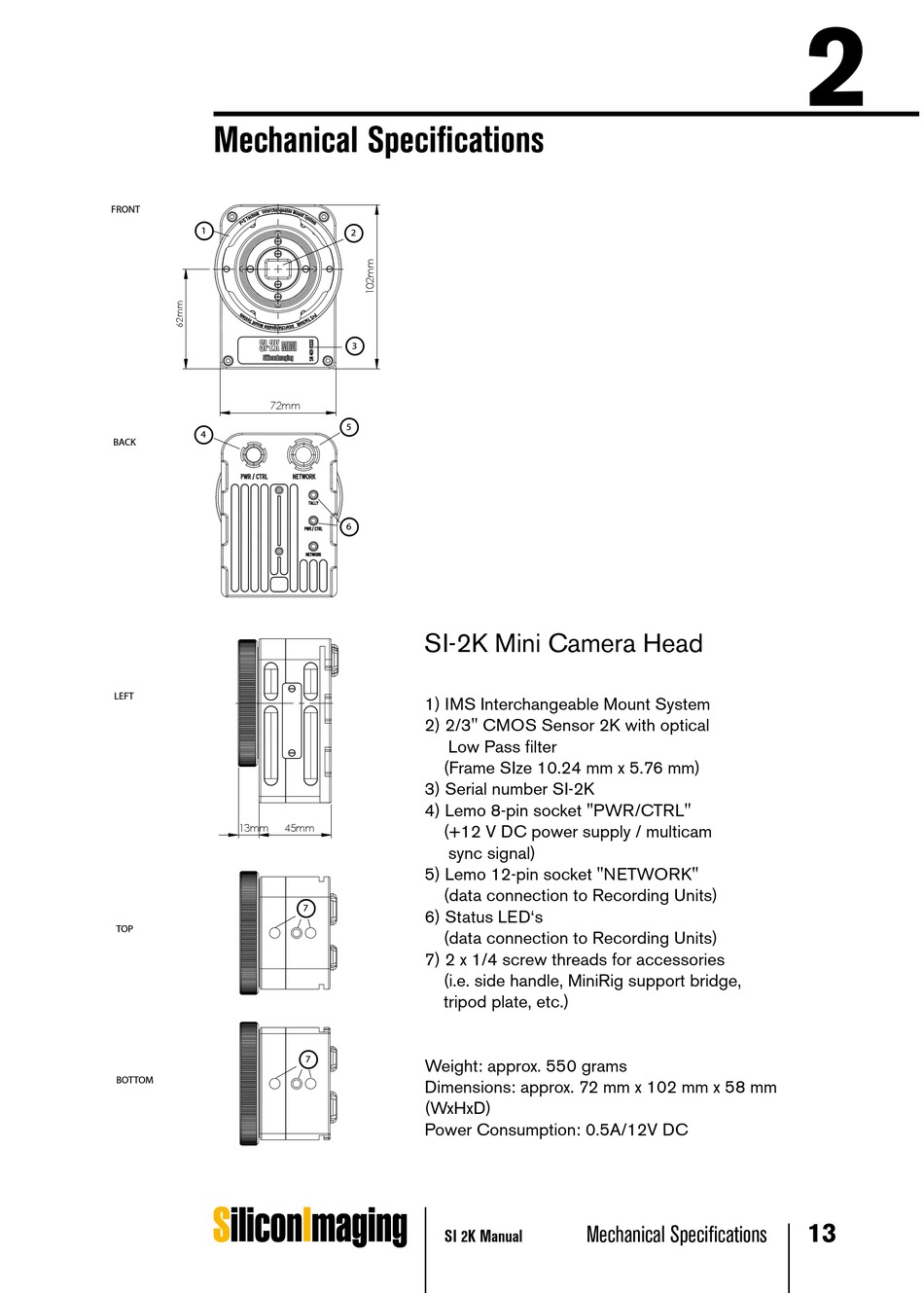

Mechanical Specifications

FRONT
1
72mm
4
BACK
LEFT
13mm
TOP
BOTTOM
SI-2K MINI
2
3
5
6

SI-2K Mini Camera Head

1) IMS Interchangeable Mount System
2) 2/3" CMOS Sensor 2K with optical
Low Pass filter
(Frame SIze 10.24 mm x 5.76 mm)
3) Serial number SI-2K
4) Lemo 8-pin socket "PWR/CTRL"
45mm
(+12 V DC power supply / multicam
sync signal)
5) Lemo 12-pin socket "NETWORK"
(data connection to Recording Units)
7
6) Status LED's
(data connection to Recording Units)
7) 2 x 1/4 screw threads for accessories
(i.e. side handle, MiniRig support bridge,
tripod plate, etc.)
7
Weight: approx. 550 grams
Dimensions: approx. 72 mm x 102 mm x 58 mm
(WxHxD)
Power Consumption: 0.5A/12V DC
SI 2K Manual
SI-2K MINI
IMS Interchangeable Mount System
1
(for Mounts: PL, B4, Nikon, Canon etc.)
2
2/3" CMOS Sensor 2K with Optical Low Pass Filter
3
Serial number SI-2K MINI
Lemo 8-pin Socket „PWR / CTRL"
4
(+12V DC Power Supply / Multicam Sync Signal)
Lemo 12-pin Socket „NETWORK"
5
(Data Connection to Recording Units)
Status LED's
6
2 x 1/4" Screw Threads for Accessories
7
(i.e. Handle, MiniRig Support Bridge, Tripod Plate, etc.)
Weight: approx. 550grams
Dimensions: approx. 72mm x 102mm x 58mm(w x h x d)
Power Consumption: 5A/12V DC
MechanicalSpecifications
