Shure WA500 User Manual

Rack Mount Kit Installation

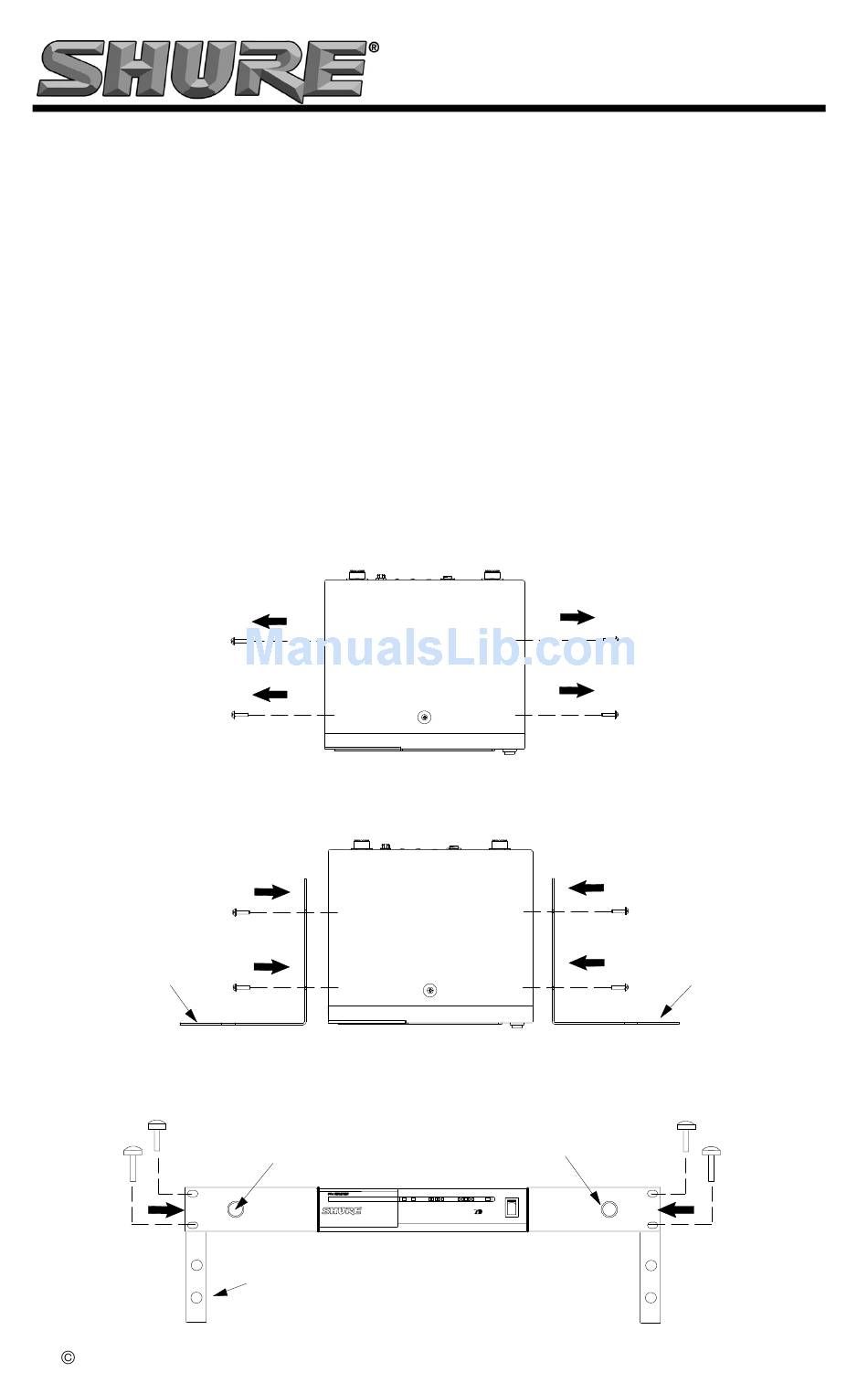

1. Remove and save the screws from
each side of the SC4 receiver, as
shown in Figure 1.
2. Secure the supplied brackets to the
sides of the receiver with the screws
removed in Step 1. See Figure 2.
NOTE: There are four holes in each
bracket. Use the rear holes if the re-
ceiver is to be recessed; use the
front holes to mount receiver flush to
the rack.
3. Insert the supplied plugs into the
BRACKET
2002, Shure Incorporated
27B8402 (Rev. 3)
WA500 SINGLE RACK MOUNT KIT
SC4 RECEIVER
(TOP VIEW)

FIGURE 1

SC4 RECEIVER
(TOP VIEW)

FIGURE 2

ANTENNA
HOLE PLUG
EQUIPMENT RACK

FIGURE 3

Model WA500 User Guide
holes in the front panel.
4. Insert the receiver into the equip-
ment rack and secure the brackets
to the rack with the supplied screws.
See Figure 3.
NOTE: For additional service or
parts information, please contact
Shure's Service department at
1-800-516-2525. Outside the United
States, please contact your autho-
rized Shure Service Center.
FRONT
FRONT
ANTENNA
HOLE PLUG
BRACKET
Printed in U.S.A.
