Hameg HMO3000 Series Technical Data Manual
Hameg HMO3000 Series Technical Data Manual

Hameg HMO3000 Series Technical Data Manual

300mhz/400mhz/500mhz mixed signal oscilloscopes
Hide thumbs Also See for HMO3000 Series:

Advertisement

Quick Links

Mixed Signal Oscilloscopes
300 MHz
400 MHz
500 MHz
|
|
HMO3000 Series

Advertisement

loading
Need help?

Need help?

Do you have a question about the HMO3000 Series and is the answer not in the manual?

Questions and answers

Summary of Contents for Hameg HMO3000 Series

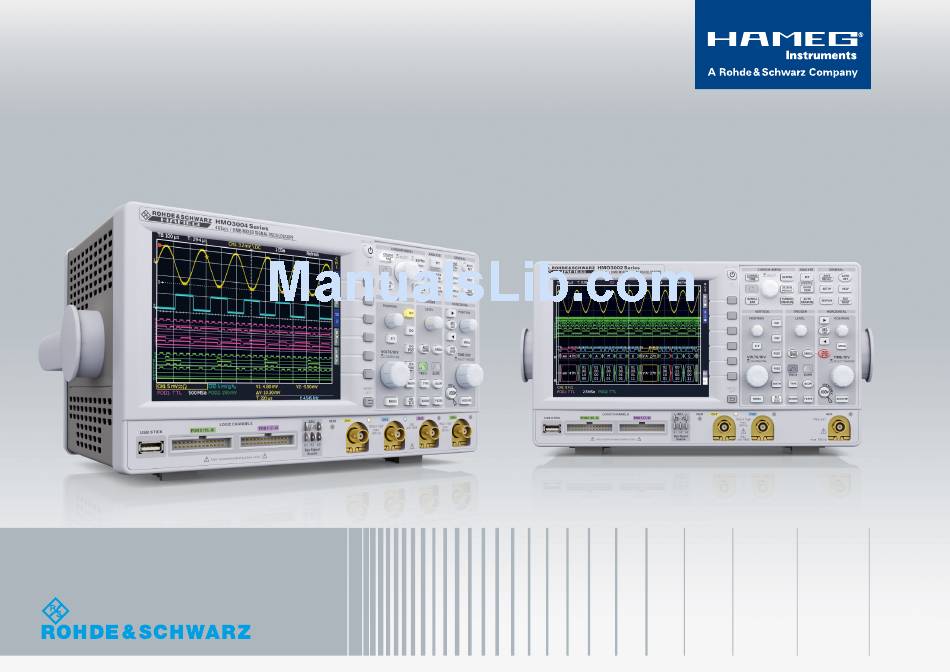

  • Page 1 Mixed Signal Oscilloscopes 300 MHz 400 MHz 500 MHz HMO3000 Series...
  • Page 2 16 most important shows and hides menus values of the measured signal are permanently updated and displayed High sensitivity, multi-functionality and a great price – that‘s what distinguishes the HAMEG HMO3000 oscilloscope series. Setup Intuitive, multi-lingual user menu Help Context-sensitive help...
  • Page 3 Maximum number of logic channels Input impedance 1 MΩ / 50 Ω V/div. @1 MΩ 1 mV/div. to 5 V/div. 300 MHz | 400 MHz V/div. @50 Ω 1 mV/div. to 1 V/div. 4 HAMEG INSTRUMENTS | HMO3000 SERIES More information | www.hameg.com 5...
  • Page 4 Converter) or DACs (Digital Analog Converter) are integrated. These transformer modules include an analog signal on the one side and a digital signal on the other side. As with HAMEG's new HMO3000 series, MSOs allow developers the assessment of the time component for both signal The mixed signal functionality is always included in the HMO3000 types on one monitor.
  • Page 5: Frequency Analysis

    Consequently, an investigation into the frequency domain. Users can choose of all parts of the signal will no longer be possible. between various measurement windows like the Figure 5 8 HAMEG INSTRUMENTS | HMO3000 SERIES More information | www.hameg.com 9...
  • Page 6: Serial Bus Analysis

    16.5 cm (6.5") VGA Color TFT HDTV 720p, HDTV 1080i, HDTV 1080p 1 mV, 2 mV ± 0.2 V - 8 div. * sensitivity communication protocols. The new HMO3000 series by HAMEG Instruments Resolution: 640 x 480 Pixel Fields Upper, lower, both 5 mV to 20 mV ±...
  • Page 7: Recommended Accessories

    All data valid at 23°C after 30 minute warm-up. duty cycle HZO51 HZO51 AC/DC current probe 100/1000 A, DC to 20 kHz AC/DC current probe 100/1,000 A, DC to 20 kHz 12 HAMEG INSTRUMENTS | HMO3000 SERIES More information | www.hameg.com 13...
  • Page 8 V/div. @ 1 MΩ 1 mV/div. to 10 V/div. V/div. @ 50 Ω 1 mV/div. to 1 V/div. DC-offset ± 0.2V to ± 100V – Component tester ■ Small foot print Built-in component tester Bus signal source 14 HAMEG INSTRUMENTS | HMO3000 SERIES...
  • Page 9 R&S® is a registered trademark of Rohde & Schwarz GmbH & Co. KG HAMEG Instruments® is a registered trademark of HAMEG Instruments GmbH | Trade names are trademarks of the owners 11 / 2013 | © HAMEG Instruments GmbH | 4A-D000-0430 Printed in Germany | Subject to change without notice...
