Bullet Camera User Manual

DJUSTING THE

See Figure 10 and perform the following.

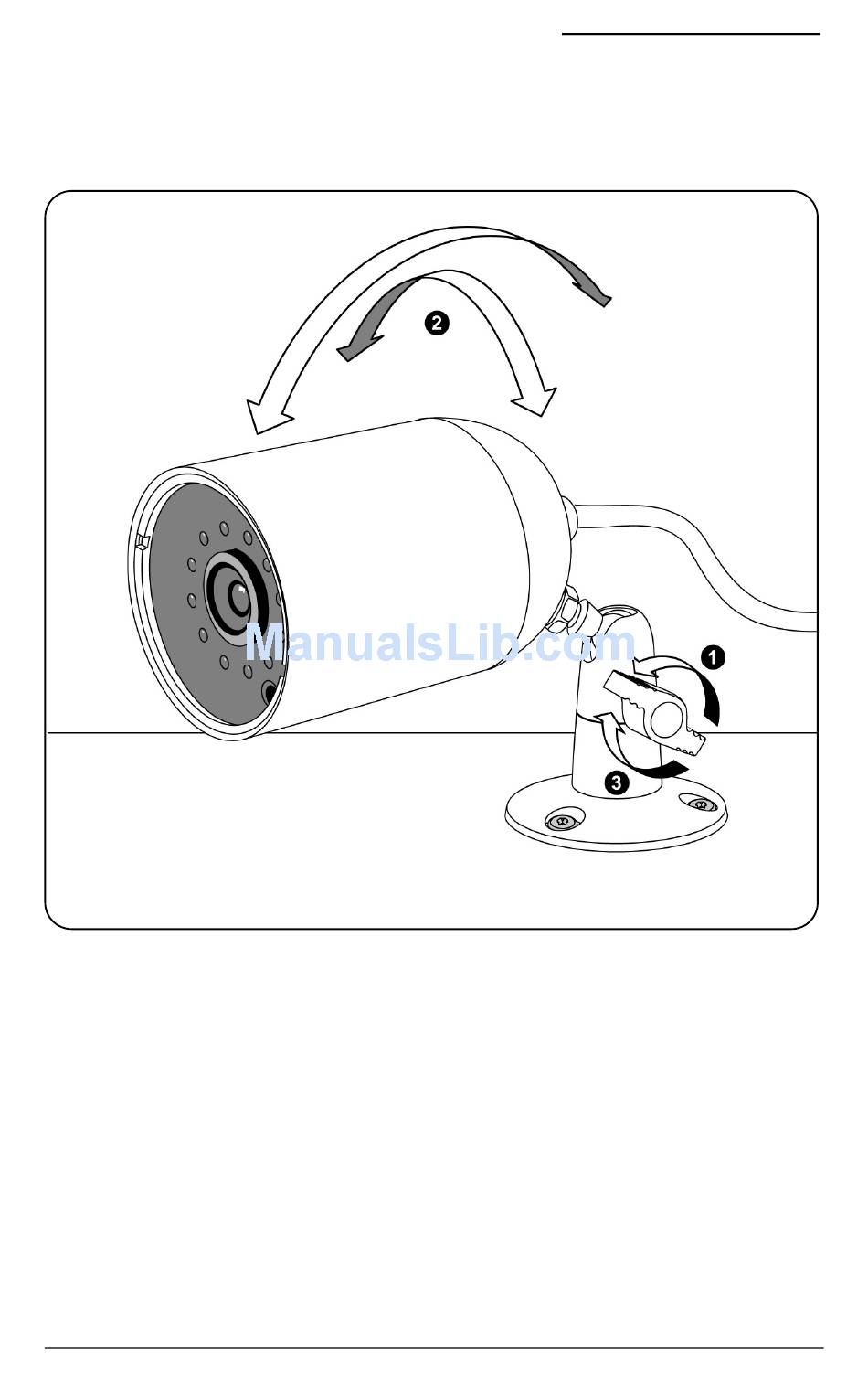

Figure 10. Adjusting the camera angle

Loosen the wing nut.

Swivel the camera on the ball and socket bolt to achieve the proper

angle.

Tighten the wing nut to secure the camera in position.

/ September 2003

1043349A

AMERA

NGLE

Installing the Bracket and Camera
