QuickSpecs

Overview

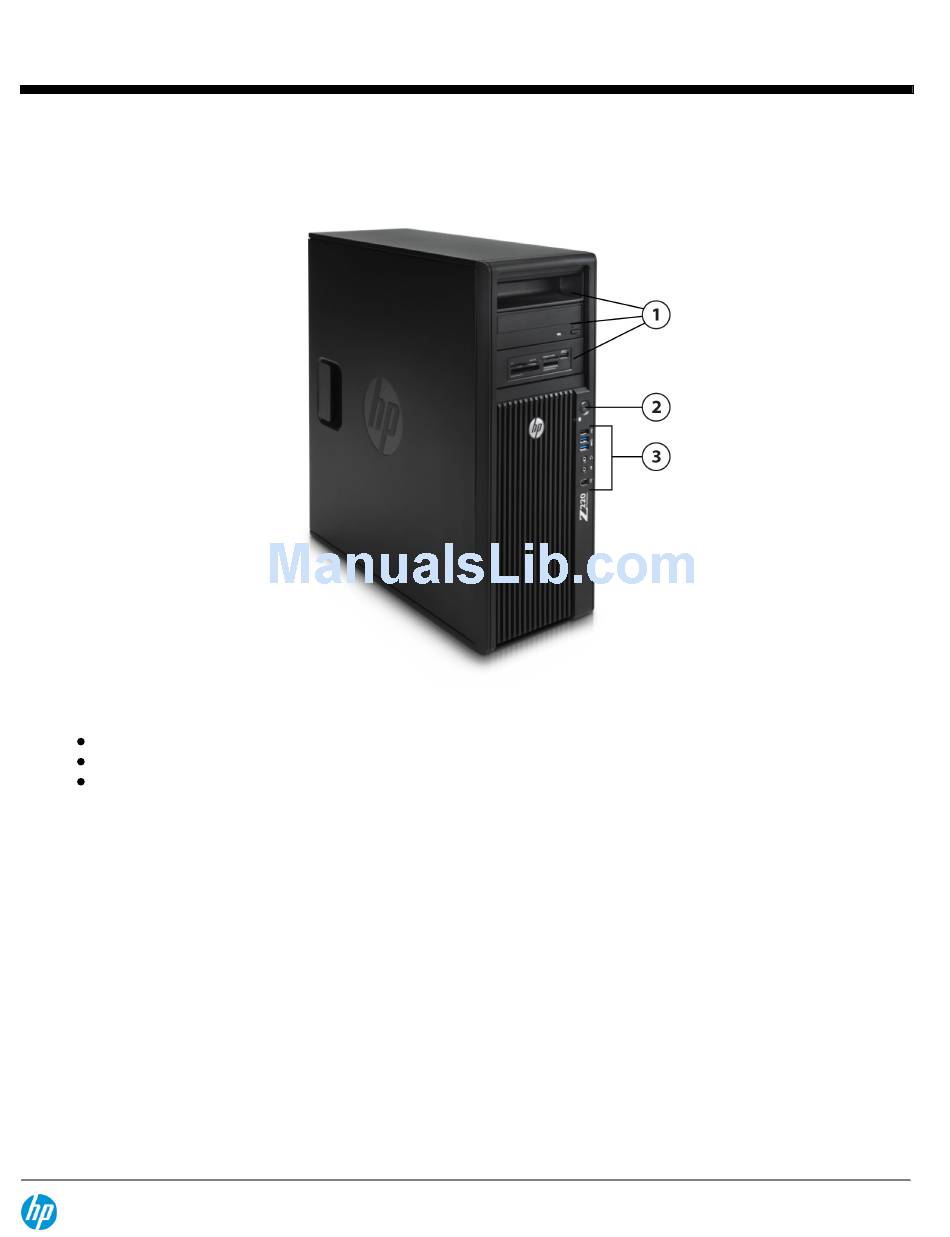

1. 3 External 5.25" bays; in top to bottom order:
HP Z220 CMT handle (optional)
DVD-RW optical drive (optional)
22-in-1 Media Card Reader (optional)
2. Power button
3. Front I/O (in top to bottom order): 1 USB 2.0 port, 2 USB 3.0 (blue) ports, Headphone, Microphone, optional IEEE 1394a port.
DA - 14286 Worldwide — Version 20 — November 21, 2013
Page 1
