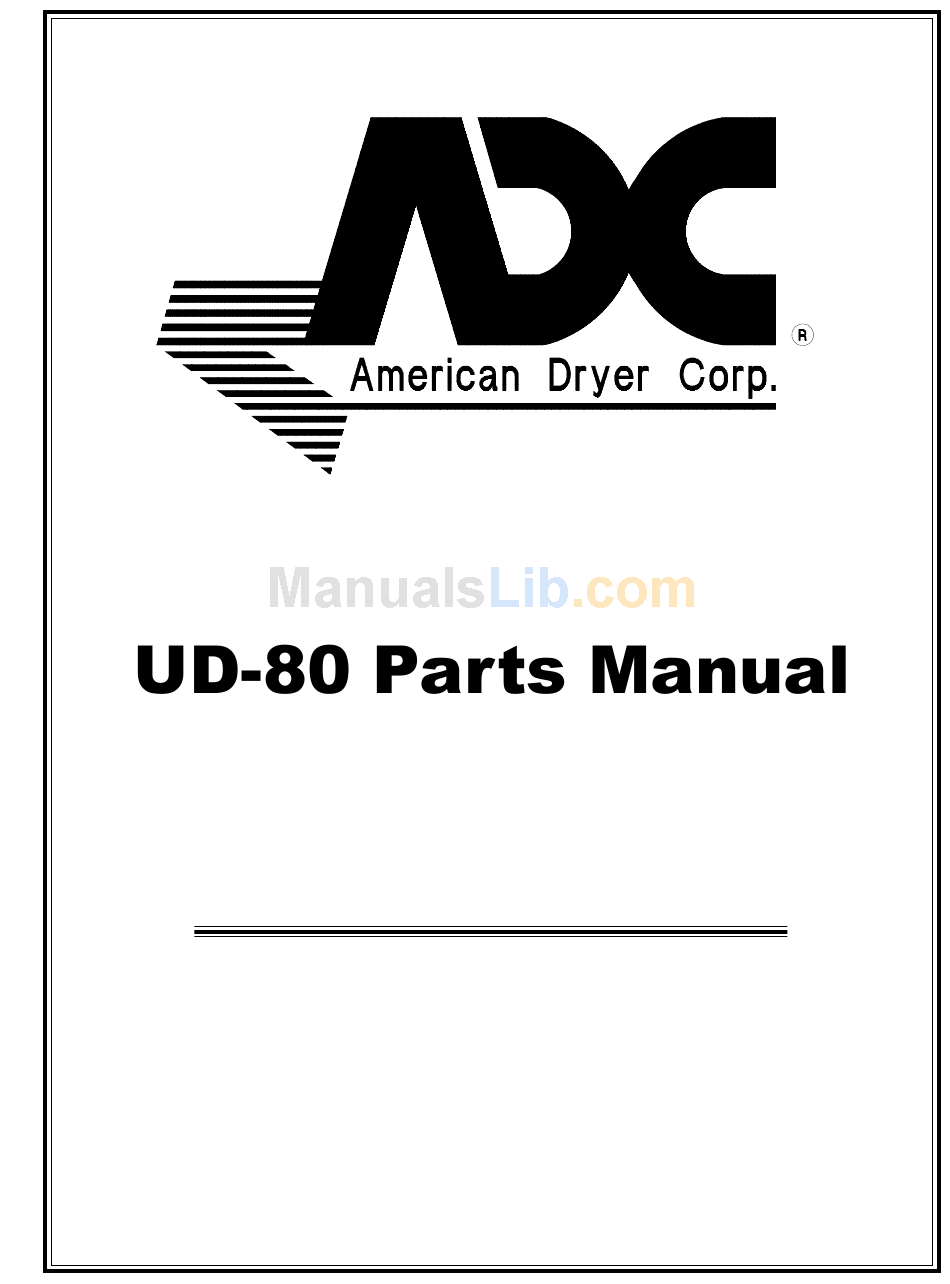

American Dryer Corp. UD-80 Parts Manual

24 vac phase 5 1993/1994
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
24 VAC Phase 5
1993/1994
American Dryer Corporation
88 Currant Road
Fall River, MA 02720-4781
Telephone: (508) 678-9000 / Fax: (508) 678-9447
E-mail: techsupport@amdry.com
www.amdry.com
ADC Part No. 450134

Advertisement

Table of Contents
loading

Related Manuals for American Dryer Corp. UD-80

Summary of Contents for American Dryer Corp. UD-80

  • Page 1 24 VAC Phase 5 1993/1994 American Dryer Corporation 88 Currant Road Fall River, MA 02720-4781 Telephone: (508) 678-9000 / Fax: (508) 678-9447 E-mail: techsupport@amdry.com www.amdry.com ADC Part No. 450134...
  • Page 2 Ne pas entreposer ni utiliser d’essence ni d’autres vapeurs ou liquides inflammables à proximité de cet appareil ou de tout autre appareil. factory. When ordering replacement parts from at +1 (508) 678-9447 or telephone your order directly to the UD-80 Parts...

  • Page 3: Table Of Contents

    Table of Contents High Security Control Door Assembly ... 2 Lint Drawer/Door Assembly ... 3 Lint Drawer/Lint Coop Assembly ... 4 Lint Drawer Switch Assembly ... 5 Phase 5 OPL Microprocessor Control Panel Assembly ... 6 Phase 5 OPL Microprocessor Control Box Assembly ... 7 Front Panel Assembly ...

  • Page 4: High Security Control Door Assembly

    Illus. No. Part No. Qty. Description 160017 Special Dummy Lock ONLY 160016 Lock Cam ONLY 112312* UniDryer 881053* ADC Logo with Tape (for ALL Coin Models Only) 881052* Metal ADC Logo with Tape (for ALL OPL Models Only) 870011 Logo Double Tape Kit ONLY 800020** High Security Control Door Assembly (includes illus.

  • Page 5: Lint Drawer/Door Assembly

    Lint Drawer/Door Assembly Illus. No. Part No. Qty. Description 880826 Lint Door Assembly (includes illus. nos. 1 and 3 through 5) 880840 Lint Drawer Assembly 150201 #10-32 x 1/4” Phillips TEK Screw 102307 Trim Bumper Gasket 180212 Mid Trim Kick Plate 117604 Neoprene Sponge Tape (sold by the foot) 150309...

  • Page 6: Lint Drawer/Lint Coop Assembly

    Illus. No. Part No. Qty. Description 881017 Lint Back Cover 881018 Felt Stiffener 881019 Felt Retainer 881020 Wrapper Middle Support 115993 Lint Drawer Felt 154200 5/32” Pop Rivet 881021 Right Side Lint Wall 150300 #10 x 1/2” Hex Washer TEK Screw 323626 Temperature Sensor Bracket ONLY (refer to Sensor Bracket Assembly on page 22)

  • Page 7: Lint Drawer Switch Assembly

    Lint Drawer Switch Assembly Illus. No. Part No. Qty. Description 323635 Lint Drawer Switch Cover 122116 Lint Drawer Switch 151001 #8-32 Pal Nut 121405 Large Rubber Grommet 450134-7 www.amdry.com...

  • Page 8: Phase 5 Opl Microprocessor Control Panel Assembly

    Phase 5 OPL Microprocessor Control Panel Assembly Illus. No. Part No. Qty. Description 112535 OPL English Keyboard Label Assembly 112276 OPL Stick-on Labels (English Only) ... Not Illustrated 112275 OPL Stick-on Labels (Spanish, Italian, and Hebrew) ... Not Illustrated 112277 3-Language OPL Stick-on Labels (English, Spanish and Hebrew) ...

  • Page 9: Phase 5 Opl Microprocessor Control Box Assembly

    Phase 5 OPL Microprocessor Control Box Assembly Illus. No. Part No. Qty. Description 141403 24 VAC Transformer (for 60 Hz models Only) 132023 24 VAC Transformer (for 50 Hz models Only) 150300 #10 x 1/2” Hex Washer TEK Screw 120715 30-Position Terminal Block 150002 #6-32 x 1”...

  • Page 10: Front Panel Assembly

    Illus. No. Part No. Qty. Description 880817 Right Hand Insulated Front Panel Assembly Complete (includes illus. nos. 1, 2 and 3) 880816 Left Hand Insulated Front Panel Assembly Complete (includes illus. nos. 1, 2 and 3) 154215 5/32” x 1/4” Pop Rivet 170330 Friction Door Latch 150309...

  • Page 11: Main Door Switch Housing

    Main Door Switch Housing Illus. No. Part No. Qty. Description 152013 #6-32 Hex Nut 153008 #6 Lock Washer 137005 Singe-Pole Door Switch ONLY 121028 Insulated Female Terminal 154281 3/8” Standard Nylon Spacer 800448 12-1/2” Stainless Steel Main Door Hinge Assembly (includes illus.

  • Page 12: Main Door Assembly

    Illus. No. Part No. Qty. Description 881421 Gray Plastic Main Door Assembly Complete with Mechanical Fasteners (includes illus. nos. 1 and 5 through 9) 800448 12-1/2” Stainless Steel Main Door Hinge Assembly 150410 #10-24 x 3/8” Phillips Pan Head Taptite Screw 152014 1/4-20 Free Spin Wash Nut 102353...

  • Page 13: Tumbler/Support Assemblies

    Tumbler/Support Assemblies Illus. No. Part No. Qty. Description 880818* Tumbler ONLY without Felt Collar (includes illus. nos. 1, 2, and 3) 880827 Reversing Tumbler and Support Assembly Complete (includes illus. nos. 1 through 11) 154210 5/32” x 3/16” Pop Rivet 301308 Tumbler Rib ONLY 150500...

  • Page 14: Tumbler Bearing Assembly

    Tumbler Bearing Assembly American Dryer Corp. 450134-7...
  • Page 15 Tumbler Bearing Assembly Illus. No. Part No. Qty. Description 880220 1-3/4” Flange Bearing ONLY 153025 9/16” Lock Washer 152050 9/16-12 Hex Nut 150508 3/8-16 x 3/4” Hex Head Machine Bolt 153005 3/8” Lock Washer 152005 3/8-16 Hex Nut 150600 3/8-16 x 1-1/2” Hex Head Machine Bolt 153004 3/8”...

  • Page 16: Idler Bearing Assembly

    Idler Bearing Assembly American Dryer Corp. 450134-7...

  • Page 17: Idler Bearing Assembly

    Idler Bearing Assembly Illus. No. Part No. Qty. Description 100106 5L-690 V-Belt (idler to tumbler) 101140 14” x 3” Compound Pulley 100114 4L-630 V-Belt (idler to motor) 154301 5/16-18 x 5/16” Allen Setscrew 100705 3/16” x 3/16” x 1-3/8” Key 301850 5/8”...

  • Page 18: Reversing Totally Enclosed, Fan-Cooled (T.e.f.c.) Motor Mount Assembly

    Reversing Totally Enclosed, Fan-Cooled (T.E.F.C.) Motor Mount Assembly American Dryer Corp. 450134-7...
  • Page 19 Reversing Totally Enclosed, Fan-Cooled (T.E.F.C.) Motor Mount Assembly Illus. No. Part No. Qty. Description 100114 4L-630 V-Belt (motor to idler) 100701 3/16” x 3/16” x 1” Key 101130 5/8” x 2-1/2” Motor Pulley (for 60 Hz models Only) 101139 5/8” x 2-3/4” Motor Pulley (for 50 Hz models Only) 120200 3/8”...

  • Page 20: Udg-80 Direct Spark Ignition (Dsi) Upshot Burner Assembly

    UDG-80 Direct Spark Ignition (DSI) Upshot Burner Assembly Illus. No. Part No. Qty. Description 150300 #10 x 1/2” Hex Washer TEK Screw 130401 330° Hi-Limit Thermostat ONLY 323643 Oven Top Cover 323641 Burner Front 323644 Oven Inlet Cover 140838* #3 (Natural Gas) Burner Orifice (for 60 Hz models mfd.
  • Page 21 UDG-80 Direct Spark Ignition (DSI) Upshot Burner Assembly (continued) Illus. No. Part No. Qty. Description 141247 1/2” 2-Port Swage Manifold (for models mfd. as of August 20, 1992) 141246 1/2” 2-Port Manifold (for models mfd. prior to August 20, 1992) 323642 Gas Valve Support Bracket 880822**...

  • Page 22: Uds-80 Air Operated Steam Damper Assembly

    UDS-80 Air Operated Steam Damper Assembly American Dryer Corp. 450134-7...

  • Page 23: Uds-80 Air Operated Steam Damper Assembly

    UDS-80 Air Operated Steam Damper Assembly Illus. No. Part No. Qty. Description 165009 UDS-80 Steam Coil 153002 5/16” Lock Washer 152004 5/16-18 Hex Nut 152002 1/4-20 Hex Nut 153007 1/4” Lock Washer 820321 UDS-80 Steam Damper Hinge Assembly ONLY 803415 UDS-80 Steam Damper Assembly (includes illus.

  • Page 24: Sensor Bracket Assembly

    Illus. No. Part No. Qty. Description 880251 1/4” Temperature Sensor Probe Assembly (includes illus. nos. 1 through 4) 122605 4-Pin Socket Connector ONLY 122701 Socket Terminal ONLY 122801 Pin/Socket Extraction Tool 154007 1/4” Tinnerman Push-on Fastener 150000 #6-32 x 1/4” Right Hand Machine Screw 802174 Sensor Bracket Assembly Complete (includes illus.

  • Page 25: Sail Switch Assembly

    Sail Switch Assembly Illus. No. Part No. Qty. Description 105500 Sail Switch Actuator Rod 319202 Sail Switch Damper (flat) 154002 1/8” Push-On Fastener 802800 Sail Switch Box with Cover and Bracket ONLY 802801 Sail Switch Box Assembly Complete (includes illus. nos. 1 through 4 and 6 through 10) 150300 #10 x 1/2”...

  • Page 26: Microprocessor Reversing Rear Control Box Assembly

    Microprocessor Reversing Rear Control Box Assembly Illus. No. Part No. Qty. Description 322812 Back Electrical Box Component Plate 137060 Arc Suppressor Board ONLY 137013 Nylon Standoff 132431 Reversing Contactor (208/230/240v, 50/60 Hz) – 24 VAC 132432 Reversing Contactor Replacement Coil (208/230/240v, 50/60 Hz) – 24 VAC 150103 #8-32 x 3/4”...

  • Page 27: Top/Back Guard Assemblies

    Top/Back Guard Assemblies Illus. No. Part No. Qty. Description 312527 Outer Top Assembly (for Gas Models Only) 150301 #8-18 x 7/16” Phillips Pan Head TEK Screw 314510 Top Back Guard 150301 #8-18 x 7/16” Phillips Pan Head TEK Screw 322809 Rear Electrical Box Cover 150301 #8-18 x 7/16”...

  • Page 28: Additional Parts Available

    Part No. Description 112039 “Black/White/Green Ground” Label 112280 “Clean Lint Screen” Label 112534 “Phase 5 OPL Program Location Summary” Label 114001 “CAUTION – Exhausted/Lint Screen” Label 114006 “WARNING – Fire Hazards” Label 120802 Red Butt Connector 120902 #74B Wire Nut 120903 Crimp-on Wire Nut 121006...
  • Page 29 Notes 450134-7 www.amdry.com...
  • Page 30 ADC Part No. 450134 7 - 12/27/05 - 0...
